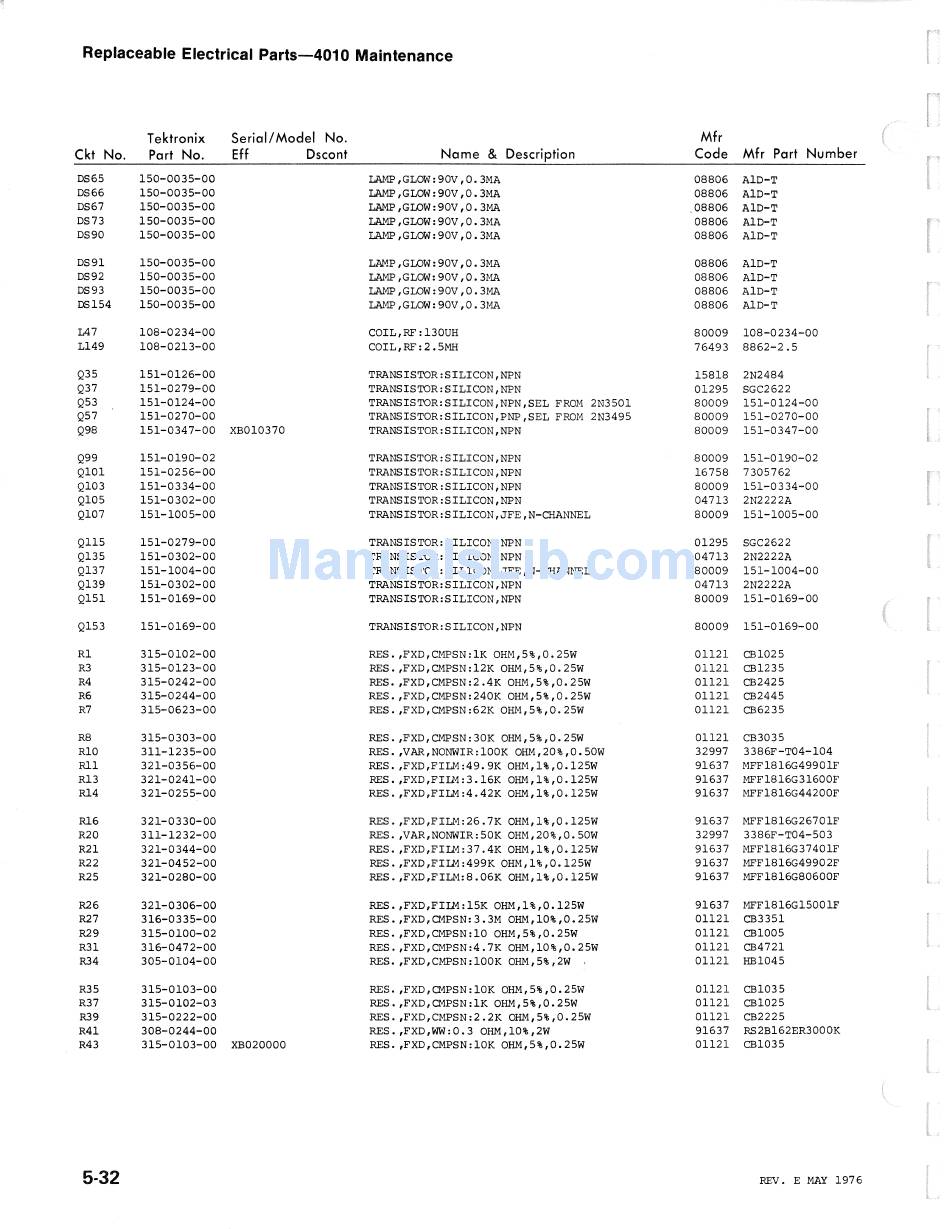

Tektronix 4010 Maintenance Manual page 100

Replaceable Electrical Parts-4010 Maintenance
Tektronix
Serial/Model No. Mfr
Ckt No. Part No.
Eff Dscont Name & Description
Code Mfr Part Number
DS65 150-0035-00
LAMP,GLOW:90V,0.3MA 08806 A1D-T
DS66
150-0035-00 LAMP,GLOW:90V,0.3MA 08806 A1D-T
DS67 150-0035-00
LAMP ,GLOW:90V ,0. 3MA .08806 A1D-T
DS73
150-0035-00 LAMP,GLOW:90V,0.3MA 08806 A1D-T
DS90 150-0035-00
LAMP,GLOW:90V,0.3MA 08806 A1D-T
DS91 150-0035-00
LAMP,GLOW:90V,0.3MA 08806 A1D-T
0592 150-0035-00 LAMP,GLOW:90V,0.3MA 08806
A1D-T
0593 150-0035-00 LAMP,GLOW:90V,0.3MA 08806
A1D-T
05154 150-0035-00 LAMP,GLOW:90V,0.3MA 08806 AlD-T
L47
108-0234-00 COIL,RF:130UH 80009 108-0234-00
L149
108-0213-00 COIL,RF:2.5MH 76493 8862-2.5
Q35 151-0126-00 TRANSISTOR:SILICON,NPN 15818 2N2484
Q37 151-0279-00 TRANSISTOR: SILICON, NPN
01295
SGC2622
Q53 151-0124-00 TRANSISTOR:SILICON,NPN,SEL FROM 2N3501 80009 151-0124-00
Q57 151-0270-00 TRANSISTOR:SILICON,PNP,SEL FROM 2N3495
80009
151-0270-00
Q98 151-0347-00 XB010370 TRANSISTOR:SILICON,NPN 80009 151-0347-00
Q99 151-0190-02 TRANSISTOR:SILICON,NPN 80009 151-0190-02
Q101 151-0256-00 TRANSISTOR:SILICON,NPN 16758 7305762
Q103 151-0334-00 TRANSISTOR:SILICON,NPN 80009 151-0334-00
Q105 151-0302-00 TRANSISTOR:SILICON,NPN 04713 2N2222A
Q107 151-1005-00 TRANSISTOR:SILICON,JFE,N-CHANNEL
80009
151-1005-00
Q115
151-0279-00 TRANSISTOR:SILICON,NPN
01295 SGC2622
Q135
151-0302-00 TRANSISTOR:SILICON,NPN 04713 2N2222A
Q137 151-1004-00 TRANSISTOR:SILICON,JFE,N-CHANNEL 80009 151-1004-00
Q139 15.1-0302-00 TRANSISTOR:SILICON,NPN 04713 2N2222A
Q151 151-0169-00 TRANSISTOR:SILICON,NPN 80009 151-0169-00
Q153 151-0169-00 TRANSISTOR:SILICON,NPN 80009 151-0169-00
R1 315-0102-00 RES.,FXD,CMPSN:1K OHM,5%,0.25W 01121 CB1025
R3 315-0123-00 RES.,FXD,CMPSN:12K OHM,5%,0.25W 01121 CB1235
R4 315-0242-00 RES. ,FXD,CMPSN:2.4K OHM,5%,0.25W 01121 CB2425
R6 315-0244-00
RES.,FXD,CMPSN:240K OHM,5%,0.25W 01121 CB2445
R7 315-0623-00 RES.,FXD,CMPSN:62K OHM,5%,0.25W 01121 CB6235
R8 315-0303-00 RES.,FXD,CMPSN:30K OHM,5%,0.25W 01121 CB3035
R10
311-1235-00
RES. ,VAR,NONWIR:100K OHM,20%,0.50W 32997 3386F-T04-104
R11 321-0356-00 RES. ,FXD,FILM:49.9K OHM,1%,0.125W 91637 MFF1816G4990lF
R13 321-0241-00 RES.,FXD,FILM:3.16K OHM,1%,0.125W 91637 MFF1816G31600F
R14 321-0255-00 RES.,FXD,FILM:4.42K OHM,1%,0.125W 91637 MFF1816G44200F
R16 321-0330-00 RES.,FXD,FILM:26.7K OHM,1%,0.125W 91637 MFF1816G26701F
R20
311-1232-00
RES. ,VAR,NONWIR:50K OHM,20%,0.50W 32997 3386F-T04-503
R21 321-0344-00 RES. ,FXD,FILM:37.4K OHM,1%,0.125W 91637
MFF1816G37401F
R22 321-0452-00 RES.,FXD,FILM:499K OHM,1%,0.125W
91637 MFF1816G49902F
R25 321-0280-00 RES.,FXD,FILM:8.06K OHM,1%,0.125W 91637 MFF1816G80600F
R26 321-0306-00 RES.,FXD,FILM:15K OHM,1%,0.125W
91637 MFF1816G15001F
R27 316-0335-00 RES.,FXD,CMPSN:3.3M OHM,10%,0.25W
01121 CB3351
R29 315-0J.00-02 RES. ,FXD,CMPSN:10 OHM,5%,0.25W
01121
CB1005
R31 316-0472-00 RES.,FXD,CMPSN:4.7K OHM,10%,0.25W
01121 CB4721
R34 305-0104-00 RES. ,FXD,CMPSN:100K OHM,5%,2W
01121 HB1045
R35 315-0103-00 RES. ,FXD,CMPSN:10K OHM,5%,0.25W 01121 CB1035
R37
315-0102-03
RES.,FXD,CMPSN:1K OHM,5%,0.25W 01121 CB1025
R39 315-0222-00
RES.,FXD,CMPSN:2.2K OHM,5%,0.25W 01121 CB2225
R41 308-0244-00 RES.,FXD,WW:0.30HM,10%,2W 91637 RS2B162ER3000K
R43 315-0103-00 XB020000 RES. ,FXD,CMPSN:10K OHM,5%,0.25W 01121 CB1035
