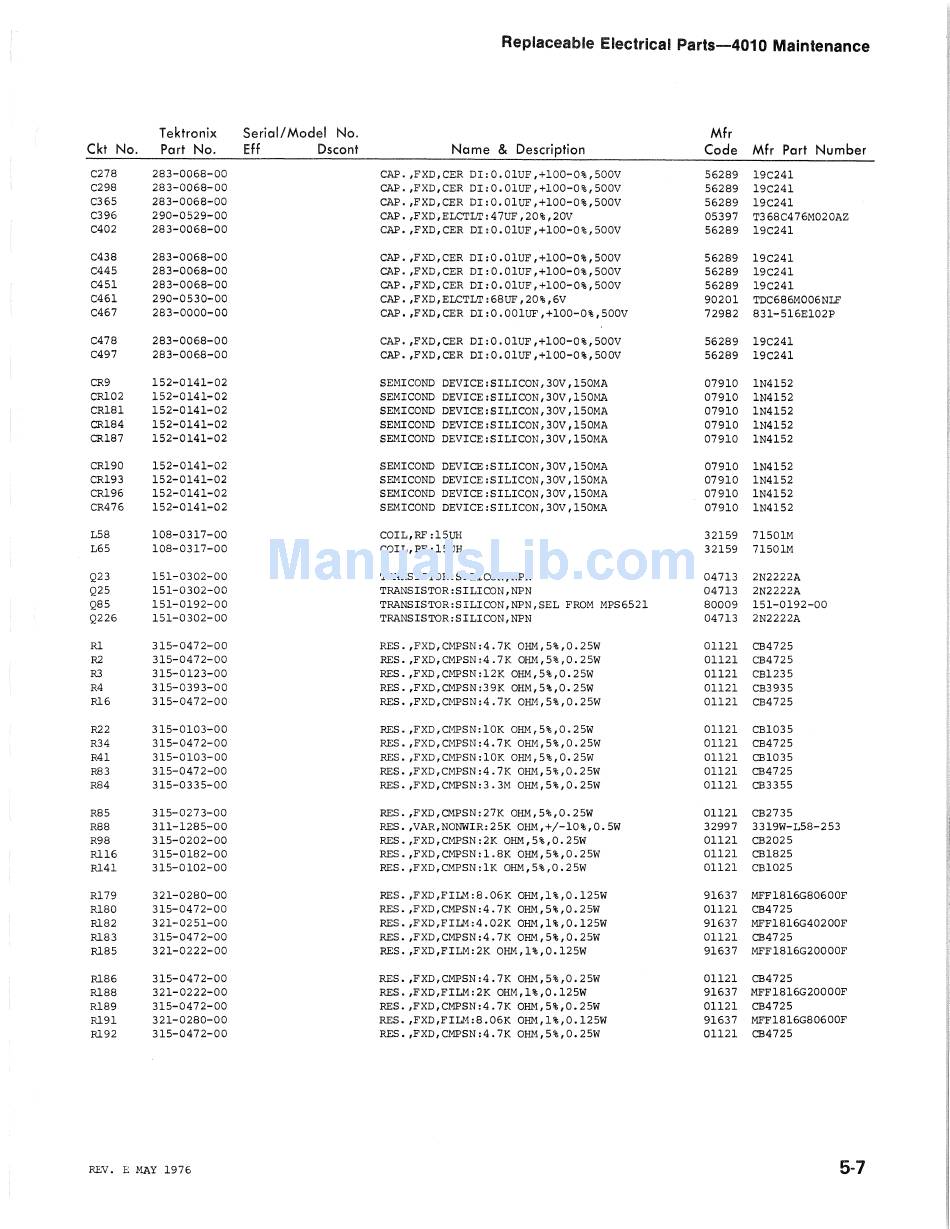

Replaceable Electrical Parts-4010 Maintenance
Tektronix Serial! Model No.
Mfr
Ckt No.
Part No.
Eff Dsconl Name & Description
Code Mfr Part Number
C278 283-0068-00 CAP. ,FXD,CER DI:0.01UF,+100-0%,500V
56289 19C241
C298 283-0068-00
CAP. ,FXD,CER DI:0.01UF,+100-0%,500V
56289 19C241
C365 283-0068-00 CAP. ,FXD,CER DI:0.01UF,+100-0%,500V 56289
19C241
C396 290-0529-00
CAP. ,FXD,ELCTLT:47UF ,20%,20V
05397 T368C476M020AZ
C402 283-0068-00
CAP. ,FXD,CER DI:O.01UF,+100-0%,500V 56289 19C241
C438 283-0068-00 CAP. ,FXD,CER DI:0.OIUF,+100-0%,500V
56289 19C241
C445 283-0068-00 CAP. ,FXD,CER DI:0.OIUF,+100-0%,500V
56289 19C241
C451
283-0068-00 CAP. ,FXD,CER DI:0.OIUF,+100-0%,500V 56289 19C241
C461 290-0530-00
CAP. ,FXD,ELCTLT:68UF,20%,6V
90201 TDC686M006NLF
C467
283-0000-00 CAP. ,FXD,CER DI:0.001UF,+100-0%,500V 72982
831-516E102P
C478
283-0068-00 CAP. ,FXD,CER DI:0.OIUF,+100-0%,500V 56289 19C241
C497 283-0068-00
CAP. ,FXD,CER DI:0.OIUF,+100-0%,500V 56289 19C241
CR9 152-0141-02 SEMICOND DEVICE:SILICON,30V,150MA
07910 IN4152
CRI02 152-0141-02 SEMICOND DEVICE:SILICON,30V,150MA
07910 1N4152
CR181 152-0141-02 SEMICOND DEVICE:SILICON,30V,150MA
07910 IN4152
CR184 152-0141-02 SEMlCOND DEVICE:SILICON,30V,150MA
07910 IN4152
CR187 152-0141-02 SEMICOND DEVICE: SILICON, 30V , 150MA
07910 IN4152
CR190 152-0141-02
SEMICOND DEVlCE:SILICON,30V,150MA 07910 IN4152
CR193 152-0141-02 SEMICOND DEVICE:SILICON, 30V, 150MA
07910 IN4152
CR196 152-0141-02 SEMICOND DEVICE:SILICON,30V,150MA 07910 IN4152
CR476 152-0141-02 SEMICOND DEVICE:SILICON,30V,150MA 07910 1N4152
L58 108-0317-00
COIL,RF:15UH 32159 71501M
L65 108-0317-00 COIL,RF:1SUH
32159 71501M
Q23 151-0302-00 TRANSISTOR:SILICON,NPN
04713
2N2222A
Q25 151-0302-00 TRANSISTOR:SILICON,NPN
04713
2N2222A
Q85 151-0192-00 TRANSISTOR:SILICON,NPN,SEL FROM MPS6521 80009 151-0192-00
Q226 151-0302-00 TRANSISTOR:SILICON,NPN 04713 2N2222A
Rl 315-0472-00 RES. ,FXD,CMPSN:4.7K OHM,5%,0.25W
01121 CB4725
R2 315-0472-00 RES. ,FXD,CMPSN:4.7K OHM,5%,0.25W 01121 CB4725
R3
315-0123-00 RES. ,FXD,CMPSN:12K OHM,5%,0.25W 01121 CB1235
R4 315-0393-00 RES. ,FXD,CMPSN:39K OHM,5%,0.25W 01121 CB3935
Rl6 315-0472-00 RES. ,FXD,CMPSN:4.7K OHM,5%,0.25W 01121 CB4725
R22 315-0103-00 RES. ,FXD,CMPSN:I0K OHM,5%,0.25W 01121 CBI035
R34 315-0472-00 RES. ,FXD,CMPSN:4.7K OHM,5%,0.25W 01121 CB4725
R41 315-0103-00 RES. ,FXD,CMPSN:I0K OHM,5%,0.25W 01121 CBI035
R83
315-0472-00 RES. ,FXD,CMPSN:4.7K OHM,5%,0.25W 01121 CB4725
R84 315-0335-00
RES. ,FXD,CMPSN:3.3M OHM,5%,0.25W
01121 CB3355
R85
315-0273-00 RES. ,FXD,CMPSN:27K OHM,5%,0.25W
01121 CB2735
R88 311-1285-00 RES. ,VAR,NONWIR:25K OHM,+/-10%,0.5W 32997 3319W-L58-253
R98 315-0202-00 RES. ,FXD,CMPSN:2K OHM,5%,0.25W 01121 CB2025
Rl16
315-0182-00 RES.,FXD,CMPSN:1.8K OHM,5%,0.25W 01121 CB1825
R141 315-0102-00 RES. ,FXD,CMPSN:1K OHM,5%,O.25W 01121 CB1025
R179 321-0280-00 RES. ,FXD,FILM:8.06K OHM,1%,0.125W 91637 MFF1816G80600F
R180
315-0472-00 RES. ,FXD,CMPSN:4.7K OHM,5%,0.25W
01121 CB4725
Rl82
321-0251-00 RES.,FXD,FILM:4.02K OHM,1%,0.125W 91637 MFF1816G40200F
Rl83
315-0472-00 RES. ,FXD,CMPSN:4.7K OHM,5%,0.25W
01121 CB4725
Rl8S 321-0222-00 RES. ,FXD,FILM:2K OHM,1%,0.12SW 91637 MFF1816G20000F
Rl86 315-0472-00 RES. ,FXD,CMPSN:4.7K OHM,5%,0.25W 01121 CB4725
Rl88
321-0222-00 RES. ,FXD,FILM:2K OHM,1%,0.125W 91637 MFF1816G20000F
R189 315-0472-00
RES. ,FXD,CMPSN:4.7K OHM,5%,0.25W
01121 CB4725
Rl91
321-0280-00 RES. ,FXD,FILM:8.06K OHM,1%,0.125W 91637 MFF1816G80600F
Rl92 315-0472-00 RES. ,FXD,CMPSN:4.7K OHM,5%,O.25W 01121 CB4725
REV. E MAY 1976
5-7
