4.2.2 Digital Output Settings

The four-channel unit can connect up to 4 output devices, while the eight-channel unit can
connect up to 8 output devices. To select one output device for setup, press the desired
Channel button (CH1 – CH4 for the four-channel unit; CH1 –CH8 for the eight-channel unit)
on the Remote Control.
STATE: Enable the selected output.
NAME: Enter a descriptive name for the output device.
MODE: Set the output mode to GENGERAL, OPEN (N/O); GENERAL, GROUNDED
(N/C); TOGGLE, OPEN (N/O); TOGGLE, GROUNDED (N/C); PULSE, OPEN (N/O);
PULSE, GROUNDED (N/C).
INTERVAL: Specify the pulse duration for the pulse mode from 1 to 60 seconds.
TEST: After finishing the above settings, select this option to see if the output device has
response.
Also see 6.2.1 I/O Control of the Web-based configuration which provides more information
and features of the digital output settings.
62

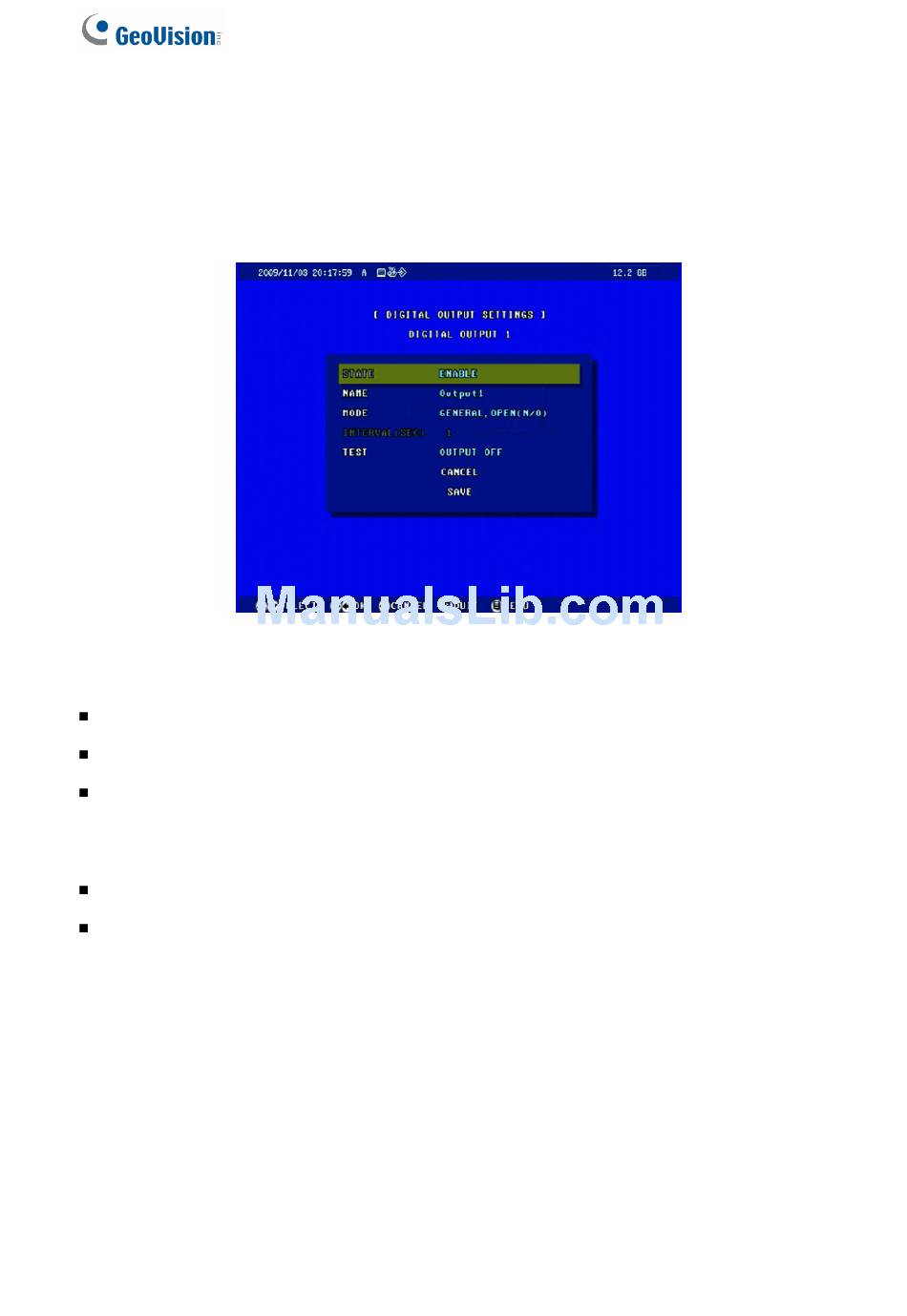

Figure 4-15
