6.3.4 VSM

After a motion or an I/O triggered event, the central monitoring station VSM can get notified by
text alerts. For the live monitoring through VSM, you must already have a subscriber account
on VSM. The GV-Compact DVR V3 can connect up to two VSM simultaneously.
To enable the VSM connection:
1. Activate Link: Enable the monitoring through VSM.
2. Host Name or IP Address: Type the host name or IP address of VSM.
3. Port Number: Type the port matching the Port 2 on VSM. Or keep the default value 5609.
Refer to 11.2 VSM.
4. User Name: Type a valid user name to log into VSM.
5. Password: Type a valid password to log into VSM.
6. Click Apply. The Connection Status should display "Connected" and connected time.
7. To establish connection to a second VSM, click the Connection 2 tab and repeat steps 1
to 6 for settings.

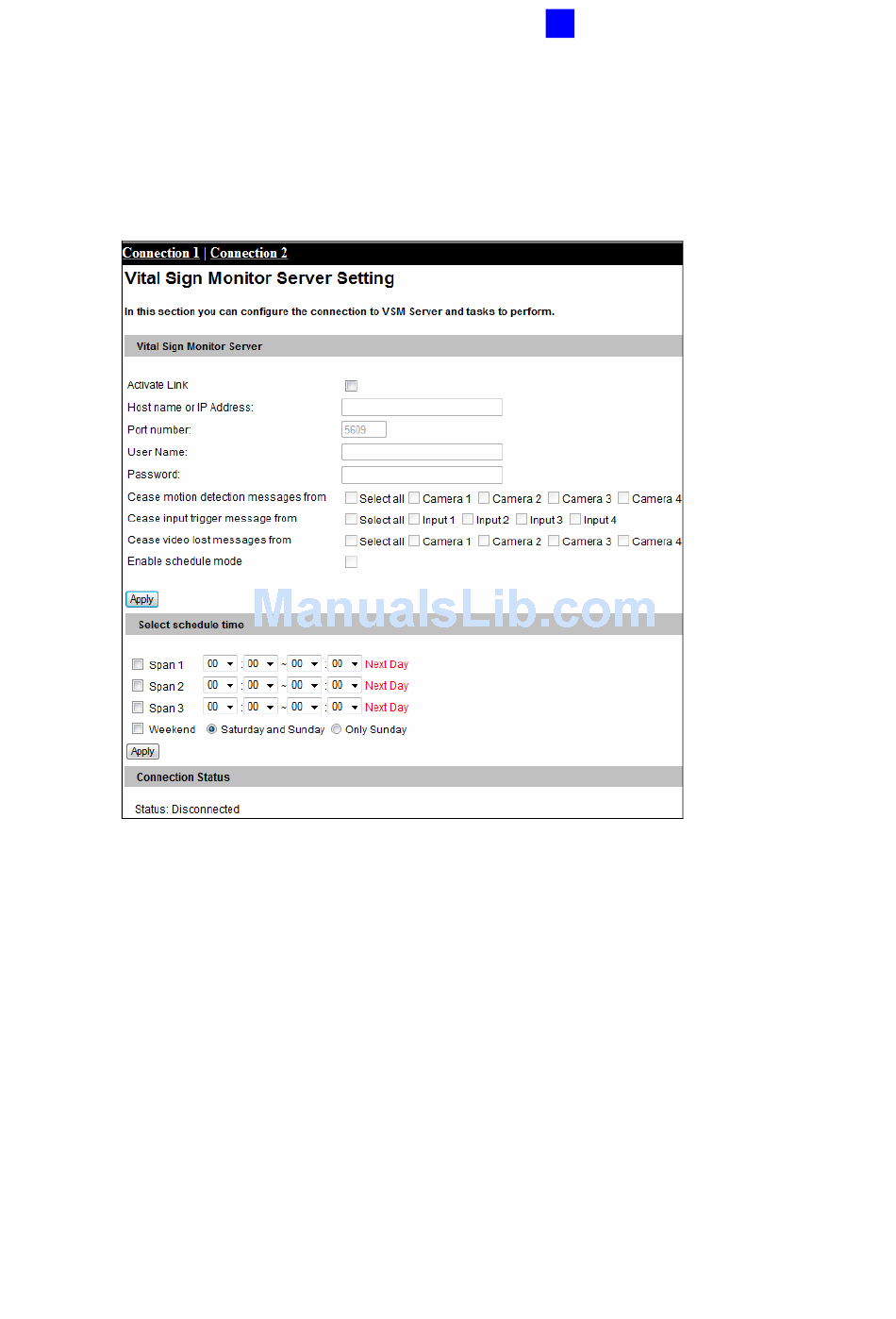

Figure 6-20
Remote Configurations
6
141
