Page 1 GV-Compact DVR V3 User's Manual User's Manual CDVR3-4CHV104-8CHV102-B Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use.
Page 2 GeoVision. Every effort has been made to ensure that the information in this manual is accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind and assumes no responsibility for errors or omissions. No liability is assumed for incidental or consequential damages arising from the use of the information or products contained herein.
Page 3 Preface Welcome to the GV-Compact DVR V3 User’s Manual. The GV-Compact DVR V3 has a series of models designed to meet different needs. This Manual is designed for the following models and firmware version: The Four-Channel Unit Models Model Name Firmware Version GV-LX4C3D1 Standard Models...
Page 4: Table Of Contents
Contents Chapter 1 Introduction ............1 1.1 Features ....................... 2 1.2 Models ......................... 3 1.2.1 The Four-Channel Unit ................3 1.2.2 The Eight-Channel Unit ................4 1.3 Packing List......................5 1.3.1 The Four-Channel Unit ................5 1.3.2 The Eight-Channel Unit ................7 1.4 Options ........................
Page 5 3.6.1 Turning On the Power................45 3.6.2 Turning Off the Power................45 3.7 Formatting Hard Drive ..................46 3.8 Main Screen Overview ..................47 3.9 Basic Operation....................48 3.9.1 Date/Time Adjustment ................48 3.9.2 Recording Operation................48 3.9.3 Search/Playback Operation ..............49 3.9.4 PTZ Operation ..................49 3.9.5 Channel Number and Camera Name............49 3.9.6 Video Backup ..................49 Chapter 4 OSD Menu Configurations ........50 4.1 Channel Settings....................52...
Page 6 4.6.4 Alarm Recording List ................80 4.6.5 Motion Recording List ................80 4.6.6 Time Search ....................80 4.6.7 Advanced Search ..................81 4.7 Network.......................82 4.7.1 Network Status ..................82 4.7.2 Connection Settings.................83 4.7.3 Wireless Settings..................84 4.7.4 Advanced TCP/IP ..................85 4.7.5 UMTS Settings ..................86 4.7.6 DDNS Settings ..................87 4.7.7 Multicast Settings ..................88 4.7.8 Web User Account Info................89 4.8 Advanced......................90...
Page 7 5.3.16 Network Status ..................117 Chapter 6 Remote Configurations ........118 6.1 Video & Motion ....................120 6.1.1 Video Settings ..................120 6.1.2 Motion Detection..................124 6.1.3 Text Overlay ..................125 6.1.4 Visual Automation..................126 6.1.5 VGA Output Settings ................127 6.1.6 Video Channel Source Settings .............127 6.2 Digital I/O & PTZ ....................128 6.2.1 I/O Control .....................128 6.2.2 PTZ Settings..................130 6.2.3 GPS ......................131...
Page 8 6.8.7 ACC Settings ..................179 Chapter 7 Remote Recording and Playback ....180 7.1 Remote Recording ...................180 7.2 Remote Playback .....................180 7.2.1 Playback of Files Recorded on Hard Drive..........181 7.2.2 Playback over Network ................185 7.2.3 Access to the Recorded Files through FTP Server ........186 7.2.4 Playback of Backup Files...............186 7.2.5 Playback of GPS Tracks ................188 Chapter 8 Advanced Applications ........191...
Page 9 Chapter 12 The I/O Terminal Block ........224 12.1 Pin Assignment....................224 12.1.1 The Four-Channel Unit ................224 12.1.2 The Eight-Channel Unit .................225 12.2 Output Devices....................226 12.2.1 The Four-Channel Unit ................226 12.2.2 The Eight-Channel Unit .................227 12.3 Camera Power Supply ..................229 12.3.1 The Four-Channel Unit ................229 12.3.2 The Eight-Channel Unit .................230 Specifications: The Four-Channel Unit ......231 Specifications: The Eight-Channel Unit ......235...
Page 10: Chapter 1 Introduction

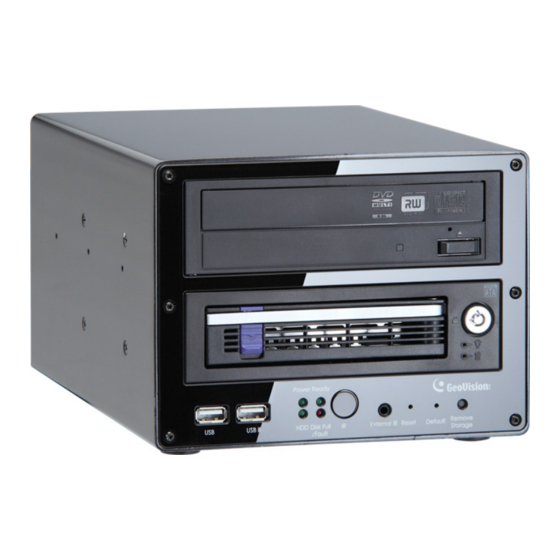

Introduction Chapter 1 Introduction The GV-Compact DVR V3 is a mobile video recorder that comes in the four-channel and eight-channel units. The four-channel unit can simultaneously display real-time images from four cameras, while the eight-channel unit can simultaneously display real-time images from eight cameras.
Page 11: Features
Features • Four-channel / eight-channel video and audio recording • Up to 120 fps at D1 resolution for four-channel / eight-channel units • Independent channel resolution, quality and frame rate settings • VGA output in high resolution (1280 x 1024) •...
Page 12: Models
Introduction 1.2 Models The GV-Compact DVR V3 comes in the four-channel and eight-channel units. Each unit is available in the Standard models and the Anti-Vibration ACC models as listed below. IMPORTANT: Standard and Anti-Vibration ACC models have different internal designs. It is forbidden to connect the Standard model to vehicle power supply.
Page 13: The Eight-Channel Unit
1.2.2 The Eight-Channel Unit Model Name Image Description Equipped with 4 USB GV-LX8CD1 ports and 1 hard drive bay. Equipped with 4 USB Standard GV-LX8CD2 ports and 2 hard drive models bays. Equipped with 4 USB GV-LX8CD2W ports, 1 hard drive bay and 1 DVD-RW drive.
Page 14: Packing List
Introduction 1.3 Packing List If any of the items are missing or damaged, contact your dealer to arrange a replacement. Note: The hard disk is not included in the standard package. 1.3.1 The Four-Channel Unit • Standard Models (GV-LX4C3D1 / GV-LX4C3D2 / GV-LX4C3D2W) •...
Page 15 • Anti-Vibration ACC Model (GV-LX4C3V) • • D-Type Video Cable x 1 D-Type Audio/TV/Spot Monitor Cable x 1 • • Camera Power Cable x 1 Power Cable x 1 • • Shorting Cable x 1 Lock Key x 2 (1 Bay), x 4 (2 Bays) •...
Page 16: The Eight-Channel Unit
Introduction 1.3.2 The Eight-Channel Unit • Standard Models (GV-LX8CD1 / GV-LX8CD2 / GV-LX8CD2W) • • 1 to 5 D-Type Video Cable x 1 6 to 8 D-Type Video/TV/Spot Monitor Cable • • Camera Power Cable x 2 D-Type Audio Cable x 1 •...
Page 17 • Anti-Vibration ACC Models (GV-LX8CV1 / GV-LX8CV2) • • 1 to 5 D-Type Video Cable x 1 6 to 8 D-Type Video/ TV/ Spot Monitor Cable • • Camera Power Cable x 2 D-Type Audio Cable x 1 • • Power Cable x 1 Shorting Cable x 1 •...
Page 18: Options
Introduction 1.4 Options Optional devices can expand your GV-Compact DVR V3’s capabilities and versatility. Contact your dealer for more information. The external IR receiver, with a 5-meter cable (16.4 feet), allows long-distance remote control of the GV-Compact DVR External IR Receiver GV-GPS 232 Receiver, with RS-232 interface, is a Global Position System receiver.
Page 19: System Requirement
1.5 System Requirement To access the Web interface of the GV-Compact DVR V3, it is required to use Microsoft Internet Explorer 7.x or later. Note: 1. Internet Explorer 10 is not supported in the all the firmware of GV-Compact DVR V3. 2.
Page 20: Chapter 2 Physical Description
Physical Description Chapter 2 Physical Description This section identifies the various components of the GV-Compact DVR V3, and provides the overview of the remote control. Front Panel 2.1.1 The Four-Channel Unit • Standard Models (GV-LX4C3D1 / GV-LX4C3D2 / GV-LX4C3D2W) 1. GV-LX4C3D1 4 5 6 7 Figure 2-1 2.
Page 21 3. GV-LX4C3D2W 4 5 6 7 Figure 2-3 Description No. Name The two USB ports can connect the USB storage device, USB Port Wireless LAN adaptor and/or mobile Internet device. • Power LED: Turns on when the power is supplied. •...
Page 22: Physical Description
Physical Description • The Anti-Vibration ACC Model (GV-LX4C3V) Figure 2-4 Description No. Name The two USB ports can connect the USB storage device, USB Port Wireless LAN adaptor and/or mobile Internet device. • Power LED: Turns on when the power is supplied. •...
Page 23: The Eight-Channel Unit
2.1.2 The Eight-Channel Unit • Standard Models (GV-LX8CD1 / GV-LX8CD2 / GV-LX8CD2W) 1. GV-LX8CD1 2 3 4 5 6 Figure 2-5 2. GV-LX8CD2 2 3 4 5 6 Figure 2-6...
Page 24 Physical Description GV-LX8CD2W 2 3 4 5 6 Figure 2-7 Description No. Name The four USB ports can connect the USB storage device, USB Port Wireless LAN adaptor and/or mobile Internet device. • Power LED: Turns on when the power is supplied. •...
Page 25 • Anti-Vibration ACC Models (GV-LX8CV1 / GV-LX8CV2) 1. GV- GV-LX8CV1 2 3 4 5 6 Figure 2-8 2. GV- GV-LX8CV2 2 3 4 5 6 Figure 2-9...
Page 26 Physical Description Description No. Name The four USB ports can connect the USB storage device, USB Port Wireless LAN adaptor and/or mobile Internet device. • Power LED: Turns on when the power is supplied. • Ready LED: Turns on when the unit is ready for use. •...
Page 27: Rear Panel
2.2 Rear Panel 2.2.1 The Four-Channel Unit • Standard Models (GV-LX4C3D1 / GV-LX4C3D2 / GV-LX4C3D2W) Figure 2-10 No. Name Description Connects to power supply. DC Power Input (12V) When using the Loop function, turn the switches to OFF 75 Ω positions.
Page 28 Physical Description • The Anti-Vibration ACC Model (GV-LX4C3V) Figure 2-11 No. Name Description Connects to power supply. DC Power Input (12V) When using the Loop function, turn the switches to OFF 75 Ω positions. The switch number is corresponding to the channel number.
Page 29: The Eight-Channel Unit
2.2.2 The Eight-Channel Unit • Standard Models (GV-LX8CD1 / GV-LX8CD2 / GV-LX8CD2W) Figure 2-12 No. Name Description Connects to power supply. DC Power Input (12V) Connects to the network. LAN Port • Inputs (5 Blue Connectors/CH1-5): Connects to Video In/Out cameras.
Page 30 Physical Description • Anti-Vibration ACC Models (GV-LX8CV1 / GV-LX8CV2) Figure 2-13 Description No. Name Connects to power supply. DC Power Input (12V) Connects to the network. LAN Port • Inputs (5 Blue Connectors/CH1-5): Connects to cameras. Video In/Out • Outputs (5 Black Connectors/CH1-5): Loops out each camera input to monitors.
Page 31: Remote Control
2.3 Remote Control The GV-Compact DVR V3 Remote Control is provided to configure and operate the GV-Compact DVR V3. 2.3.1 The Four-Channel Unit Figure 2-14 Button Description Stops recording. Starts recording. OSD menu: Moves the focus upward to the desired item. Playback: Decreases the speed of playback.
Page 32 Physical Description Button Description OSD menu: Moves the focus rightward to the desired item; moves to the next page. Playback: Plays the video forward at different speeds (2x, 4x, 8x, 16x and 32x). OSD menu: Enters the menu option and confirms the selection. Playback: Plays or pauses video.
Page 33: The Eight-Channel Unit
2.3.2 The Eight-Channel Unit Figure 2-15 Button Description Stops recording. Starts recording. OSD menu: Moves the focus upward to the desired item. Playback: Decreases the speed of playback. OSD menu: Moves the focus downward to the desired item. Playback: Stops playback. OSD menu: Moves the focus leftward to the desired item;...
Page 34 Physical Description Button Description OSD menu: Enters the menu option and confirms the selection. Playback: Plays or pauses video. Switches to Channel 1 to Channel 8 or I/O device 1 to 8. Switches to the screen of 4 divisions. Zooms in or out. Calls up the menu of SEARCH/PLAYBACK.
Page 35: Chapter 3 Getting Started
Chapter 3 Getting Started Getting started with the GV-Compact DVR V3 consists of the following steps: 3.1 Basic Connection for Standard Models Install the video display devices. 3.2 Basic Connection for Anti-Vibration Models Connect the unit to the vehicle. 3.3 Connecting Anti-Vibration ACC Models Describe the ACC connection in detail.
Page 36: Basic Connection For Standard Models
Getting Started 3.1 Basic Connection for Standard Models The following instructions describe the basic connection to the GV-Compact DVR V3. 3.1.1 The Four-Channel Unit Internet Figure 3-1 1. Use the supplied power adaptor to connect to power. 2. Connect to cameras by using the blue connectors of the supplied D-Type Video Cable. 3.
Page 37: The Eight-Channel Unit
3.1.2 The Eight-Channel Unit Figure 3-2 1. Use the supplied power adaptor to connect to power. 2. Connect to cameras (Camera 1 to 5) by using the blue connectors of the supplied 1 to 5 D-Type Video Cable. 3. Connect to cameras (Camera 6 to 8) by using the blue connectors of the supplied 6 to 8 D-Type Video/ TV/Spot Monitor Cable.
Page 38: Basic Connection For Anti-Vibration Models
Getting Started 3.2 Basic Connection for Anti-Vibration Models You need to connect the Anti-Vibration ACC model to ACC wire and power wire on the vehicle. When the unit is connected to the ACC wire properly, it will automatically start after you power on the vehicle for 5 seconds.
Page 39: The Eight-Channel Unit
3.2.2 The Eight-Channel Unit 1. Connect the ACC wire from the vehicle to Pin 24 on the terminal block. For details, see Connecting the ACC Wire of 3.3.2 Connecting to a Vehicle. 2. Connect the Power Cable to the GV-Compact DVR V3 and to the vehicle. For details, see Connecting the Power Wire of 3.3.2 Connecting to a Vehicle.
Page 40: Connecting Anti-Vibration Acc Models
ACC wiring between the unit and the vehicle. For the test, you need to prepare a power adaptor (DC 12V, 5.0A) to power on the unit. Follow the steps below. Items required for testing: Supplied Shorting Cable Power Adaptor of DC 12V, 5A (which can be purchased from GeoVision)
Page 41 1. Connect the Shorting Cable to Pins 14 and 16 (4-chaneel unit) or Pins 22 and 24 (8-channel unit) on the terminal block. Shorting Cable Terminal Block of 4-Channel Unit Shorting Cable Terminal Block of 8-Channel Unit Figure 3-5 2. Power on the unit by using a pow er adaptor.
Page 42: Connecting To A Vehicle
Getting Started 3.3.2 Connecting to a ve icle PORTANT: Below is an exa mple of how to connect the Anti-Vibration ACC model to the vehicle. Since each vehicle differs in design, refer to the owner’s manual of your vehicle for details and carefully follow the safety measures.
Page 43 Find the fuse specification diagram in the owner’s manual, which tells you what each fuse controls. Look for the fuse location of the “cigarette lighter.” The fuse diagram is sometimes located on the back of the fuse box cover. Figure 3-8 Connect the ACC wire from the cigarette lighter fuse to Pin 16 (4-channel unit) or Pin 24 (8-channel unit) on the terminal block.
Page 44 Getting Started Connecting the Power Wire The supplied power cable of the Anti-Vibration ACC model splits into two wires. Connect the white wire to the vehicle’s power cable and use the black wire to make the ground connection. ote: The Compact DVR V3 supports the power input of 10V to 28V, 5A. The Supplied Power Cable GV-Compact DVR V3...
Page 45 1. Using the fuse specification diagram, locate the power cable connecting to the fuse box. Connect the white power wire of the GV-Compact DVR V3 to the positive-voltage power cable. You may need to use a voltmeter to determine which one is the positive voltage.
Page 46 Getting Started • Method 2: Connect the black ground wire to the vehicle’s chassis so that the wire contacts the bare metal, for example, a metal bolt nearby. Figure 3-14 Depending on the make and model of your vehicle, sometimes only one method will work. When the black ground wire is connected correctly, GV-Compact DVR V3 will automatically shut down 30 seconds after the car’s power is off.
Page 47: Connecting Optional Video Output Devices
3.4 Connecting Optional Video Output Devices 3.4.1 The Four-Channel Unit The four-channel GV-Compact DVR V3 offers the looping video output for 4 monitors. It also offers the spot monitor output to display video sequentially from each video input. For the settings of the spot monitor, see 4.8.5 Spot Monitor Settings. Note: To loop out videos, turn the 75 Ω...
Page 48: The Eight-Channel Unit
Getting Started 3.4.2 The Eight-Channel Unit The eight-channel GV-Compact DVR V3 offers the looping video output for 8 monitors. It also offers the spot monitor output to display video sequentially from each video input. For the settings of the spot monitor, see 4.8.5 Spot Monitor Settings. x Black Connector (MUX) Spot Monitor...
Page 49: Installing A Hard Drive
3.5 Installing a Hard Drive The GV-Compact DVR V3 comes equipped with one or two 3.5” SATA hard drive bay(s) for video recording. Follow these steps to install the hard drive. IMPORTANT: The GV-Compact DVR V3 does not support hot swap. Ensure to power off the unit before removing the hard drive.
Page 50 Push the drawer back. Figure 3-19 5. To install a 2.5” SATA hard drive, you need a HDD Converter from GeoVision to enclose the 2.5” hard drive. Insert the Converter installed with a 2.5” hard drive into the pull-out drive drawer, secure the Converter with 6 supplied T-Cap screws, and push the drive drawer back in the drive bay.
Page 51 T-Cap screws, and push the drawer back in the drive bay of the unit. Figure 3-22 To install a 2.5” SATA hard drive, you need a HDD Converter from GeoVision to enclose the 2.5” hard drive. Insert the Converter installed with a 2.5” hard drive into the pull-out drive drawer, secure the Converter with 4 supplied screws, and push the drive drawer back in the drive bay.
Page 52: The Eight-Channel Unit
Getting Started 3.5.2 The Eight-Channel Unit 1. Make sure the unit is powered off. 2. Push down the blue button to loose the latch of the hard drive drawer, and pull out the drawer. Figure 3-25 3. Unscrew and remove the extender of the drawer. Figure 3-26 4.
Page 53 5. To install a 2.5” SATA hard drive, you need a HDD Converter from GeoVision to enclose the 2.5” hard drive. Insert the Converter installed with a 2.5” hard drive into the pull-out drive drawer, secure the Converter with 6 supplied T-Cap screws, and push the drive drawer back in the drive bay.
Page 54: Turning On / Off The Power
Getting Started 3.6.1 Turning On the Power Connect the GV-Compact DVR V3 to the power, and the Power LED should turn on. If a HDD is installed on the GV-Compact DVR V3, the HDD Power LED should turn on as well.
Page 55: Formatting Hard Drive
3.7 Formatting Hard Drive The GV-Compact DVR V3 is a Linux-based system. You must follow the steps below to format the hard drive before recording. 1. Press the Menu button on the Remote Control to enter the main menu. 2. Select ADVANCED, select STORAGE SETTINGS, and then select STORAGE MANAGEMENT.
Page 56: Main Screen Overview
Getting Started 3.8 Main Screen Overview Figure 3-31 1. Date and time: Indicates the current date and time when viewing live video. 2. A / B / C: Indicates the type of device defined for the GV-Compact DVR V3. 3. Monitoring icon : Appears when the monitoring is activated.
Page 57: Basic Operation
3.9 Basic Operation This section describes the basic operation of the GV-Compact DVR V3. 3.9.1 Date/Time Adjustment It is recommended that you enter the current date and time before start recording so that the correct date and time is associated with all videos. •...
Page 58: Search/Playback Operation
Getting Started 3.9.3 Search/Playback Operation To access the recorded video for playback, press the Search button to have several search and playback options. For details, see 4.6 Search / Playback. 3.9.4 PTZ Operation To install the PTZ camera, press the Menu button on the Remote Control, select CHANNEL SETTINGS, press one Channel button (Ch1 - CH4 for the four-channel unit;...
Page 59: Chapter 4 Osd Menu Configurations
Chapter 4 OSD Menu Configurations The GV-Compact DVR V3 is configured through a series of menus on screen by using the Remote Control. This section describes the functions and options in the on-screen display (OSD) menus. To enter the main menu, press the Menu button on the Remote Control. Eight submenus will appear as shown below.
Page 60 OSD Menu Configurations List of Main Menu Options Find the topic of interest by referring to the section number prefixed to each option. 4.1.1 CHANNEL NAME 4.1.2 VIDEO/AUDIO SETTINGS 4.1.3 MOTION DETECTION 4.1.4 MOTION TRIGGER OUTPUT SETTINGS 4.1 CHANNEL SETTINGS 4.1.5 ALARM SETTINGS 4.1.6 CAMERA SETTINGS 4.1.7 PTZ SETTINGS...
Page 61: Channel Settings
4.1 Channel Settings In Channel Settings, you can adjust the device settings for each channel. To set up a channel, press the Menu button on the Remote Control, select CHANNEL SETTINGS, press one Channel button (CH1 – CH4 for the four-channel unit; CH1 – CH8 for the eight-channel unit), and select one of the setting options.
Page 62: Video/Audio Settings
OSD Menu Configurations 4.1.2 Video/Audio Settings You can adjust the audio and video settings for the selected channel. Select APPLY TO ALL to apply the same settings to all four channels or all eight channels, depending on the unit you use.
Page 63: Motion Detection
4.1.3 Motion Detection Motion detection is used to generate an alarm whenever movement occurs in the video image. You can configure up to 8 areas of different sensitive values for motion detection. 1. Select MOTION DETECTION. This screen appears. The default sensitivity value is 2 for the whole area.
Page 64 OSD Menu Configurations 5. Press the directional buttons to place the detection area, and press the button. 6. Press the directional buttons to modify the size of the detection area, and press the button. Figure 4-6 7. Select SENSITIVITY value from Low (1), Medium (2) and High (3), and press the button.
Page 65: Motion Trigger Output Settings
4.1.4 Motion Trigger Output Settings The alarm output can be triggered simultaneously when motion is detected. The four-channel unit can connect up to 4 alarm output devices, while the eight-channel unit can connect up to 8 alarm output devices. To activate the output settings, you must also start monitoring manually or by schedule.
Page 66: Alarm Settings
OSD Menu Configurations 4.1.5 Alarm Settings You can capture images before and/or after a motion and an I/O event happens. Figure 4-9 PRE-ALARM BUFFER: Activate video recording before an event occurs. Set the recording time to 1 or 2 seconds. POST-ALARM RECORDING: Activate video recording onto the hard disk after an event occurs.
Page 67: Ptz Settings
4.1.7 PTZ Settings Through the RS-485 interface on the I/O terminal block, you can connect up to 4 PTZ cameras with the four-channel unit, and 8 PTZ cameras with the eight-channel unit. To set up the baud rate, speed and address, consult your PTZ documentation. Figure 4-11 Note: Currently the GV-Compact DVR V3 does not support the PTZ camera with RS-232...
Page 68: Ptz Control
OSD Menu Configurations 4.1.8 PTZ Control After setting up the PTZ camera, you can press the Channel button (CH1 - CH4 for the four-channel unit; CH1 – CH8 for the eight-channel unit) on the remote Control to display the PTZ channel. Use the directional buttons to control the PTZ movement. Press the Menu button to access advanced functions.
Page 69: Privacy Mask
4.1.9 Privacy Mask You can set up the Privacy Mask to block out sensitive areas from view by covering the areas with black or white boxes in both live view and recorded clips. Figure 4-13 STATE: Enable the Privacy Mask function. MASK MODE: Set the mask to be black or white.
Page 70: Digital Io Settings
OSD Menu Configurations 4.2 Digital IO Settings The I/O terminal block, on the rear panel of the GV-Compact DVR V3, provides the interface for the applications of digital input, relay output and GPS. 4.2.1 Digital Input Settings The four-channel unit can connect up to 4 input devices, while the eight-channel unit can connect up to 8 input devices.
Page 71: Digital Output Settings
4.2.2 Digital Output Settings The four-channel unit can connect up to 4 output devices, while the eight-channel unit can connect up to 8 output devices. To select one output device for setup, press the desired Channel button (CH1 – CH4 for the four-channel unit; CH1 –CH8 for the eight-channel unit) on the Remote Control.
Page 72: Gps Settings
OSD Menu Configurations 4.2.3 GPS Settings Note the GPS function is only supported on Anti-Vibration ACC models (GV-LX4C3V / GV-LX8CV1 / GV-LX8CV2). The Anti-Vibration ACC models support the Global Position System (GPS) for active vehicle tracking and location verification. You can track the vehicle location on Google maps and display the average speed of a vehicle in live view.
Page 73 STATE: Enable the GPS function. After the settings, the vehicle speed will show on the upper-right corner of the main screen. BAUD RATE: Two baud rate options are available: 4800 and 9600. By default the value is 9600. UPDATE PERIOD: Set the update frequency in seconds for GPS data. SPEED UNIT: Two speed unit options are available: km/h and mph.
Page 74: Events And Alerts
OSD Menu Configurations 4.3 Events and Alerts For the events of motion detection or I/O trigger, you can set up these alert methods: 1. Send a captured still image by e-mail or FTP. 2. Notify Center Monitoring Station, Center V2, VSM or GV-GIS, by video or text alerts. To have above alert methods, you must also set the following features: •...
Page 75: E-Mail
4.3.1 E-mail After a trigger event, the GV-Compact DVR V3 can send the e-mail to a remote user containing a captured still image. Figure 4-18 STATE: Enable the e-mail function. SERVER URL/IP: Enter the URL or IP address of the SMTP server. PORT: Enter the SMTP server’s port number.
Page 76: Ftp
OSD Menu Configurations 4.3.2 FTP You can also send the captured still image to a remote FTP server for alerts. Figure 4-19 FTP CLIENT MODE: Enable the FTP function. SERVER URL/IP: Enter the host name or IP address of the FTP Server. PORT: Enter the port number of the FTP Server.
Page 77: Center V2
4.3.3 Center V2 After a motion or an I/O triggered event, the central monitoring station Center V2 can get notified by live videos and text alerts. For the monitoring through Center V2, you must already have a subscriber account on Center V2. You can connect up to two Center V2 servers for central monitoring.
Page 78: Vsm
OSD Menu Configurations 4.3.4 VSM After a motion or an I/O triggered event, the central monitoring station VSM can get notified by text alerts. For the monitoring through VSM, you must already have a subscriber account on VSM. You can connect up to two VSM servers for central monitoring. Press CH1 and CH2 buttons on the Remote Control for two different connection settings.
Page 79: Gv-Gis
4.3.5 GV-GIS Note the GV-GIS function is only supported on Anti-Vibration ACC models (GV-LX4C3V, GV-LX8CV1 and GV-LX8CV2). Through the network connection, the Anti-Vibration ACC models equipped with GPS devices can send GPS data and live video to the GV-GIS (Geographic Information System) for the services of vehicle tracking, location verification and live monitoring.
Page 80: Video Gateway / Recording Server
OSD Menu Configurations 4.3.6 Video Gateway / Recording Server You can send the video images to the GV-Video Gateway or GV-Recording Server. Up to two GV-Video Gateways or GV-Recording Servers can be connected with the unit.. Press CH1 and CH2 buttons on the Remote Control for two different connection settings. Figure 4-23 Activate Link: Enable the connection to the GV-Video Gateway or GV-Recording Server.
Page 81: Remote Playback
4.3.7 Remote Playback You can remotely access and play the recorded files saved on the GV-Compact DVR V3 Select YES to activate the remote playback server built in the unit and to allow playback access. Keep the default port 5552 or modify it if necessary. For details on the remote playback, see 7.2.2 Playback over Network.
Page 82: 3Gpp
OSD Menu Configurations 4.3.8 3GPP The 3GPP server allows you to enable the Real Time Stream Protocol (RTSP) and watch live streaming by using VLC or QuickTime player. For the RTSP command, see RTSP Protocol Support in Appendix E. Note: Currently the GV-Compact DVR V3 does not support 3GPP mobile connection.
Page 83: Monitoring Settings
4.4 Monitoring Settings You can start recording manually, by schedule or by input trigger. Figure 4-26 MONITORING MODE: Select MANUAL to manually start recording or I/O monitoring. If you choose this option, configure the following item CHANNEL (CH 1 – CH 4 for the four-channel unit, or CH 1 –...
Page 84 OSD Menu Configurations To start monitoring or recording: • Select START. The unit will start monitoring based on your above settings: record immediately, only record on the scheduled time, or record by an input trigger. • Select SAVE to save the monitoring settings. Then press the REC button on the Remote Control at any time to start your monitoring settings.
Page 85: Recording Schedule
4.5 Recording Schedule The schedule is provided to activate recording and I/O monitoring on a specific time each day. 4.5.1 Specific Day The system will operate automatically on the specific days you have scheduled. Press the button on the Remote Control to start setting and then use the directional buttons to define the days.
Page 86: Channel Schedule
OSD Menu Configurations 4.5.2 Channel Schedule You can set up different monitoring schedules for each camera. Press the Channel button (CH1 – CH4 for the four-channel unit; CH1 – CH8 for the eight-channel unit) on the Remote Control to select one channel for setup. Figure 4-28 Span 1- Span 3: Sets different recording modes for each time frame during the day.
Page 87: I/O Monitoring Schedule
4.5.3 I/O Monitoring Schedule You can set up the schedule for I/O monitoring to start. Figure 4-29 Span 1- Span 3: Set different time frames during the day to enable I/O monitoring. Each day can be divided into 3 time frames, represented by Span 1 to Span 3. Weekend: If you want to have the I/O monitoring all day during the weekend, enable this option and define whether your weekend includes Saturday and Sunday (SAT-SUN) or Only Sunday (SUN).
Page 88: Search / Playback
OSD Menu Configurations 4.6 Search / Playback You can retrieve the recorded video by date, time and event. To access the SEARCH/PLAYBACK menu, press the Menu button or the Search button on the Remote Control. 4.6.1 Time Map List The Time Map List provides an overview of the recorded videos in the form of a calendar. 1.
Page 89: List All
4.6.2 List All The list displays a complete list of recorded videos. To move the list screen up and down one page, press the right and left directional buttons on the Remote Control. To start playback, highlight the desired video and press the button.
Page 90: Advanced Search
OSD Menu Configurations 4.6.7 Advanced Search You can limit your search by defining search criteria. Figure 4-32 SOURCE: Search the recorded video from the selected channel or all channels. EVENT: Select the type of recorded videos with the options of motion detection and input trigger (MOTION + IO), motion detection (MOTION), any input triggered (ALL IO) or an individual input triggered (e.g.
Page 91: Network
4.7 Network The GV-Compact DVR V3 allows you to use a Web browser to remotely view and manage the system. For remote access, configure the related network settings in this section. 4.7.1 Network Status The Network Status displays the current network settings of GV-Compact DVR V3. Figure 4-33...
Page 92: Connection Settings
OSD Menu Configurations 4.7.2 Connection Settings According to your network environment, select among Static IP, DHCP and PPPoE to configure an IP address to the GV-Compact DVR V3. Figure 4-34 CONNECTION: According to the network environment, select WIRED or WIRELESS. Before enabling WIRELESS, configure WIRELESS SETTINGS which is explained in th following section.
Page 93: Wireless Settings
4.7.3 Wireless Settings To use the wireless function, a wireless LAN USB Adaptor is required. For supported wireless LAN adaptors, see Appendix A. Figure 4-35 NETWORK TYPE: Select AD HOC or INFRASTRUCTURE for the network mode. AD HOC: A Peer-to-Peer mode. This mode connects to other computer with the WLAN card, and does not need the Access Point to connect to each other.
Page 94: Advanced Tcp/Ip
OSD Menu Configurations 4.7.4 Advanced TCP/IP You can set up the advanced TCP/IP settings, including DDNS server, HTTP port, streaming port and UPnP. Figure 4-36 HOST NAME: Enter a descriptive name for the GV-Compact DVR V3. HTTP PORT: The HTTP port enables connecting the GV-Compact DVR V3 to the Web. For security integration, the Administrator can hide the server from the general HTTP port by changing the default HTTP port of 80 to a different port number within the range of 1024 thru 65535.
Page 95: Umts Settings
4.7.5 UMTS Settings After a mobile broadband device (supporting UMTS, HSDPA and etc) is attached to the USB port on the GV-Compact DVR V3 and the UMTS function is enabled, the GV-Compact DVR V3 can have Internet connectivity. For the supported mobile broadband devices, see Appendix B.
Page 96: Ddns Settings
PROVIDER: Select the DDNS service provider you have registered with. HOSTNAME: Enter the host name used to link to the GV-Compact DVR V3. For the users of GeoVision DDNS Server, it is unnecessa ry to fill the field because the system will detect the host name automatically.
Page 97: Multicast Settings
4.7.7 Multicast Settings Note the Multicast function is only supported on the four-channel GV-Compact DVR V3. You can enable either Multicast or RTSP; the two protocols cannot function at the same time. The multicast provides a mechanism for sending a single video and audio stream to a group of hosts.
Page 98: Web User Account Info
OSD Menu Configurations 4.7.8 Web User Account Info You can change the login name and password of Administrator, Guest and FTP Server User. • The default Administrator login name and password are admin. • The default Guest login name and password are guest. •...
Page 99: Advanced
4.8 Advanced In this section, you can configure the settings of date and time, storage device, screen display, and system password. In addition, you can view and upgrade the firmware. 4.8.1 Date and Time The date and time settings are used for date and time stamps on the image. Figure 4-41 SET BY: Select MANUAL to adjust the data and time by yourself, or NETWORK to synchronize the date and time with a time server.
Page 100: Firmware Settings
OSD Menu Configurations 4.8.2 Firmware Settings GeoVision will periodically release the updated firmware on the website. The new firmware can be simply loaded into the GV-Compact DVR V3 by using a USB storage device. For the details on upgrading the unit over the network, see Chapter 8 Advanced Applications.
Page 101: Storage Settings
4.8.3 Storage Settings You can configure the settings of the connected hard disk drive. Figure 4-43 STORAGE STATUS: Display the total size and space usage of the hard drive. STORAGE MANAGEMENT: This option allows you to format the hard disk. For details, see 3.6 Formatting Hard Drive.
Page 102: Display Settings
OSD Menu Configurations 4.8.4 Display Settings You can show or hide the time, date, disk space, camera information and specific cameras appearing on the screen. Figure 4-44 INFO DISPLAY SETTINGS: Show or hide the information of date and time, hard disk space, channel number, GV-Smart Box counting data and camera name on the image.
Page 103: Spot Monitor Settings
4.8.5 Spot Monitor Settings You can configure the settings when a spot monitor is connected to the GV-Compact DVR V3. Figure 4-45 NORMAL DWELL TIME: Select the amount of time that each video remains on the spot monitor before the GV-Compact DVR V3 switches to the next video in a rotation. The dwell time can be between 1 and 5 seconds.
Page 104: Alert Settings
OSD Menu Configurations 4.8.6 Alert Settings The system buzzer can be activated automatically under these conditions: video lost, input devices triggered, motion detected, disk full and disk write error. The duration of buzzing sounds is definable. When the buzzer starts beeping, pressing any button on the Remote Control can stop it.
Page 105: System Settings
4.8.7 System Settings You can set up video format, change the system password and reset the configurations. Figure 4-47 CAMERA FORMAT: Select the video format to be NTSC or PAL; or select AUTO for automatic detection. SYSTEM PASSWORD: Set up the system password. Once the password is set up, you will be prompted for a password when you enter the main menu.
Page 106: System Log
OSD Menu Configurations 4.8.8 System Log You can view and save the system events logged on the GV-Compact DVR V3. To back up the system log, press the REC button on the Remote Control, and select USB or DVD disc to store the backup data.
Page 107: Backup
4.8.9 Backup You can back up video files of the specified time and channels to a USB storage device or DVD disc. The GV-Compact DVR V3 models GV- LX4C3D2W and GV-LX8CD2W are equipped with a DVD-RW drive for easy file backup. You can also connect a DVD-RW writer or USB storage device to the unit for file backup.
Page 108: Chapter 5 Remote Viewing Using A Web Browser
Remote Viewing Using a Web Browser Chapter 5 Remote Viewing Using A Web Browser Not only can the GV-Compact DVR V3 operate as a standalone, but also a netwo rked device. Using the Internet Explorer, you can remotely access and manage the GV-Compact DVR V3. 5.1 Assigning an IP Address Designed for use on an Ethernet network, the GV-Compact DVR V3 must be assigned an IP...
Page 109: Connecting With A Pc
5.1.2 Connecting with a PC Use a c omputer on the same LAN with the GV-Compact DVR V3 to check and assign the IP address. 5.1.2.1 Checking the IP Address Follow the steps below to look up the IP address and access the W eb interface.
Page 110: Changing The Ip Address
In this case, it is strongly suggested to modify the IP address to avoid the IP address conflict with other GeoVision IP devices on the same LAN. 1. Using the network cable, connect one end to the LAN port on the rear pane...
Page 111 5. To assign a static IP address, select Static IP address. Type IP Address, Subnet Mask, Router/Gateway, Primary DNS and Secondary DNS. 6. To esta blish a connection to your ISP, select Use PPPoE, and type the username and password. 7.
Page 112: Accessing Your Surveillance Images
4. Click Apply. A video image, similar to the example on Figure 5-5, is now displayed in your browser. Note: To enable the updating of images in Internet Explorer, you must set your browser to allow ActiveX Controls and perform a once-only installation of GeoVision’s ActiveX component onto your computer.
Page 113: Functions Featured On The Main Page
5.3 Functions Featured on the Main Page Two types of users are allowed to log in the GV-Compact DVR V3: Administra tor and Guest. The Administrator has unrestricted access to all system configurations, while the Guest has the access to live view and network status only. This section introduces the live view functions and the network status on the main page, which can be accessed by both Administrator and Guest.
Page 114: The Live View Window
Remote Viewing Using a Web Browser 5.3.1 The Live View Window 2 3 4 5 6 7 Figure 5-6 . Name Function Play Plays live video. Stop Stop playing video. Microphone Talks to the surveillance area from the local compu ter.
Page 115: The Control Panel Of The Live View Window
5.3.2 The Control Panel of the Live View Window To open the control panel of the Live View window, click the arrow button on top of the window. can access the following functions by using the right and left arrow buttons on the control panel.
Page 116: Snapshot Of A Live Video
Remote Viewing Using a Web Browser 5.3.3 Snapshot of a Live Video o take a snapshot of live video, follow these steps: 1. Click the Snapshot button (No. 5, Figure 5-6). The Save As dialog box a ppears. 2. Specify Save in, type the File name, and select JPEG or BMP as Save as Type. You may also choose whether to display the name and dat e stamps on the image.
Page 117: Picture-In-Picture And Picture-And-Picture View
5.3.5 Picture-in-Picture and Picture-and-Picture View The full screen mode provides two types of close-up views: Picture-in-Picture (P IP) and Picture-and Picture (PAP). The two views are useful to provide clear and detailed images of the su rveillance area. Picture-in-Picture View ith the Picture in Picture (PIP) view, you can crop the video to get a close-up view or zoom in on the video.
Page 118: Remote Viewing Using A Web Browser
Remote Viewing Using a Web Browser Picture-and-Picture View With the Picture and Picture (PAP) view, you can create a split video effect with multiple close-up views on the image. A total of 7 close-up views can be defined. Figure 5-9 Right-click the live view and select PAP.
Page 119: Alarm Notification
5.3.6 Alarm Notification After input triggers and motion detection, you can be alerted by a pop-up live video and view up to four captured images. Pop-up live video Captured images Figure 5-10 To configure this function, click the Show System Menu button (No. 12, Figure 5-6), and select Alarm Notify.
Page 120: Video And Audio Configuration
Remote Viewing Using a Web Browser 5.3.7 Video and Audio Configuration You can enable the microphone and speaker for two-way audio communication and adjust the audio volume. To change audio configuration, click t he Show System Menu button (No. 12, Figure 5-6), and select the Audio Configure tab.
Page 121: Image Enhancement
5.3.10 Image Enhancement To enhance the image quality of live video, click the Sho w System Menu button (No. 12, Figure 5-6), and select Image Enhance. This dialog box appears. Figure 5-13 De-Interlace: Coverts the interlaced video int o non-interlaced video. De-Block: Removes the block-like artifacts from low-quality and highly compressed video.
Page 122: Visual Ptz
Remote Viewing Using a Web Browser 5.3.12 Visual PTZ In additional to the PTZ control panel, you can display a visual PTZ control pane l on the image. This feature is o nly available when the PTZ is set ahead by the Administrator. For details, see 6.2.2 PTZ Settings.
Page 123: I/O Control
5.3. 13 I/O Control The I/O Control window provides real-time graphic displays of camera and I/O status, and alarm events. Additionally, you can force output to be triggered. Figure 5-16 To display the I/O control window, click the I/O Control button (No. 9, Fig ure 5-6).
Page 124: Visual Automation
Remote Viewing Using a Web Browser 5.3.14 Visual Automation The Visual Automation allows you to change the current state of the electronic device by simply clicking on its image, e.g. turning the light ON. This feature is only availa ble when the Visual Automation is set ahead by the Administrator.
Page 125: Multicast
5.3.15 Multicast Note this function is only available on the four-channel GV-Compact DVR V3. The Multicast view allows the GV-Compact DVR V3 receiving video and au dio streams from a multicast group. It also enables the unit to receive audio broadcast from the hosts in the multicast group.
Page 126: Network Status
Remote Viewing Using a Web Browser 5.3.16 Network Status To view the network status, in the left menu, click Network and select Status. Figure 5-19...
Page 127: Chapter 6 Remote Configurations
Chapter 6 Remote Configurations The Administrator can remotely configure the GV-Compact DVR V3 via the network. Eight categories of configurations are involved in the system configuration: Video and Motion, Digital I/O and PTZ, Events and Alerts, Monitoring, Recording Schedule, Remote ViewLog, Network, and Management.
Page 128 Remote Configurations List of Menu Options Find the topic of interest by referring to the section number prefixed to each option. 6.1.1 Video Settings 6.1.2 Motion Detection 6.1.3 Text Overlay 6.1 Video and Motion 6.1.4 Visual Automation 6.1.5 VGA Output Settings 6.1.6 Video Channel Source Settings 6.2.1 I/O Control 6.2.2 PTZ Settings...
Page 129: Video & Motion
6.1 Video & Motion This section includes the video image settings and how the images can be managed by using Video Settings, Motion Detection, Text Overlay, Visual Automation and Video Channel Source Settings. 6.1.1 Video Settings The Video Settings section allows you to configure the video source, resolution and the related options for the video stream.
Page 130 Remote Configurations Figure 6-2...
Page 131 [Name] Rename the camera. To display the camera name on the image, see 5.3.9 Camera Name Display. [Video Signal Type] Auto detect signal type on booting: Automatically detects the type of video input is NTSC or  PAL. There are different options of the image resolutions for video stream. NTSC 704 x 480 704 x 576...
Page 132 Remote Configurations [Record Settings] The record settings allow you to capture images before and/or after a motion and an I/O event happens. Pre-alarm recording time: Activates video recording before an event occurs. Set the  recording time to 1 or 2 seconds. Post-alarm recording time: Activates video recording after an event occurs.
Page 133: Motion Detection
6.1.2 Motion Detection Motion detection is used to generate an alarm whenever movement occurs in the video image. You can configure up to 8 areas with different sensitivity values for motion detection. Figure 6-3 1. The default sensitivity value is 2 for the whole area. To define a different sensitivity value, click Reset.
Page 134: Text Overlay
Remote Configurations 6.1.3 Text Overlay The Text Overlay function allows you to type any text in any place on the camera view. Up to 16 text messages can be created. The overlaid text will also be saved in the recorded images. Figure 6-4 Select the Enable option.
Page 135: Visual Automation
6.1.4 Visual Automation Note for eight-channel GV-Compact DVR V3, this function can only be applied to channel 1 to 4. This intuitive feature helps you automate any electronic device by triggering the connected output device. When you click on the image of the electronic device, you can simply change its current state, e.g.
Page 136: Vga Output Settings
Remote Configurations 6.1.5 VGA Output Settings The GV-Compact DVR V3 is equipped with a VGA connector for computer monitors or high-definition television sets. You can select the screen resolution for the VGA output. Figure 6-8 6.1.6 Video Channel Source Settings Note this function is only available for the four-channel GV-Compact DVR V3.
Page 137: Digital I/O & Ptz
6.2 Digital I/O & PTZ The I/O terminal block, on the rear panel of the GV-Compact DVR V3, provides the interface for the following applications: Alarm input and output RS-485 interface for PTZ control 6.2.1 I/O Control Input Setting The four-channel Compact DVR V3 can connect up to 4 input devices, such as sensors, while the eight-channel unit can connect up to 8 input devices.
Page 138: Output Setting
Remote Configurations Input on: Direct the PTZ camera to a preset point when the input is triggered.  Input off: Direct the PTZ camera to another preset point when the triggered input is off.  Duration to set preset after input off x seconds: Specify the amount of time the PTZ ...
Page 139: Ptz Settings
6.2.2 PTZ Settings Through the RS-485 interface on the I/O terminal block, the four-channel GV-Compact DVR V3 can connect up to 4 PTZ cameras, while the eight-channel unit can connect up to 8 PTZ cameras. In the setting page, you may need to consult your PTZ camera’s documentation to set up its baud rate and address.
Page 140: Gps
Remote Configurations 6.2.3 GPS Note the GPS function is only supported on Anti-Vibration ACC models (GV-LX4C3V / GV-LX8CV1 / GV-LX8CV2). The Anti-Vibration ACC models support the Global Position System (GPS) for active vehicle tracking and location verification. You can track the vehicle location on Google maps and display the average speed of a vehicle in live view.
Page 141 To display the vehicle speed: Select Overlaid with the GPS speed on the Video Settings page, and click Apply. Video Settings page Vehicle speed in live view Figure 6-14 To track the vehicle location: See 8.3 GPS Tracking. To play back GPS tracks: If the monitoring is also activated, the GPS tracks will be recorded along with video.
Page 142: Buzzer
Remote Configurations 6.2.4 Buzzer The system buzzer can be activated automatically under these conditions: video lost, input devices triggered, motion detected, disk full and disk write error. The duration of buzzing sounds is definable. When the buzzer starts beeping, pressing any button on the Remote Control can stop it.
Page 143: Spot Monitor
6.2.5 Spot Monitor If the spot monitor is connected to the GV-Compact DVR V3, configure the settings of the spot monitor. Figure 6-16 Dwell time x seconds: Select the amount of time that each video remains on the spot  monitor before the GV-Compact DVR V3 switches to the next video in a rotation.
Page 144: Events & Alerts
Remote Configurations 6.3 Events & Alerts When motion is detected or I/O devices are triggered, the Administrator can set up these alert methods: 1. Send a captured still image by e-mail or FTP. 2. Notify Center Monitoring Station, Center V2, VSM or GV-GIS, by video or text alerts. To have above alert methods, you must also set the following features: ...
Page 145: E-Mail
6.3.1 E-mail After a trigger event, the GV-Compact DVR V3 can send the e-mail to a remote user containing a captured still image. Figure 6-17 [Enable] Select to enable the e-mail function. Sever URL/IP Address: Type the URL or IP address of the SMTP server. ...
Page 146: Ftp
Remote Configurations 6.3.2 FTP You can also send the captured still image to a remote FTP server for alerts. Figure 6-18 [Upload to a FTP Server] Enable: Select to enable the FTP function.  Server URL/IP Address: Type the URL address or IP address of the FTP Server. ...
Page 147 [FTP-Alarm Settings] Motion Detection: Once the motion is detected on the selected camera, a still image will  be sent to the FTP Server. Continuously send images upon trigger events (motion): A sequence of snapshot  images are uploaded to the FTP Server when motion is detected on the selected camera.
Page 148: Center V2
Remote Configurations 6.3.3 Center V2 After a motion or an I/O triggered event, the central monitoring station Center V2 can get notified by live videos and text alerts. For the live monitoring through Center V2, you must already have a subscriber account on Center V2. The GV-Compact DVR V3 can connect up to two Center V2 servers simultaneously.
Page 149 These options you can also find on this Center V2 setting page: Cease motion detection messages from: Stops notifying Center V2 of motion detection  from selected camera. Cease input trigger messages from: Stops notifying Center V2 of input trigger from ...
Page 150: Vsm
Remote Configurations 6.3.4 VSM After a motion or an I/O triggered event, the central monitoring station VSM can get notified by text alerts. For the live monitoring through VSM, you must already have a subscriber account on VSM. The GV-Compact DVR V3 can connect up to two VSM simultaneously. Figure 6-20 To enable the VSM connection: 1.
Page 151 These options you can also find on this VSM setting page: Cease motion detection messages from: Stops notifying VSM of motion detection from  selected camera. Cease input trigger messages from: Stops notifying VSM of input trigger from selected  input.
Page 152: Gv-Gis
Remote Configurations 6.3.5 GV-GIS Note the GV-GIS function is only supported on Anti-Vibration ACC models (GV-LX4C3V, GV-LX8CV1 and GV-LX8CV2). Through the network connection, the Anti-Vibration ACC models equipped with GPS devices can send GPS data and live video to the GV-GIS (Geographic Information System) for the services of vehicle tracking, location verification and live monitoring.
Page 153 Figure 6-21 To enable the GV-GIS connection: 1. Activate Link: Enable the monitoring through GV-GIS. 2. Host Name or IP Address: Type the host name or IP address of GV-GIS. 3. Port Number: Match the communication port on GV-GIS. Or keep the default value 3356. 4.
Page 154: Backup Center
Remote Configurations 6.3.6 Backup Center The GV-Backup Center provides a PC-based storage and backup solution. The connection to the GV-Backup Center allows you to back up another copy of recordings and system log to a pc-based GV-Backup Center while the GV-Compact DVR V3 is saving these data to the attached hard disk.
Page 155 To enable the Backup Center connection: 1. Activate Link: Enable the connection to the Backup Center. 2. Host Name or IP Address: Type the host name or IP address of the Backup Center. 3. Port Number: Match the communication port on the Backup Center. Or keep the default value 30000.
Page 156: Video Gateway / Recording Server
Remote Configurations 6.3.7 Video Gateway / Recording Server The GV-Recording Server and GV-Video Gateway are a video streaming server designed for large-scale video surveillance deployments. The servers can receive up to 128 channels from various IP video devices, and distribute up to 300 channels to its clients. With the GV-Recording Server and GV-Video Gateway, the desired frame rate can be ensured while the CPU loading and bandwidth usage of the IP video devices are significantly reduced.
Page 157 5. Password: Type a valid password to log into GV-Video Gateway / GV-Recording Server. 6. Enable schedule mode: Enable the GV-Video Gateway / GV-Recording Server connection on the schedule you set in the Select Schedule Time section. Refer to 6.5 Recording Schedule for the same settings.
Page 158: Viewlog Server
Remote Configurations 6.3.8 ViewLog Server The ViewLog Server is designed for remote playback. This server allows you to remotely access the recorded files saved on the GV-Compact DVR V3 and play back video with the ViewLog player. Select Enable to activate the server built in the unit and to allow the playback access. Keep the default port 5552 or modify it if necessary.
Page 159: Rtsp / 3Gpp
6.3.9 RTSP / 3GPP The RTSP / 3GPP Server allows you to enable the Real Time Stream Protocol (RTSP) and watch live streaming by using VLC or QuickTime player. For the RTSP command, see RTSP Protocol Support in Appendix E. Figure 6-25 Activate Link: Enable the RTSP protocol.
Page 160: Monitoring
Remote Configurations 6.4 Monitoring You can start recording manually, by schedule or by input trigger. Figure 6-26 [Manual] Manually activates recording and I/O monitoring. Select one of the following options and then click the Start button.  Select all: Manually starts recording and I/O monitoring as well. ...
Page 161 [Camera Status Icon] : Manual recording : Schedule recording : On standby : Enabled for motion detection and input trigger...
Page 162: Recording Schedule
Remote Configurations 6.5 Recording Schedule The schedule is provided to activate recording and I/O monitoring on a specific time each day. 6.5.1 Recording Schedule Settings You can set up different monitoring schedules for each camera. Figure 6-27 Span 1- Span 3: Set a different recording mode for each time frame during the day. Each ...
Page 163: I/O Monitoring Settings
6.5.2 I/O Monitoring Settings You can set up the schedule for I/O monitoring to start. Figure 6-28 Span 1 to Span 3: Set different time frames during the day to enable I/O monitoring.  Each day can be divided into 3 time frames, represented by Span 1 to Span 3. Weekend: If you want to have the I/O monitoring all day during the weekend, enable this ...
Page 164: Remote Viewlog
Remote Configurations 6.6 Remote ViewLog With the Remote ViewLog player, you can remotely play back the files recorded at the GV-Compact DVR V3 over TCP/IP network. For the first-time user, you need to install the Remote ViewLog program from the Software CD to initiate the function.
Page 165: Network
6.7 Network The Network section includes some basic but important network configurations that enable the GV-Compact DVR V3 to be connected to a TCP/IP network. 6.7.1 LAN According to your network environment, select among Static IP, DHCP and PPPoE to configure an IP address to the GV-Compact DVR V3.
Page 166 Remote Configurations [LAN Configuration] According to the network environment, select Wired or Wireless. Before enabling Wireless, set up a wireless module first. For details, see 6.7.2 Wireless-Client Mode. [LAN Configuration] Dynamic IP address: Assign a dynamic IP by the DHCP server. By default the ...
Page 167 [Wireless Settings] Before enabling Wireless, set up a wireless module first. For details, see 6.7.2 Wireless-Client Mode. Then you can select the Dynamic IP Address or Static IP Address in this section for the wireless LAN. By default, the following static IP address will be applied for wireless connection.
Page 168: Wireless-Client Mode
Remote Configurations 6.7.2 Wireless-Client Mode To use the wireless function, a wireless LAN USB Adaptor is required. For supported wireless LAN adaptors, see Appendix A. Figure 6-30 Network type: Select the network mode Ad Hoc or Infrastructure.  Infrastructure: Via the Access Point to connect to the Internet. This mode further ...
Page 169 WEP (Wired Equivalent Privacy): A type of data encryption. Type up to four WEP  Keys in HEX or ASCII format. Note that if you use HEX format, only digits 0-9 and letters A-F, a-f are valid. WPAPSK-TKIP and WPA2PSK-TKIP: Type WPA-PSK (Pre-Shared Key) for data ...
Page 170: Advanced Tcp/Ip
Remote Configurations 6.7.3 Advanced TCP/IP This section introduces the advanced TCP/IP settings, including DDNS server, HTTP port, HTTPS port, streaming port and UPnP. Figure 6-31...
Page 171 2. Service Provider: Select the DDNS service provider you have registered with. 3. Host Name: Type the host name used to link to the GV-Compact DVR V3. For the users of GeoVision DDNS Server, it is unnecessary to fill the field because the system will detect the host name automatically.
Page 172 1. The DLNA function is only supported with Windows Media Player version 1.1 or later. You must have installed GeoVision codec from the Software CD/DVD or have accessed the GV-Compact DVR V3 Web interface on the computer with Windows Media Player.
Page 173: Umts/Zigbee
6.7.4 UMTS / ZigBee UMTS stands for Universal Mobile Telephone System. UMTS is a third-generation (3G) broadband, packet-based transmission of text, digitized voice, video, and multimedia at data rates up to 2 megabits per second. UMTS offers a consistent set of services to mobile computer and phone users, no matter where they are located in the world.
Page 174 Remote Configurations [UMTS Settings] PIN number: Type the PIN number that is provided by your network operator.  Access Point Name (APN): Type Access Point Name that is provided by your network  operator. Username: Type a valid username to enable the UMTS service from your network ...
Page 175: Multicast
6.7.5 Multicast Note the Multicast function is only available for the four-channel GV-Compact DVR V3. The multicast provides a mechanism for sending a single video and audio stream to a group of hosts. Only the hosts that have joined a multicast group can send and receive the multicast streams.
Page 176 Remote Configurations Enable Encryption: Enable this option and type the Encryption Key to secure multicast  streams. The hosts in the multicast group will need to enter the Key to access the video and audio streams. Enable Audio callback: Enable this option to receive audio broadcasting from the hosts ...
Page 177: Ip Filtering
6.7.6 IP Filtering The Administrator can set IP filtering to restrict access to the GV-Compact DVR V3. Figure 6-34 To enable the IP Filter function: 1. Enable IP Filtering: Enable the IP Filtering function. 2. Filtered IP: Type the IP address you want to restrict the access. 3.
Page 178: Snmp Setting
Remote Configurations 6.7.7 SNMP Setting The Simple Network Management Protocol (SNMP) allows you to monitor the status of the camera through SNMP network management software. Figure 6-35 1. Select Enable SNMPv1 SNMPv2c to enable the function. 2. To enable access to Read/Write community, type a community string. This will serve as a password to allow read and write access to the camera from the SNMP software.
Page 179: Management
6.8 Management The Management section includes the settings of data and time, storage device and user account. In addition, you can view the firmware version and execute certain system operations. 6.8.1 Date & Time Setting The date and time settings are used for date and time stamps on the image. Figure 6-36...
Page 180 Remote Configurations [Date & Time on Device] Displays the current date and time on the GV-Compact DVR V3. [Time Zone] Sets the time zone for local settings. Select Enable Daylight Saving Time to automatically adjust the GV-Compact DVR V3 for daylight saving time. Type the Start Time and End Time to enable the function.
Page 181: Gps Maps Settings
6.8.2 GPS Maps Settings Note the GPS function is only supported on Anti-Vibration ACC models (GV-LX4C3V, GV-LX8CV1 and GV-LX8CV2). The Anti-Vibration ACC models support the Global Position System (GPS) for active vehicle tracking and location verification. The vehicle location will be tracked on Google Maps. Before using the Google Maps, you must sign up for a Google Maps API key and enter the registered API key in the Google Map API Key field.
Page 182: Storage Settings
Remote Configurations 6.8.3 Storage Settings You need to format the hard drive before using it for recording. Figure 6-38 To add a hard disk: 1. Install the hard drive to the GV-Compact DVR V3. 2. Click the Format button. After the format is complete, the partition information will be displayed.
Page 183 To remove a hard disk: 1. Click the Remove button. 2. When you are prompted to ensure the action, click Yes. The page will be refreshed and the partition information will be cleaned. 3. Remove the hard drive from the GV-Compact DVR V3. [Storage Settings] If the Enable recycling option is selected, when the space of the hard drive is lower than the specified space, the system will either write the data to another device or overwrite the oldest...
Page 184: User Account
Remote Configurations 6.8.4 User Account You can change the login name and password of Administrator, Guest and FTP Server User. [Administrator Account] The default login name and password for Administrator are admin. [Guest User Account] The default login name and password for Guest are guest. [Advanced Settings] ...
Page 185: Log Information
6.8.5 Log Information The Startup time log section contains every start time of the GV-Compact DVR V3. The startup time log is saved on the hard disk, so the log is only available when a hard disk is inserted to the GV-Compact DVR V3. The Debug Messages section contains the dump data used by service personnel for analyzing problems.
Page 186: Tools
Remote Configurations 6.8.6 Tools This section allows you to execute certain system operations and view the firmware version. Figure 6-41...
Page 187 [Host Settings] Enter a descriptive name for the GV-Compact DVR V3. [Auto Reboot Setup] Select Enable to activate automatic reboot and specify the time for reboot in the sub fields below. Day Interval: Type the day interval between reboots.  RebootTime: Use the drop-down list to specify the time for automatic reboot.
Page 188: Acc Settings
Remote Configurations 6.8.7 ACC Settings Note the ACC setting is only supported on Anti-Vibration ACC models (GV-LX4C3V / GV-LX8CV1 / GV-LX8CV2). The ACC setting allows you to specify power-off delay time from 0 to 30 minutes. The GV-Compact DVR V3 will not turn off for the specified delay time after you power off the vehicle.
Page 189: Chapter 7 Remote Recording And Playback
Chapter 7 Remote Recording and Playback The Administrator can remotely start recording to the GV-Compact DVR V3 and play back the recorded files over the TCP/IP network. 7.1 Remote Recording To remotely enable the recording function to the GV-Compact DVR V3: 1.
Page 190: Playback Of Files Recorded On Hard Drive
Remote Recording and Playback 7.2.1 Playback of Files Recorded on Hard Drive You can play back the files recorded on the hard drive by connecting it to a computer or GV-System. However, the files recorded on the GV-Compact DVR V3 are of Linux file system. To enable Windows to recognize the files, you need to install the Ext2Fsd program, an ext2 file system driver for Windows, from the Software CD/DVD.
Page 191 3. For the first-time installation, launch the Ext2Fsd Service. a. From the Ext2 Volume Manager window, select Tools and select Service Management. This dialog box appears. Figure 7-2 b. Click Apply. 4. Mount the hard drive to your computer. a. From the Ext2 Volume Manager window, right-click the hard drive and select Ext2 Management.
Page 192 Remote Recording and Playback c. On the Ext2 Volume Manager window, the hard drive is successfully mounted to your computer when it is indicated with the disk drive you specified. Figure 7-4 5. Access the recording files from the specified disk drive of your computer. 6.
Page 193 Note: Ext2Fsd program supports Windows 2000 / XP / 2003 / Vista / 7 / 8 / Server 2012 (32-bit and 64-bit). If you are using Windows 8 and Windows Server 2012, change its compatibility before installing the Ext2Fsd program: Right-click the Ext2Fsd program and select Properties.
Page 194: Playback Over Network
Remote Recording and Playback 7.2.2 Playback over Network You can remotely play back the files recorded on the GV-Compact DVR V3 over network. 1. The Administrator needs to allow the playback access with ViewLog Server activated. See 6.3.8 ViewLog Server to enable the server. 2.
Page 195: Access To The Recorded Files Through Ftp Server
You can play back the video files using Windows Media Player. You can also install the Remote Playback player from the Software CD/DVD for playback. Note: To play back video, ensure you have installed GeoVision codec on the computer. The codec is available on the Software CD/DVD. If you have installed the Remote Playback player on the computer, it is not required to install the codec.
Page 196 Remote Recording and Playback To play back video using the Remote Playback player: 1. Install and run the Remote Playback player from the Software CD/DVD. 2. When the Remote ViewLog player is opened, you will be prompted to select Remote ViewLog Service or Remote Storage System.
Page 197: Playback Of Gps Tracks
6. The Event List appears on the player. Select the desired event for playback. Note: The AVI file recorded during the Daylight Saving Time (DST) period is named with the prefix “GvDST”, e.g. GvDST20081022xxxxxxxxx.avi, to differentiate from the regular AVI file named with the prefix “Event”, e.g.
Page 198 Remote Recording and Playback 3. To select a map API (Application Program Interface), click the Tools button and click Select Map API. This dialog box appears. Figure 7-10 4. In Please Select a Map API, select a Map API. For Google Maps, you need to sign up for an API key from Google website (http://code.google.com/apis/maps/signup.html), and enter the API key in the Please enter the map authorization key or license key field.
Page 199 Note: 1. The playback function is only compatible with GV-System version 8.3 or later. 2. If you like to use the maps created yourself, overwrite the files at :\GV folder\GIShtm-User, and select User Defined from the “Please Select a Map API” drop-down list (Figure 7-7).
Page 200: Chapter 8 Advanced Applications
This chapter introduces more advanced applications. 8.1 Upgrading System Firmware GeoVision will periodically release the updated firmware on the website. The new firmware can be simply loaded into the GV-Compact DVR V3 over the network or by using the IP Device Utility included in the Software CD/DVD.
Page 201: Using The Web Interface
8.1.1 Using the Web Interface 1. In the Live View window, click the Show System Menu button (No. 12, Figure 5-6), select Remote Config, and click the Firmware Upgrade tab. This dialog box appears. Figure 8-1 2. Click the Browser button to locate the firmware file (.img) saved at your local computer. 3.
Page 202: Using The Ip Device Utility
Advanced Applications 8.1.2 Using the IP Device Utility The IP Device Utility provides a direct way to upgrade the firmware to multiple units of the GV-Compact DVR V3. 1. Insert the Software CD/DVD, select IP Device Utility, and follow the onscreen instructions to install the program.
Page 203 5. Click the Firmware Upgrade tab. This dialog box appears. Figure 8-4 6. Click the Browse button to locate the firmware file (.img) saved at your local computer. 7. If you like to upgrade all the GV-Compact DVR V3s in the list, select Upgrade all devices.
Page 204: Backing Up And Restoring Settings
Advanced Applications 8.2 Backing Up and Restoring Settings With the IP Device Utility included in the Software CD/DVD, you can back up the configurations in the GV-Compact DVR V3 and restore the backup data to the current unit or import it to another unit. 8.2.1 Backing Up the Settings 1.
Page 205: Restoring The Settings
8.2.2 Restoring the Settings 1. In Figure 8-3, click the Import Settings tab. This dialog box appears. Figure 8-6 2. Click the Browse button to locate the backup file (.dat). 3. Select Password Settings to restore the password settings, if necessary. 4.
Page 206: Gps Tracking
Advanced Applications 8.3 GPS Tracking The Anti-Vibration ACC models of the GV-Compact DVR V3 support the Global Position System (GPS) for active vehicle tracking and location verification. The vehicle location will be tracked by Google Maps. To track the location of your GV-Compact DVR V3: Connect the GV-GPS module with PS/2 connector to the GPS port on the rear panel of the unit.
Page 207 To track the GV-Compact DVR V3 on Google Maps, click Open. A warning message appears. Figure 8-8 Right-click the warning message and select Allow Blocked Content. The map will be displayed. The icon indicates the location of your GV-Compact DVR V3. At the upper right corner you have options to view different map formats, such as Satellite and Hybrid.
Page 208: Restoring To Factory Default Settings
Advanced Applications 8.4 Restoring to Factory Default Settings To restore the GV-Compact DVR V3 to default settings, use the Reset and Default buttons on the front panel. For the location of the two buttons see 2.1 Front Panel. 1. Press and then release the Reset button immediately. 2.
Page 209: Verifying Watermark
8.5 Verifying Watermark The watermark is an encrypted and digital signature embedded in the video stream during the compression stage, protecting the video from the moment of creation. Watermarking ensures that an image is not edited or damaged after it is recorded. To enable the watermark function, see [Watermark], 6.1.1 Video Settings.
Page 210: The Watermark Proof Window
Advanced Applications 8.5.3 The Watermark Proof Window Figure 8-10 The controls in the window: No. Name Description Open File Opens the recorded file. First Frame Goes to the first frame of the file. Play Plays the file. Previous Frame Goes to the previous frame of the file. Next Frame Goes to the next frame of the file.
Page 211: Chapter 9 Smart Device Surveillance
Chapter 9 Smart Device Surveillance Using an Android or Apple device you can receive live video streaming from the GV-Compact DVR V3. The chart below lists the available remote viewers for GV-Compact DVR V3. Handheld Resolution and Codec Default Device OS Supported Features Supported...
Page 212: Android Smartphones And Tablets
Note: For the latest specifications and instructions of the latest version, see the GV-Eye for Android Smartphones & Tablets Installation Guide on our website: http://www.geovision.com.tw/upload/en/mobileap/GV-Eye_AndroidV130.pdf Installing GV-Eye Download GV-Eye from Android Market, and after installing the application, the GV-Eye icon will appear on the desktop.
Page 213: Connecting To Gv-Compact Dvr V3
9.1.1 Connecting to GV-Compact DVR V3 To connect to GV-Compact DVR V3, follow these steps: 1. Tap the GV-Eye icon on you mobile phone. 2. In the address book, tap the Add button to add a GV-Compact DVR V3. Figure 9-2 3.
Page 214 Smart Device Surveillance 4. Click Save to add the GV-Compact DVR V3. Figure 9-4 5. Click ok. The GV-Compact DVR V3 is added to the address book. Figure 9-5 6. In the address book, tap the GV-Compact DVR V3 to access the live view.
Page 215: Iphone Ipod Touch And Ipad
Note: For the latest specifications and instructions of the latest version, see the GV-Eye for iPhone and iPod Touch / GV-Eye HD for iPad Installation Guide on our website: http://www.geovision.com.tw/upload/en/mobileap/GV-EyeV130.pdf Installing GV-Eye / GV-Eye HD You can download GV-Eye / GV-Eye HD from App Store and install the application. The GV-Eye / GV-Eye HD icon will appear on the desktop.
Page 216: Connecting To Gv-Compact Dvr V3
Smart Device Surveillance 9.2.1 Connecting to GV-Compact DVR V3 To connect your iPhone, iPod Touch and iPad to GV-Compact DVR V3, follow these steps: 1. Click the GV-Eye icon on the desktop of your phone. The welcome page appears. 2. Tap the Add button .
Page 217 4. Tap the Save button. The GV-Compact DVR V3 is added to the connection list. Figure 9-8 5. In the connection list, tap the host name to access the live view.
Page 218: Chapter 10 Dvr Configurations
DVR Configurations Chapter 10 DVR Configurations The GV-System provides hybrid solution, integrating the digital videos from GV-Compact DVR V3 with other analog videos. For the digital videos, the GV-System provides the complete video management, such as video viewing, recording, playback, alert settings and almost every feature of the system.
Page 219: Setting Up Gv-Compact Dvr V3
10.1 Setting up GV-Compact DVR V3 To set up a GV-Compact DVR V3 on the GV-System, follow these steps: On the main screen, click the Configure button, select System Configure, select Camera Install and click IP Camera Install. This dialog box appears. Figure 10-2 •...
Page 220: Dvr Configurations
Type the IP address, username and password of the GV-Compact DVR V3. Modify the default HTTP port if necessary. Select GeoVision from the Band drop-down list and select GeoVision Compact DVR from the Device drop-down list. This dialog box appears.
Page 221 Click Apply, and then Close to exit the dialog box. The device information is displayed. Figure 10-5 Right-click the device information and select Display Position to map the IP camera to a channel on the GV-System. The Statue column now should display “Connected”. Click OK. Configuring the Compact DVR Settings After the GV-Compact DVR V3 is connected and assigned with a display position, you can configure settings such as frame rate, codec type and resolution.
Page 222 DVR Configurations Automatically Adjust DST: If enabled, the time on the GV-Compact DVR V3 Web interface will be synchronized with the time of the GV-System when DST period starts or ends on the GV-System.
Page 223: Remote Monitoring With Multi View
10.2 Remote Monitoring with Multi View You can use the Multi View to monitor and manage the cameras and I/O devices connected to the GV-Compact DVR V3. Connecting to GV-Compact DVR V3 The Multi View program is available in the GV-System applications, and also included in the Software CD/DVD as an independent program.
Page 224 DVR Configurations 6. Select Compact DVR from the Device drop-down list. Type the host name, IP address, user name and password of the GV-Compact DVR V3. Modify the default VSS port 10000 if necessary. Figure 10-7 7. Click Save to establish connection. For details on the Multi View functions, see “Multi View Viewer”, Chapter 8 Remote Viewing, DVR User’s Manual on the Surveillance System Software CD/DVD.
Page 225: Remote Monitoring With E-Map
10.3 Remote Monitoring with E-Map You can use the Remote E-Map to monitor and manage the cameras and I/O devices connected to the GV-Compact DVR V3. Creating an E-Map for GV-Compact DVR V3 With the E-Map Editor, you can create an E-Map for the cameras and I/O devices connected to the GV-Compact DVR V3.
Page 226 DVR Configurations For details on creating an E-Map file on the E-Map Server, see “E-Map Server”, Chapter 9 E- Map Application, DVR User’s Manual on the Surveillance System Software CD/DVD. Connecting to GV-Compact DVR V3 Depending on where you save the created E-Map file (GV-System, E-Map Server or Control Center), the steps to open the Remote E-Map window for monitoring may vary slightly.
Page 227: Chapter 11 Cms Configurations
Chapter 11 CMS Configurations This section introduces the related settings to enable connecting to the GV-Compact DVR V3 in the central monitoring stations Center V2, VSM, Dispatch Server and Control Center. 11.1 Center V2 The Center V2 can monitor and manage the cameras and I/O devices connected to the GV- Compact DVR V3.
Page 228 CMS Configurations  To define how to display t he received video on motion detection and input trigger from the GV-Compact DVR V3, click the Preference Setting button and select System Configure. This dialog box appears. Figure 11-3 anual close chan nel: Closes the triggered camera view manually.
Page 229: Vsm
11.2 VSM The VSM can monitor and manage the cameras and I/O devices connected to the GV- Compact DVR V3. The following illustration takes the eight-channel GV-Compact DVR V3 as the example. (Max.) TCP/ IP (Max.) GV-Compact DVR V3 Text Data (Max.) (Max.) GV-Compact DVR V3...
Page 230: Dispatch Server
CMS Configurations 11.3 Dispatch Server The Dispatch Server can manage the cameras and I/O devices connected to GV-Compact DVR V3, and distribute them to the Center V2. The following illustration takes the eight- channel GV-Compact DVR V3 as the example. (Max.) TCP/ IP (Max.)
Page 231: Control Center
11.4 Control Center With the Matrix View function, the Control Center can display up to 96 cameras from different hosts on the same screen. The following illustration takes the eight-channel GV-Compact DVR V3 as the example. Figure 11-8  To create a host of the GV-Compact DVR V3, click the Host List button on the toolbar, right-click the Host List window and select Add Compact DVR.
Page 232 CMS Configurations  To run Matrix View, highlight a Group at the Control Center, and click the Matrix button For details on how to mange the received video from the GV-Compact DVR V3, see GV- CMS Series User’s manual.
Page 233: Chapter 12 The I/O Terminal Block
Chapter 12 The I/O Terminal Block The I/O terminal block, located on the rear panel, can be used to develop applications for alarm input and output, motion detection, PTZ control, GPS tracking or a variety of other functions. 12.1 Pin Assignment 12.1.1 The Four-Channel Unit Figure 12-1 Function...
Page 234: The Eight-Channel Unit
The I/O Terminal Block 12.1.2 The Eight-Channel Unit 2 4 6 8 10 12 14 16 18 20 22 24 1 3 5 9 11 13 15 17 19 21 Figure 12-2 Function Function Digital Output 1 Digital Output 7 Digital Input 1 Digital Input 7 Digital Output 2...
Page 235: Output Devices
12.2 Output Devices 12.2.1 The Four-Channel Unit The relay outputs on the terminal block can only drive a maximum load of 0.3A 125V AC or 1A 30V DC. Working in conjunction with the GV-Relay V2, which is an optional product, the GV-Compact DVR V3 can drive heavier loads.
Page 236: The Eight-Channel Unit
The I/O Terminal Block 12.2.2 The Eight-Channel Unit The digital outputs on the terminal block can only drive a maximum load of 0.15A DC. Working in conjunction with the GV-Relay V2, which is an optional product, the GV-Compact DVR V3 can drive heavier loads. GV-Compact DVR V3 Without GV-Relay V2 With GV-Relay V2...
Page 237 The eight-channel GV-Compact DVR V3 can connect to up to two GV-Relay V2 modules. To connect the GV-Relay V2 modules to the GV-Compact DVR V3, refer to the figure and table below. 2 4 6 8 10 12 14 16 18 20 22 24 Output Devices 1-4 1 3 5...
Page 238: Camera Power Supply
The I/O Terminal Block 12.3 Camera Power Supply 12.3.1 The Four-Channel Unit The cameras can be powered through GV-Compact DVR V3. Using the supplied Camera Power Cable, connect the black wire to Pin 10 and the red wire to Pin 11. 8 10 12 14 16 9 11 13 15 Figure 12-5...
Page 239: The Eight-Channel Unit
12.3.2 The Eight-Channel Unit The cameras can be powered through GV-Compact DVR V3. Using the two supplied Camera Power Cables, connect the black wire to any of Pin 18 and Pin 20, and the red wire any of Pin 17 and Pin 19. 8 10 12 14 16 18 20 22 24 9 11 13 15 17 19 21...
Page 240: Specifications: The Four-Channel Unit
Specifications: The Four-Channel Unit Specifications: The Four-Channel Unit Video GV-LX4C3V Model GV-LX4C3D1 GV-LX4C3D2 GV-LX4C3D2W (ACC Model) Video Standard NTSC, PAL Video Input/Output 4 Videos In, 4 Loops Out Compression H.264 30 fps/ch at resolution of 704 x 480 (NTSC) Frame Rate 25 fps/ch at resolution of 704 x 576 (PAL) 704 x 480, 704 x 480 De-interlace, 352 x 240 NTSC...
Page 241 Management GV-LX4C3V Model GV-LX4C3D1 GV-LX4C3D2 GV-LX4C3D2W (ACC Model) Trigger Time, Sensor Input Triggered, Motion Detected  Store video to HDD (AVI format)  Event Send e-mails with captured images  Management Action Upload captured images to FTP Server  Monitor through Center V2, VSM and GV-GIS ...
Page 242: External Interface
Specifications: The Four-Channel Unit External Interface GV-LX4C3V Model GV-LX4C3D1 GV-LX4C3D2 GV-LX4C3D2W (ACC Model) Audio/Video Input D-Type, DB 15 connector (4 Videos In, 4 Audios In) D-Type, DB 15 connector (1 TV Out, 1 Spot Out, 1 VGA Out, 1 Audio Out, Audio/Video Output 4 Video Loops Out) Sensor Input...
Page 243 Currently 3 TB HDD is not supported. For 2.5" HDD, the HDD converter is required from GeoVision. The CD-R and CD-RW backup are not supported. Regulatory...
Page 244: Specifications: The Eight-Channel Unit
Specifications: The Eight-Channel Unit Specifications: The Eight-Channel Unit Video GV-LX8CV1 GV-LX8CV2 Model GV-LX8CD1 GV-LX8CD2 GV-LX8CD2W (ACC Model) (ACC Model) Video Standard NTSC, PAL Video Input/Output 8 Videos In, 8 Loops Out Compression H.264 15 fps/ch at resolution of 704 x 480 (NTSC) Frame Rate 12.5 fps/ch at resolution of 704 x 576 (PAL) 704 x 480, 704 x 480 De-interlace, 352 x 240...
Page 245 Currently 3 TB HDD is not supported. For 2.5" HDD, the HDD converter is required from GeoVision. The CD-R and CD-RW backup are not supported.
Page 246 Specifications: The Eight-Channel Unit Network GV-LX8CV1 GV-LX8CV2 Model GV-LX8CD1 GV-LX8CD2 GV-LX8CD2W (ACC Model) (ACC Model)  10/100/1000 Base-T Ethernet  Interface 802.11b/g/n Wireless LAN (optional)  Mobile broadband: UMTS, EDGE, etc. (optional) HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, Protocol 3GPP/ISMA, RTSP, SNMP, QoS (DSCP) Security...
Page 247 Environment GV-LX8CV1 GV-LX8CV2 Model GV-LX8CD1 GV-LX8CD2 GV-LX8CD2W (ACC Model) (ACC Model) Operation Temp. -20 ~ 50 °C (4 ~ 122 °F) Humidity 5 ~ 85% RH (non-condensing) Physical GV-LX8CV1 GV-LX8CV2 Model GV-LX8CD1 GV-LX8CD2 GV-LX8CD2W (ACC Model) (ACC Model) 244 x 176 x 91 244 x 176 x 130 244 x 176 x 130 244 x 258 x 101...
Page 248: Appendix
Appendix Appendix A. Supported Wireless LAN USB Adaptor Vendor Model D-Link DWA-140 (H/W version B1), DWL-G122 (version C1) EDIMAX EW-7318Ug, EW-7718Un, EW-7711UAn Linksys WUSB54GC, WUSB600 (version 1) Pegatron WL-166N11 Note: Linksys WUSB54GC ver. 3 is not supported. B. Supported Mobile Broadband Device Vendor Model Bandluxe...
Page 249: Settings For Internet Explore 8 Or Later
C. Settings for Internet Explore 8 or later If you use Internet Explorer 8 or later, it is required to complete the following setting. 1. Set the Security to Medium-high (default). 2. Enable Allow previously unused ActiveX controls to run without prompt. 3.
Page 250: The Cgi Command
Appendix D. The CGI Command The GV-Compact DVR V3 supports a CGI command function for obtaining a snapshot of the live view without logging in the Web interface. For a GV-Compact DVR V3 with the following details: IP address: 192.168.2.109 Username: admin Password: admin Desired Stream: 1...
Page 251: The Rtsp Command
E. The RTSP Command The GV-Compact DVR V3 can support RTSP protocol for both video and audio streaming. For the RTSP command, enter: rtsp://<IP of the GV-Compact DVR V3:8554/<CH No.>.sdp For example, rtsp://192.168.3.111:8554/CH001.sdp Note: The RTSP server must be enabled on the Web interface. See 6.3.9 RTSP/ 3GPP. Only VLC and QuickTime players are supported for streaming video via RTSP protocol.
Page 252: Supported Ptz Cameras
Appendix F. Supported PTZ Cameras The following table shows the supported PTZ cameras listed on the OSD or the Web interface. Model Name 360 vision (ViD-18COP04) Pelco P AcutVista_SSD-7971D Ademco (Jupiter) Bosch (TC700 / 8560) Bosch_G3 Canon (VCC4 / VCC5i) CBC (GANZ) (ZC-S120 Series) Chiper (CPT-V9KRV) COP (15-CD53W) –...
Page 253 KenKo (DMP23-H1) LG (LPT-OS553HQ) Lilin (PIH) – MLP1 Lilin (PIH-7625) – MLP1 Lilin (PIH-820) – MLP1 MESSOA (D-700 series) MESSOA (SDS600 series) Minking Dome Mintron (54G2AHN / P) NanWang (NVD 2300PNT) NanWangV4.1 (NVD 2300PNT) Panasonic (WV-CS850) Panasonic (WV-CW960) Pelco (Spectra III) Pelco Dome PelcoSpetra Mini Dome ( SD4-WO) Pishion (22X)
Page 254: Default Port Value
Appendix G. Default Port Value HTTP Port Video Streaming Port 10000 E-mail Server FTP Server Center V2 5551 5609 GV-GIS 3356 ViewLog Server 5552 RTSP/TCP Port 8554 RTP/UDP Port 17300-17319...
