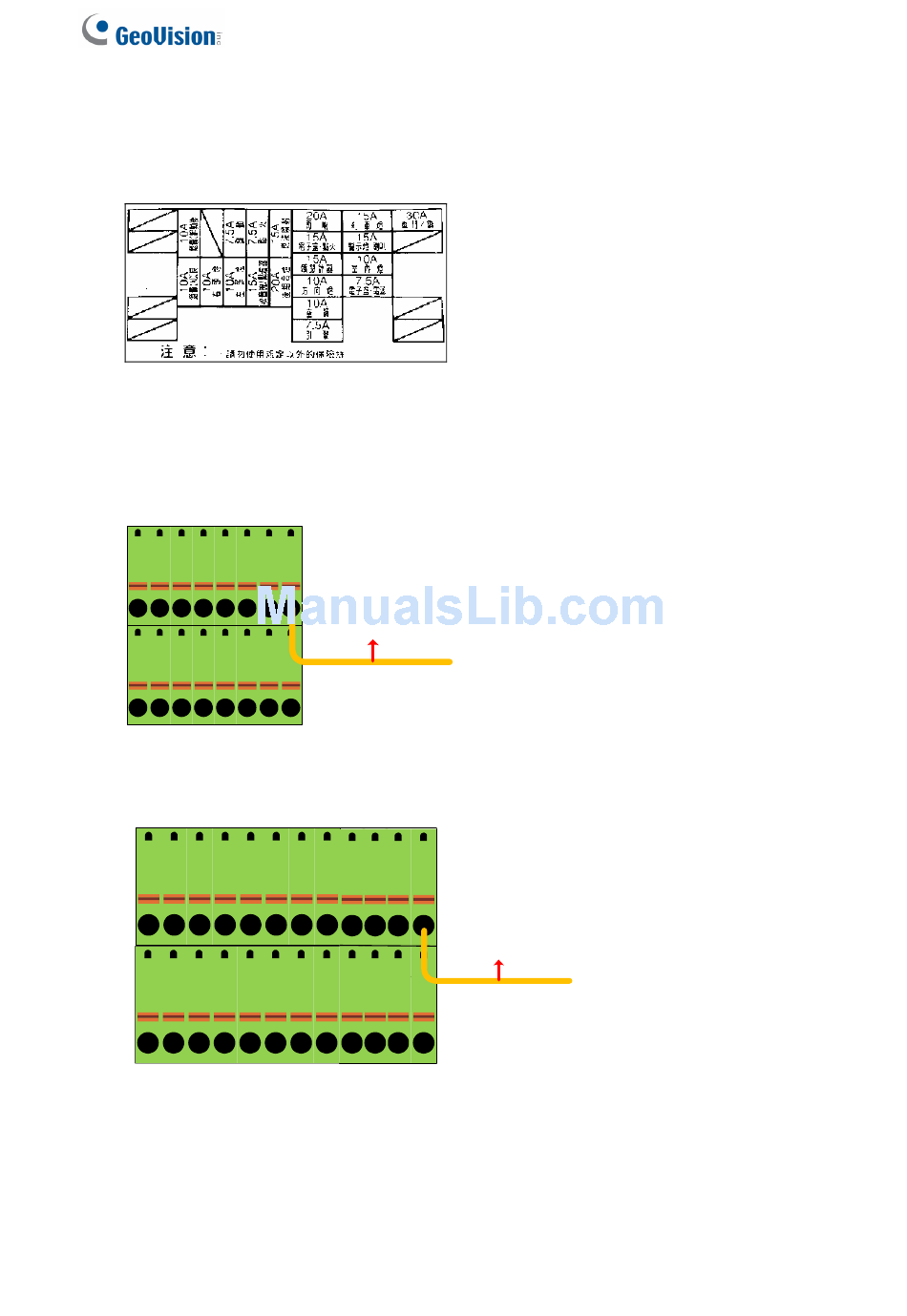

3. Find the fuse specification diagram in the owner's manual, which tells you what each
fuse controls. Look for the fuse location of the "cigarette lighter." The fuse diagram is
sometimes located on the back of the fuse box cover.
Figure 3-8
4. Connect the ACC wire from the cigarette lighter fuse to Pin 16 (4-channel unit) or Pin
24 (8-channel unit) on the terminal block.
2 4 6 8 10 12 14 16
1 3 5 7 9 11 13 15
Terminal Block of 4-Channel Unit
2 4 6 8 10 12
1 3 5 7 9 11
Terminal Block of 8-Channel Unit
Figure 3-9
34
ACC Wire of the Vehicle
14 16 18 20 22 24
ACC Wire of the Vehicle
17 19 21 23
13 15
