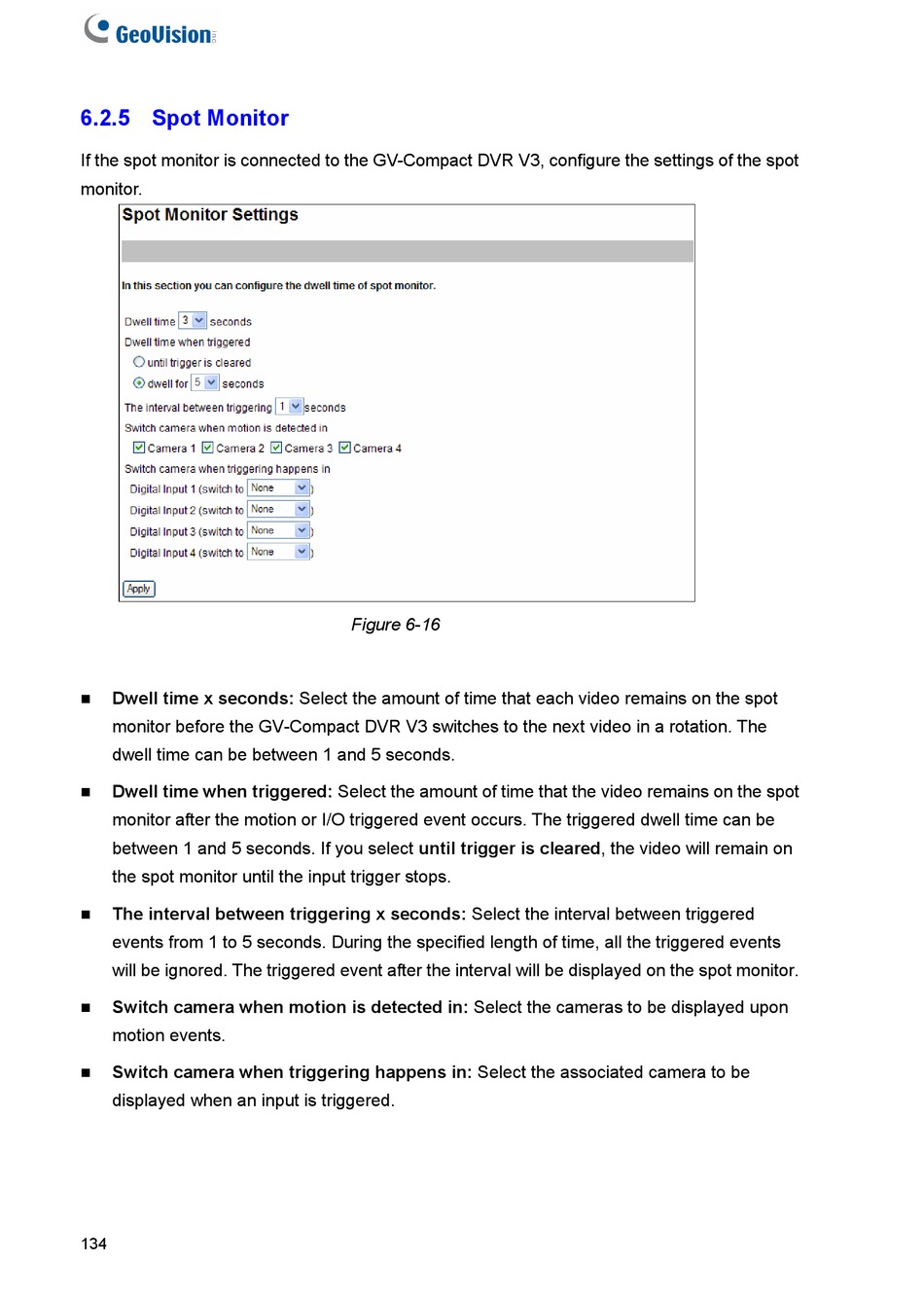

Spot Monitor - GeoVision GV-Compact V3 User Manual

6.2.5 Spot Monitor

If the spot monitor is connected to the GV-Compact DVR V3, configure the settings of the spot
monitor.
Dwell time x seconds: Select the amount of time that each video remains on the spot

monitor before the GV-Compact DVR V3 switches to the next video in a rotation. The
dwell time can be between 1 and 5 seconds.
Dwell time when triggered: Select the amount of time that the video remains on the spot

monitor after the motion or I/O triggered event occurs. The triggered dwell time can be
between 1 and 5 seconds. If you select until trigger is cleared, the video will remain on
the spot monitor until the input trigger stops.
The interval between triggering x seconds: Select the interval between triggered

events from 1 to 5 seconds. During the specified length of time, all the triggered events
will be ignored. The triggered event after the interval will be displayed on the spot monitor.
Switch camera when motion is detected in: Select the cameras to be displayed upon

motion events.
Switch camera when triggering happens in: Select the associated camera to be

displayed when an input is triggered.
134
Figure 6-16
