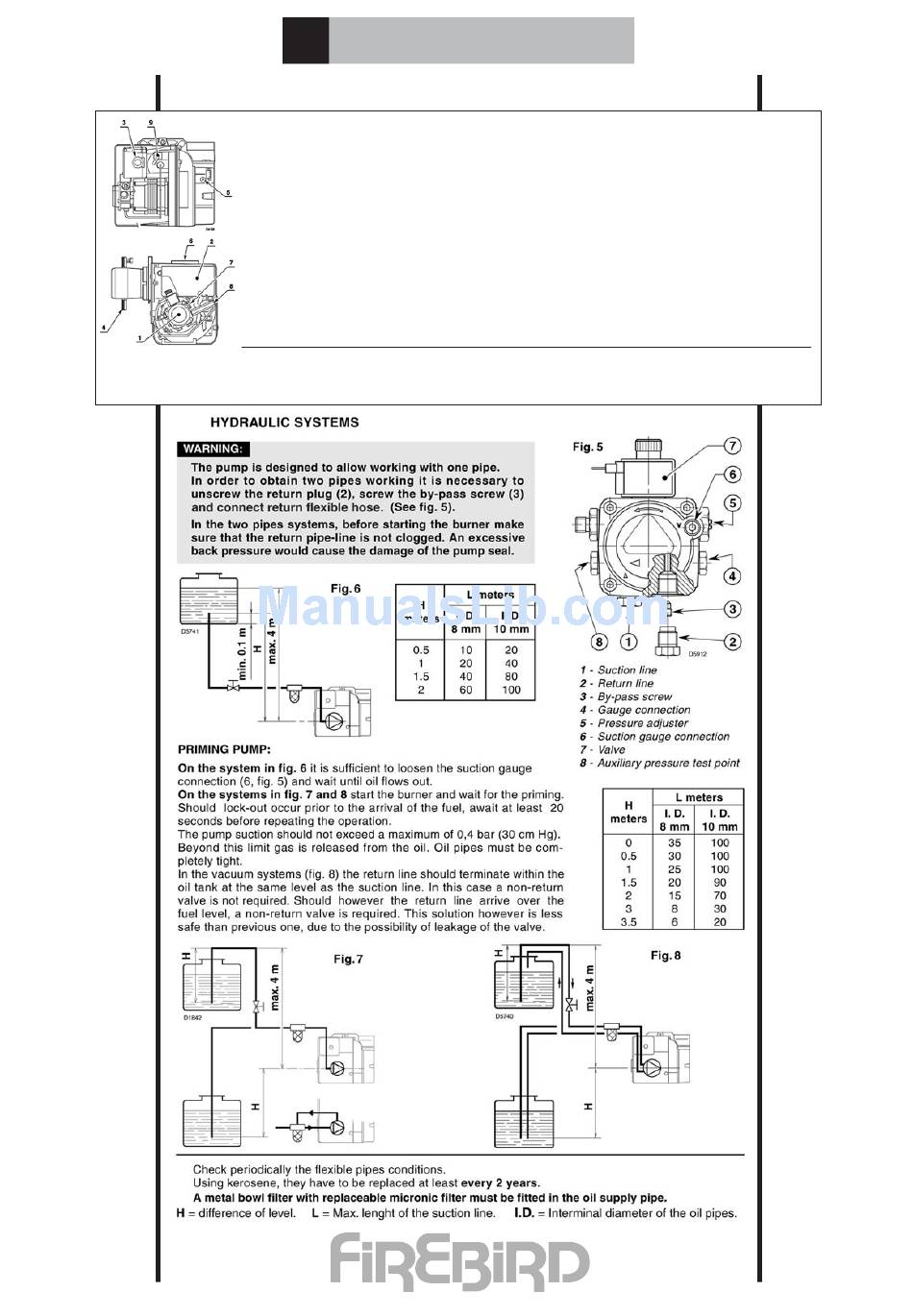

FireBird Combi Range Installation Commissioning Servicing & User Instructions page 9

Burner Description
One stage kerosene and oil burner.
In case of BF applications the intake air temperature must not be over 70C
The burner meets protection level of IP 40, EN 60529.
Burnerwith CE marking in conformity with EEC directives: EMC 89/336/EEC,
Low Voltage 73/23/EEC, Machines 98/37/EEC and Efficiency 92/42/EEC.
Burner Equipment
Flange with insulating gasket............. No.1
Screw and nut for flange................... No.1
Grill (CF Application)........................ No.1
Bolts for flange to be fixed to boiler..No.4
1. Pump
2. Control-box
3. Reset button with lock-out lamp
2
TECHNICAL SPECIFICATION
2-E&F Riello Burner Specification
4. Flange with insulating gasket
5. Air damper adjustment screw
6. Snorkel (BF)
8
Hexagonal Key................................... No.1
Screw of by-pass pump..................... No.1
Flexible oil pipe with nipple.............. No.1
7. Pump pressure adjustment screw
8. Pressure gauge port
9. Photoresistance
