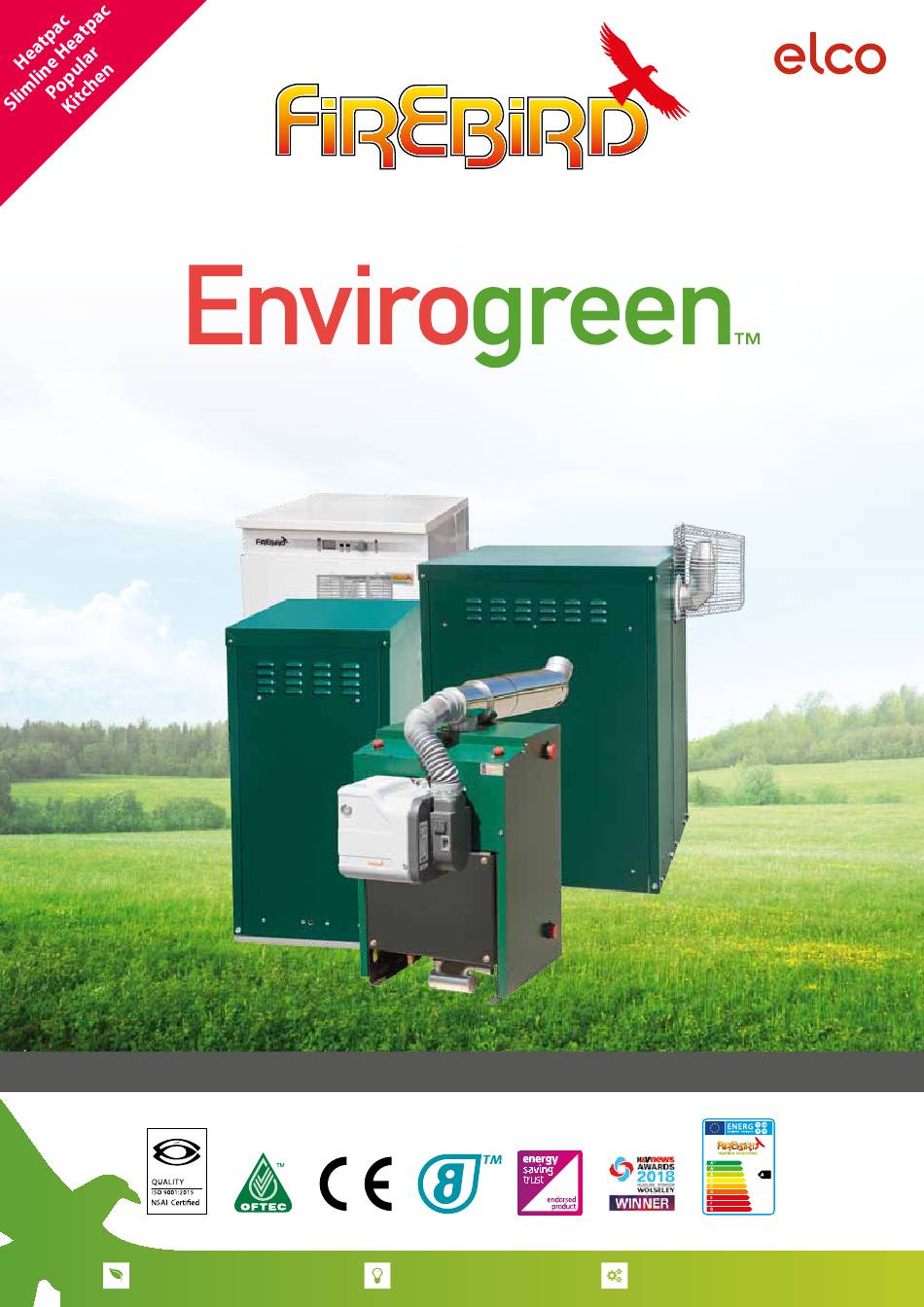

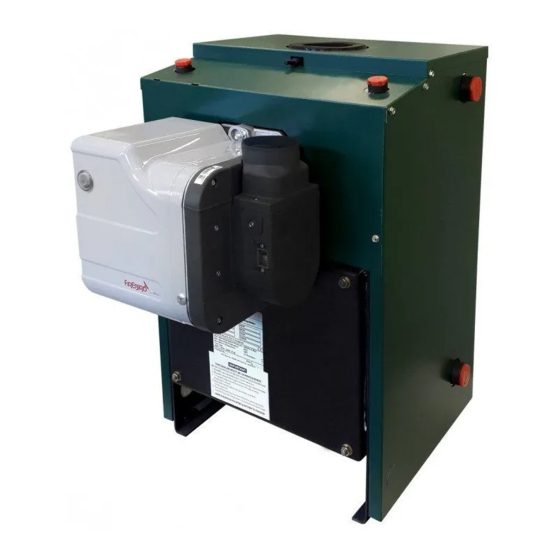

Page 1: Condensing Boiler
HEATING SOLUTIONS condensing BoileR T e c h n ic al M anual Heatpac • Slimline Heatpac • Popular • Kitchen This manual must remain with the householder once installation is complete ENVIRONMENT INNOVA TION TECHNOLOGY... -
Page 2: Table Of Contents
Contents foreWord We would like to thank you for purchasing a high efficiency Firebird condensing liquid fuel boiler with an elco low NOx burner. This instruction manual is produced for the reference and guidance of qualified installation engineers, preferably OFTeC (Oil Firing Technical association) registered. eU legislation governs the manufacture, operation and efficiency of all domestic central heating oil boilers. -
Page 3: Safety
safety safety - conformity was demonstrated by meeting the HealtH & safety InformatIon following standards: The installer should be aware of his/her responsibilities under the current, local Health and Safety at Work act. The interests BS eN 60335-1: 2012 + a13: 2017: Household and Similar of safety are best served if the boiler is installed and electrical appliances - Safety - Part 1: general Requirements commissioned by a competent, qualified engineer, preferably... -
Page 4: Burner Lockout
2.1 oPeratIng ProCedure - HouseHolder InstruCtIons HeatPaC thermostat Control slImlIne HeatPaC PoPular KItCHen Re-set button Temperature control Mode LCD display Led power Set at Max. 80˚C Set at Mid. 70˚C Set at Min. 60˚C light Error lamp Burner lockout Burner lockout re-set button Burner plug... -
Page 5: Kitchen - Electronic Controller
• The green led will light up and the LCD will show the set Warning: Should an error appear on the control panel temperature or “off”. display, consult your service engineer or the Firebird • If “off” appears on the LCD, press the mode button “4” and technical department before attempting to re-set the error. -
Page 6: Standards & Regulations
standards & regulatIons to ensure the highest standards of installation & safety, Regional water supply (water fittings) regulations/ it is important that the boiler be installed in compliance byelaws. with the following regulations where applicable. It is the responsibility of the installer and everyone Regional control of pollution (oil storage) regulations. - Page 7 See Heatpac wiring diagram. ensure that adequate clearance is available for making the water Firebird Kitchen and Heatpac models are factory fitted with an and flue connections. over run thermostat pump. The boiler is serviced from the front and a clearance of 750mm tIme and temPerature Controls must be available at the front of the boiler.
-
Page 8: Condensate Disposal
4.2 InstallatIon - Condensate dIsPosal Firebird condensing boilers, when in condensing mode, extract more heat from the flue products and the resulting condensate which is mildly acidic, needs to be drained from the boiler via a condensate pipe to the drainage system. - Page 9 4.2 InstallatIon - Condensate dIsPosal 500mm Boiler Boiler Discharge Pipe Condensate Drain Sealed 75mm Condensate Drain Trap Gully Free Draining Soil Lime Stone Chippings Soak Away Boiler Washing Boiler Machine Stack Discharge Pipe Condensate Drain Condensate Drain 75mm Waste Pipe Condensate drain must have Gully Trap...
- Page 10 4.2 InstallatIon - Condensate dIsPosal Condensate trap fitting 1. Push washer into trap socket and screw trap onto boiler socket. Washer S/S trap 2. Push flexible pipe onto trap socket. 3. Final assembly.
-
Page 11: Flue Regulations
4.3 InstallatIon - flue regulatIons BalanCed flue sItIng The terminal should be positioned to avoid combustion products entering the building or accumulating in stagnant pockets around buildings. The terminal must be protected by a guard if it is less than 2 metres above ground level or in a position where any person has access to it (i.e. - Page 12 BalanCed flue BoIlers The Firebird boiler may be set for room-sealed flue operation using a Firebird condensing balanced flue kit. This kit does not draw combustion air from inside the room. It is drawn from outside, direct to the burner by an air pipe supplied with the boiler.
-
Page 13: Ventilation And Combustion Air
4.3 InstallatIon - flue regulatIons ventilation and Combustion air Conventional flue Boilers an adequate supply of combustion and ventilation air is essential for efficient and safe boiler operation and the openings for this should be positioned to cause least possible draught, with no possibility of being accidentally blocked. -
Page 14: Flap Valve
4.4 InstallatIon - flaP valve Balanced flue Jubilee clip Flap valve "TOP" mark "TOP" mark Snorkel Jubilee clip Correct position of flap valve. 1. Push the flap valve into the balanced flue air intake. 2. Ensure that the flap valve is in the correct position. -
Page 15: Flue Systems
4.5 InstallatIon - flue systems Condensate Plume disPersal When choosing the location for a condensing boiler, special consideration must be given to the positioning of the flue terminal. Care should be taken to locate it so as to prevent either the end user or their neighbours perceiving the plume to be a nuisance. It should be noted that the normal statutory clearances required around low level flue terminals may not be sufficient to cope with plume dispersal from a condensing boiler. -
Page 16: Flue Size
4.5 InstallatIon - flue systems PLUME KIT CONDENSING BOILER CHIMNEY INSTALLATION Condensing Condensing birdguard birdguard System 35 System 35 clamp plate clamp plate 80 mm 45˚ bend System 35 flexible liner System 35 flexible liner suitable for condensing suitable for condensing applications applications Wall bracket... -
Page 17: Liquid Fuel Supply
4.6 InstallatIon - lIQuId fuel suPPly fuel storage tanK sItIng regulatIons & standards Consult OFTeC Manuals Please consult all local and regional regulations, relevant to water resources (control of pollution and oil It is unlikely that a fire will start at a fuel tank. However, storage) as well as OFTeC Book Three. -
Page 18: Commissioning
Note: internal fall of 2.5˚ within the flue. of installation (this can also be done online on the u For concentric balanced flue: firebird website). a copy should be retained by the - the cone supplied should be inserted in to the end commissioning engineer. -
Page 19: Servicing
BoIler Remove combustion access door for access to baffles and to clean heat exchanger. Cleaning a firebird condensing boiler: 1. Remove all baffles, including the tubular baffles in the condensing section and clean them. 2. Remove the condensate trap and clean it, place a tray under the connection for the trap. -
Page 20: Heatpac
7.1 envIrogreen HeatPaC - teCHnICal detaIls & dImensIons Weight kg dimensions (mm) model - envirogreen (incl. burner) (output range) envirogreen Heatpac 12-18kW envirogreen Heatpac 12-20kW envirogreen Heatpac 20-26kW envirogreen Heatpac 26-35kW envirogreen Heatpac 36-44kW 1074 839 envirogreen Heatpac 58kW 1074 839... -
Page 21: Slimline Heatpac
7.2 envIrogreen slImlIne HeatPaC - teCHnICal detaIls & dImensIons Weight kg dimensions (mm) model - envirogreen (incl. burner) (output range) envirogreen slimline Heatpac 12-20kW 920 465 760 794 115 104 116 145 277 126 415 envirogreen slimline Heatpac 20-26kW 920 465 760 794 115 104 116 145 277 126 415 envirogreen slimline Heatpac 26-35kW 920 465 760 794 115 104 116 145 277 126 415 Heat output... -
Page 22: Popular
7.3 envIrogreen PoPular - teCHnICal detaIls & dImensIons Front View Side View Top View model - envirogreen Weight kg dimensions (mm) (output range) (incl. burner) envirogreen Popular 12-18kW envirogreen Popular 12-20kW envirogreen Popular 20-26kW envirogreen Popular 26-35kW envirogreen Popular 36-44kW envirogreen Popular 58kW envirogreen Popular 73kW 1024... -
Page 23: Kitchen
7.4 envIrogreen KItCHen - teCHnICal detaIls & dImensIons Front View Side View Top View Model Output Weight Dimensions(mm) model - envirogreen Weight dimensions (mm) Enviromax (output range) Kitchen 12-18kW 12-18 envirogreen Kitchen 12-18kW 847 345 610 753 157 124 502 336 Kitchen 12-20kW 15-20 envirogreen Kitchen 12-20kW... -
Page 24: Heatpac
8.1 envIrogreen HeatPaC - Parts For: 36-44 kW, 58 kW, 73 kW Qty Description 12-18 kW 12-20 kW 20-26 kW 26-35 kW 36-44 kW 58 kW 73 kW Tube baffle BA110907 BA110907 BA110907 BA110907 BA111503 BA111503 BA111503 Tube baffle single BA110908 BA110908 BA110908... -
Page 25: Slimline Heatpac
8.2 envIrogreen slImlIne HeatPaC - Parts Description 12-20 kW 20-26 kW 26-35 kW Tube baffle BA110907 BA110907 BA110907 Tube baffle single BA110908 BA110908 BA110908 Smoke baffle BA212022 BA212028 BA212122 Door seal ACC035GRA ACC035GRA ACC035GRA Door duroboard ACC035GSK ACC035GSK ACC035GSK Flue gasket ACC000FRG ACC000FRG ACC000FRG... -
Page 26: Popular
8.3 envIrogreen PoPular - Parts For: 36-44kW, 58 kW, 73 kW, 80-100 kW Description 12-18 kW 12-20 kW 20-26 kW 26-35 kW 36-44 kW 58 kW 73 kW 80-100 kW Tube baffle BA110907 BA110907 BA110907 BA110907 BA111503 BA111503 BA111503 BA111503 Tube baffle single BA110908 BA110908... -
Page 27: Kitchen
8.4 envIrogreen KItCHen - Parts For: 36-44 kW, 58 kW, 73 kW, 80-100kW no. Qty Description 12-18 kW 12-20 kW 20-26 kW 26-35 kW 36-44 kW 58 kW 73 kW 80-100 kW Tube baffle BA110907 BA110907 BA110907 BA110907 BA111503 BA111503 BA111503 BA111503 Tube baffle single... -
Page 28: Heatpac
9.1 envIrogreen HeatPaC - WIrIng eleCtrICal suPPly 230v 50Hz mains electric supply protected with a 5a fuse. this appliance must be earthed. a qualified electrician must carry out all electric wiring in accordance with current I.e.e Regulations and any local regulations which may apply. -
Page 29: Slimline Heatpac
9.2 envIrogreen slImlIne HeatPaC - WIrIng eleCtrICal suPPly 230v 50Hz mains electric supply protected with a 5a fuse. this appliance must be earthed. a qualified electrician must carry out all electric wiring in accordance with current I.e.e Regulations and any local regulations which may apply. -
Page 30: Popular
9.3 envIrogreen PoPular - WIrIng eleCtrICal suPPly 230v 50Hz mains electric supply protected with a 5a fuse. this appliance must be earthed. a qualified electrician must carry out all electric wiring in accordance with current I.e.e Regulations and any local regulations which may apply. -
Page 31: Kitchen
9.4 envIrogreen KItCHen - WIrIng eleCtrICal suPPly 230v 50Hz mains electric supply protected with a 5a fuse. this appliance must be earthed. a qualified electrician must carry out all electric wiring in accordance with current I.e.e Regulations and any local regulations which may apply. -
Page 32: Terms & Conditions Of Warranty
5 years on the boiler shell and 2 years unqualified persons. on all other parts from date of installation, provided 8. Firebird will not accept any liability in respect of any installation has occurred within 12 months from date defect occurring to the product due to limescale of purchase. -
Page 33: Product Fiche
ProduCt fICHe ErP A Rated Auxiliary Electrical Consumption Seasonal Rated heat Annual energy Sound power Efficiency Energy Full Part Stand by output consumption level Model Base Model efficiency Load Load Mode Identifier class elmax elmin (kW) (kW) (kW) ENVIROGREEN KITCHEN 12-18kW 0.187 0.057... - Page 36 © Copyright applies to all FIReBIRD products. Our policy is one of continual development and we therefore reserve the right to change without prior notice the specification of our products at any time and be without obligation to make similar changes in products previously produced.
