HEATING SOLUTIONS
Enviromax
CondEnsing BoilErs
T EC h n iC al manual
Heatpac • Slimline Heatpac • Popular • Kitchen
This manual must remain with the householder once installation is complete
Working towards a greener planet

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Heatpac 12-18kW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

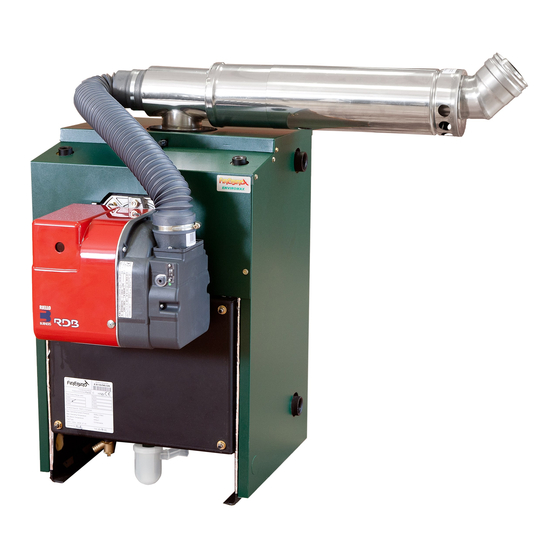

Summary of Contents for FireBird Heatpac 12-18kW

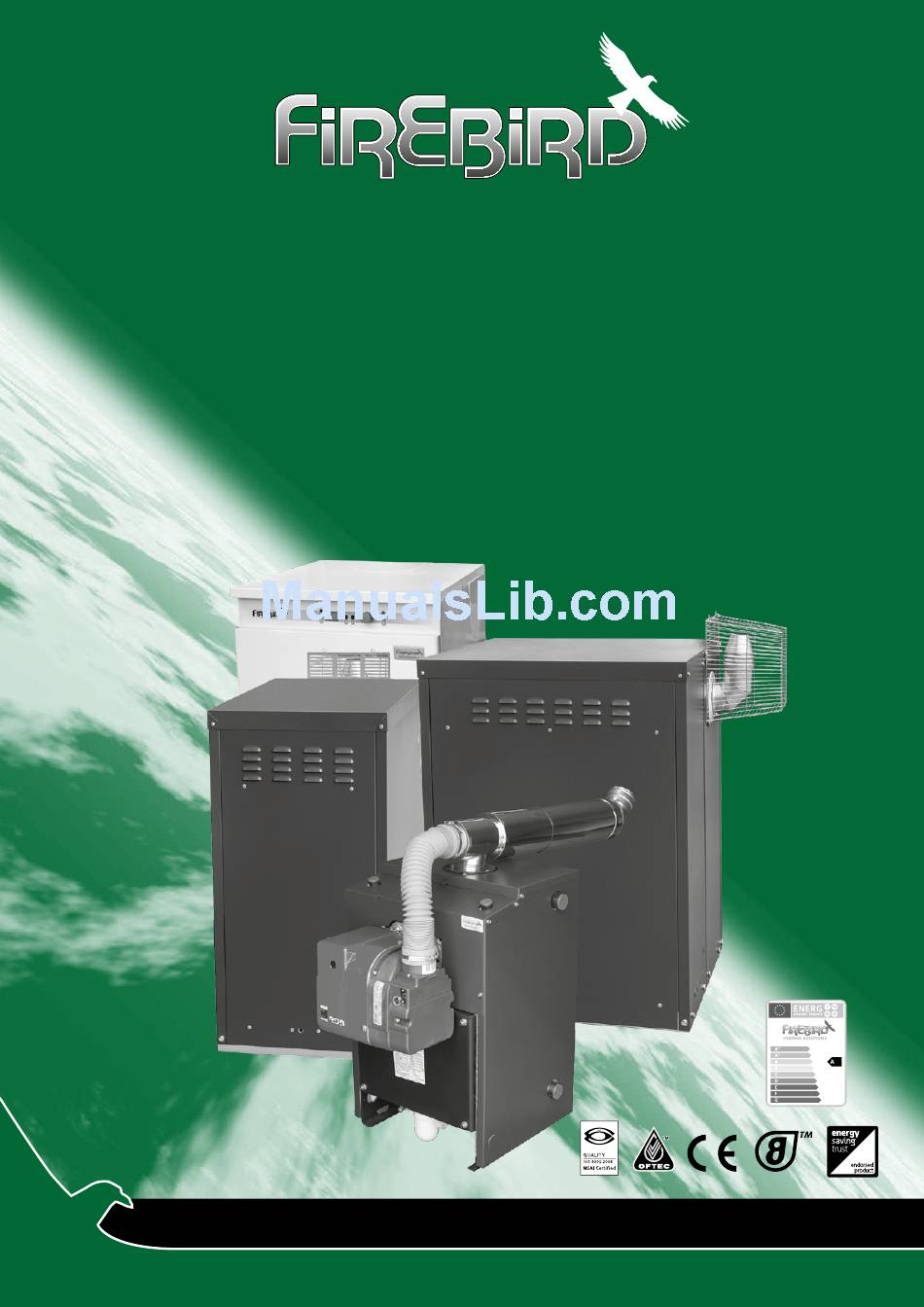

  • Page 1 HEATING SOLUTIONS Enviromax CondEnsing BoilErs T EC h n iC al manual Heatpac • Slimline Heatpac • Popular • Kitchen This manual must remain with the householder once installation is complete Working towards a greener planet...
  • Page 2: Table Of Contents

    Contents foreWord We would like to thank you for purchasing a high efficiency Firebird condensing oil boiler. This instruction manual is produced for the reference and guidance of qualified installation engineers, preferably OFTeC (Oil Firing Technical association) registered. eU legislation governs the manufacture, operation and efficiency of all domestic central heating oil boilers.
  • Page 3: Safety

    safety safety - conformity was demonstrated by meeting the HealtH & safety InformatIon following standards: The installer should be aware of his/her responsibilities under the current, local Health and Safety at Work act. The interests eN60335-1: 2012: Household and Similar electrical appliances of safety are best served if the boiler is installed and - Safety - Part 1: general Requirements commissioned by a competent, qualified engineer, OFTeC...
  • Page 4 2.1 oPeratIng ProCedure - HouseHolder InstruCtIons HeatPaC thermostat Control slImlIne HeatPaC PoPular KItCHen Set at Max. 80˚C Set at Mid. 70˚C Set at Min. 60˚C Re-set button Temperature control Mode LCD display Led power Burner lockout light Error lamp The boiler is factory fitted with a burner control box lockout safety feature which operates automatically if a fault occurs in the burner operation.
  • Page 5: Kitchen - Electronic Controller

    • The green led will light up and the LCD will show the set Warning: Should an error appear on the control panel temperature or “off”. display, consult your service engineer or the Firebird • If “off” appears on the LCD, press the mode button “4” and technical department before attempting to re-set the error.
  • Page 6: Standards & Regulations

    standards & regulatIons to ensure the highest standards of installation & safety, In addition, the work must comply with relevant it is important that the boiler be installed in compliance building regulations for oil fired boilers and oil with the following regulations where applicable. It storage tanks.
  • Page 7: Installation

    See Heatpac wiring diagram. ensure that adequate clearance is available for making the water and flue connections. Firebird Kitchen and Heatpac models are factory fitted with an over run thermostat pump. The boiler is serviced from the front and a clearance of 750mm must be available at the front of the boiler.
  • Page 8 4.2 - InstallatIon - Condensate dIsPosal Firebird condensing boilers, when in condensing mode, extract more heat from the flue products and the resulting condensate which is mildly acidic, needs to be drained from the boiler via a condensate pipe to the drainage system.
  • Page 9: Boiler

    4.2 - InstallatIon - Condensate dIsPosal 500mm Boiler Boiler Condensate Drain Condensate Drain Sealed Trap Condensate Drain Trap Gully Free Draining Soil Lime Stone Chippings Soak Away Boiler Washing Boiler Machine Stack Condensate Drain Condensate Drain Waste Pipe Trap Condensate drain must have Trap Gully a minimum diameter of 22mm...
  • Page 10 4.2 - InstallatIon - Condensate dIsPosal Condensate trap fitting 1. Push screw cap into Connector connector and screw onto socket. Seal Screw cap 2. Place cone into frame and float into cone. Float Seal Cone Frame 3. Screw frame with cone and float into connector.
  • Page 11: Flue Regulations

    4.3 - InstallatIon - flue regulatIons BalanCed flue sItIng The terminal should be positioned to avoid combustion products entering the building or accumulating in stagnant pockets around buildings. The terminal must be protected by a guard if it is less than 2 metres above ground level or in a position where any person has access to it (i.e.
  • Page 12 BalanCed flue BoIlers The Firebird boiler may be set for room-sealed flue operation using a Firebird condensing balanced flue kit. This kit does not draw combustion air from inside the room. It is drawn from outside, direct to the burner by an air pipe supplied with the boiler.
  • Page 13: Ventilation And Combustion Air

    4.3 - InstallatIon - flue regulatIons ventilation and Combustion air Conventional flue Boilers an adequate supply of combustion and ventilation air is essential for efficient and safe boiler operation and the openings for this should be positioned to cause least possible draught, with no possibility of being accidentally blocked.
  • Page 14: Flap Valve

    4.4 - InstallatIon - flaP valve Balanced flue Jubilee clip Flap valve "TOP" mark "TOP" mark Snorkel Jubilee clip Correct position of flap valve 1. Push the flap valve into the balanced flue air intake. 2. Ensure that the flap valve is in the correct position.
  • Page 15: Flue Systems

    4.5 - InstallatIon - flue systems Condensate Plume disPersal When choosing the location for a condensing boiler, special consideration must be given to the positioning of the flue terminal. Care should be taken to locate it so as to prevent either the end user or their neighbours perceiving the plume to be a nuisance. It should be noted that the normal statutory clearances required around low level flue terminals may not be sufficient to cope with plume dispersal from a condensing boiler.
  • Page 16: Flue Size

    4.5 - InstallatIon - flue systems PLUME KIT CONDENSING BOILER CHIMNEY INSTALLATION Condensing Condensing birdguard birdguard System 35 System 35 clamp plate clamp plate 80 mm 45˚ bend System 35 flexible liner System 35 flexible liner suitable for condensing suitable for condensing applications applications Wall bracket...
  • Page 17 4.6 - InstallatIon - oIl suPPly oIl storage tanK sItIng regulatIons & standards Consult OFTeC Manuals In england and Wales, installation in single family dwellings have to comply with the building Regulations It is unlikely that a fire will start at an oil tank. However, Part J.
  • Page 18: Oil Supply

    Set the air to what is required for the nozzle size +. 5 on the dial - example: the factory setting for a Firebird 26kW u the system should be checked thoroughly. has a Danfoss .65 80° eS nozzle with a pump pressure of 9 bar and air at 2.5.
  • Page 19: Servicing

    3. Check safety operation, pull out the photo cell, cover and make sure the burner locks out. Cleaning a firebird condensing boiler: 4. Check the thermostat operation. 5. allow the boiler to operate for at least two full “on/off”...
  • Page 20: Heatpac

    7.1 - HeatPaC - teCHnICal detaIls & dImensIons dimensions (mm) model - enviromax (output range) Heatpac 12-18kW Heatpac 12-20kW Heatpac 20-26kW Heatpac 26-35kW Heatpac 36-44kW 1074 Heatpac 58kW 1074 Heatpac 73W 1200 1039 Heat output 12-18 12-20/20-26 26-35 36-44/58 ConneCtIons Heating Flow 1”...
  • Page 21 7.2 - slImlIne HeatPaC - teCHnICal detaIls & dImensIons dimensions (mm) model - enviromax (output range) slimline Heatpac 12-20kW slimline Heatpac 20-26kW slimline Heatpac 26-35kW Heat output 12-18 12-20/20-26 26-35 ConneCtIons Heating Flow 1” BSP 1” BSP 1” BSP Heating Return 1”...
  • Page 22: Popular

    7.3 PoPular - teCHnICal detaIls & dImensIons Front View Side View Top View dimensions (mm) model - enviromax Weight kg Burner (output range) (incl. burner) dept Popular 12-18kW Popular 12-20kW Popular 20-26kW Popular 26-35kW Popular 36-44kW Popular 58kW Popular 73kW 1024 155 Popular 80-100kW 1052...
  • Page 23 7.4 - KItCHen - teCHnICal detaIls & dImensIons Front View Side View Top View Model Output Weight Dimensions(mm) model - enviromax Weight dimensions (mm) Enviromax (output range) Kitchen 12-18kW 12-18 Kitchen 12-18kW Kitchen 12-20kW 15-20 Kitchen 12-20kW Kitchen 20-26kW 20-26 Kitchen 20-26kW Kitchen 26-35kW 26-35...
  • Page 24: Heatpac

    8.1 - HeatPaC - Parts For: 36-44 kW, 58 kW, 73 kW HeatPaC Qty Description 12-18 kW 12-20 kW 20-26 kW 26-35 kW 36-44 kW 58 kW 73 kW Tube baffle 110907 110907 110907 110907 111503 111503 111503 Tube baffle single 110908 110908 110908...
  • Page 25: Slimline Heatpac

    8.2 - slImlIne HeatPaC - Parts Description 12-20 kW 20-26 kW 26-35 kW Tube baffle 110907 110907 110907 Tube baffle single 110908 110908 110908 Smoke baffle 212022 212028 212122 Door seal 111314 111314 111314 Door duroboard 110918 110918 110918 Flue gasket 112104 112104 112104...
  • Page 26: Popular

    8.3 - PoPular - Parts For: 36-44kW, 58 kW, 73 kW, 80-100 kW PoPUlar Description 12-18 kW 12-20 kW 20-26 kW 26-35 kW 36-44 kW 58 kW 73 kW 80-100 kW Tube baffle 110907 110907 110907 110907 111503 111503 111503 111503 Tube baffle single 110908...
  • Page 27 8.4 - KItCHen - Parts For: 36-44 kW, 58 kW, 73 kW no. Qty Description 12-18 kW 12-20 kW 20-26 kW 26-35 kW 36-44 kW 58 kW 73 kW 80-100 kW Tube baffle 110907 110907 110907 110907 111503 111503 111503 111503 Tube baffle single 110908...
  • Page 28: Heatpac

    9.1 - HeatPaC - WIrIng eleCtrICal suPPly 230v 50Hz mains electric supply protected with a 5a fuse. this appliance must be earthed. a qualified electrician must carry out all electric wiring in accordance with current I.e.e Regulations and any local regulations which may apply.
  • Page 29 9.2 - slImlIne HeatPaC - WIrIng eleCtrICal suPPly 230v 50Hz mains electric supply protected with a 5a fuse. this appliance must be earthed. a qualified electrician must carry out all electric wiring in accordance with current I.e.e Regulations and any local regulations which may apply.
  • Page 30: Popular

    9.3 - PoPular - WIrIng eleCtrICal suPPly 230v 50Hz mains electric supply protected with a 5a fuse. this appliance must be earthed. a qualified electrician must carry out all electric wiring in accordance with current I.e.e Regulations and any local regulations which may apply.
  • Page 31 9.4 - KItCHen - WIrIng eleCtrICal suPPly 230v 50Hz mains electric supply protected with a 5a fuse. this appliance must be earthed. a qualified electrician must carry out all electric wiring in accordance with current I.e.e Regulations and any local regulations which may apply.
  • Page 32: Kitchen - Electronic Controller

    9.5 - KItCHen - eleCtronIC Controller - WIrIng eleCtrICal suPPly 230v 50Hz mains electric supply protected with a 5a fuse. this appliance must be earthed. a qualified electrician must carry out all electric wiring in accordance with current I.e.e Regulations and any local regulations which may apply.
  • Page 33 The burner nozzle, pump pressure and air setting may have to be changed from the factory setting to suit site conditions. Kerosene settIngs for fIreBIrd BoIler range usIng rdB 2.2 & 4.2 Burners variations in nozzle throughput, flue type & draught, oil viscosity etc. may give results differing from the below laboratory performance figures.
  • Page 34: Terms & Conditions Of Warranty

    5 years on the boiler shell and 2 years unqualified persons. on all other parts from date of installation, provided 8. Firebird will not accept any liability in respect of any installation has occurred within 12 months from date defect occurring to the product due to limescale of purchase.
  • Page 35: Kitchen

    ProduCt fICHe ErP A Rated Seasonal Annual energy Energy Rated heat output Efficiency Sound power level Model consumption efficiency Base Model Identifier class KITCHEN 12-18kW 12-20kW 20-26kW 26-35kW 36-44kW 44-58kW POPULAR 12-18kW 12-20kW 20-26kW 26-35kW 36-44kW 44-58kW HEATPAC or SLIMLINE HEATPAC 12-18kW 12-20kW 20-26kW...
  • Page 36 © Copyright applies to all FIReBIRD products. Our policy is one of continual development and we therefore reserve the right to change without prior notice the specification of our products at any time and be without obligation to make similar changes in products previously produced.
