FireBird System 90 Technical Manual

Standard efficiency indoor boiler
Hide thumbs Also See for System 90:

Advertisement

Table of Contents

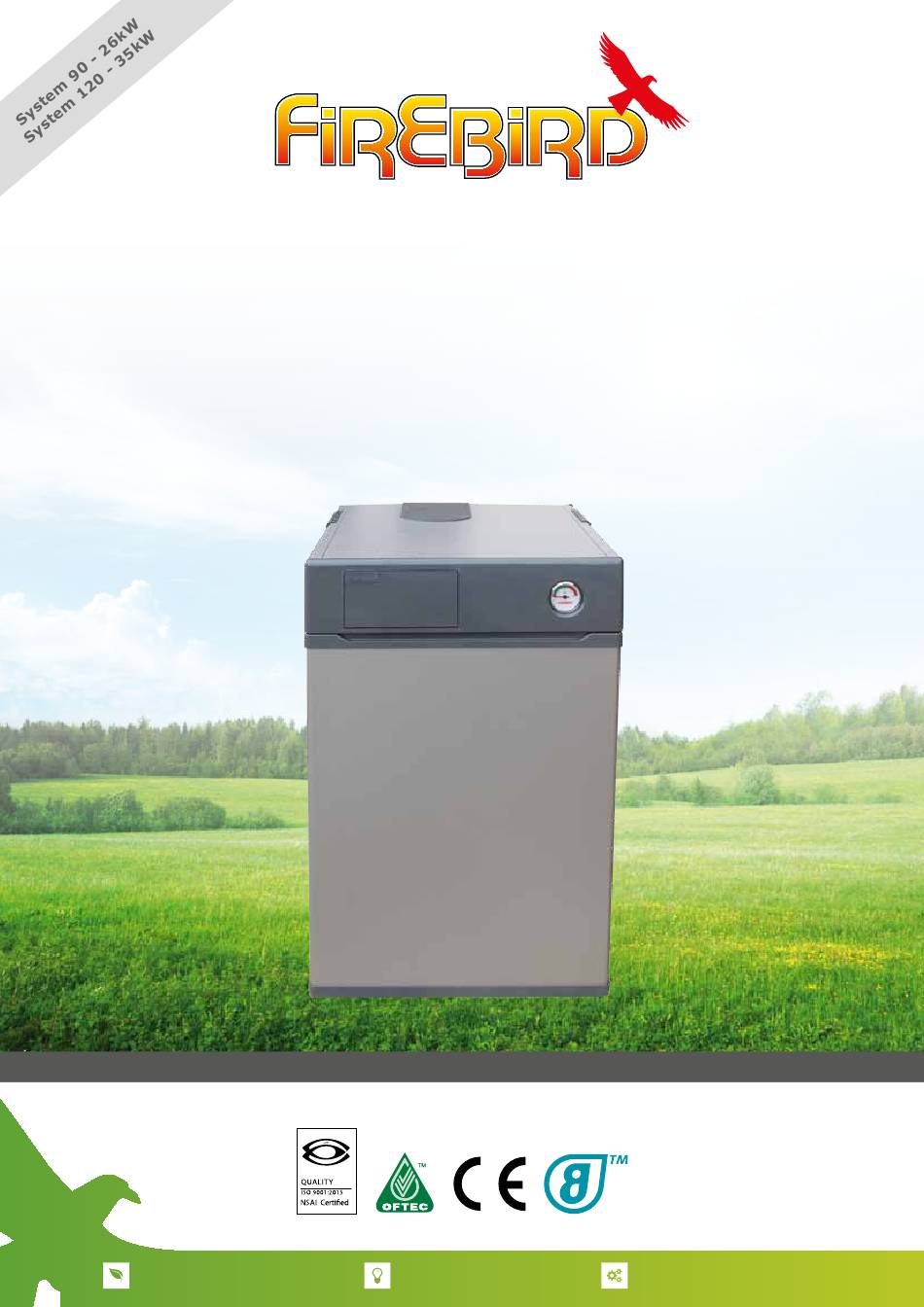

HEATING SOLUTIONS
S Tandar d efficienc y
indoor Boiler
T e c h n ic al Manual
This manual must remain with the householder once installation is complete
ENVIRONMENT
INNOVA TION
TECHNOLOGY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the System 90 and is the answer not in the manual?

Questions and answers

Related Manuals for FireBird System 90

Summary of Contents for FireBird System 90

  • Page 1 HEATING SOLUTIONS S Tandar d efficienc y indoor Boiler T e c h n ic al Manual This manual must remain with the householder once installation is complete ENVIRONMENT INNOVA TION TECHNOLOGY...

  • Page 2: Table Of Contents

    Contents Page Foreword & IntroduCtIon ................................. saFety .................................................. standards & regulatIons ................................... 3.1 Flue Regulations ........................................3.2 Flue Systems ............................................. 3.3 Liquid Fuel Supply ........................................systeM BoIler 4.1 end User Information ....................................... 4.2 Installer guidelines ....................................... 4.3 Technical Details ........................................CoMMIssIonIng ..........................................

  • Page 3: Foreword & Introduction

    OFTeC registered. eU legislation governs the manufacture, operation and efficiency of all The Firebird System boiler range is based on the “S” range of boilers. all boilers in this range domestic central heating oil boilers. Our boilers...

  • Page 4: Safety

    saFety HealtH & saFety InForMatIon safety - conformity was demonstrated by meeting the following standards: The installer should be aware of his/her responsibilities under the current, local Health and Safety at Work act. The eN60335-1: 2012 + a13: 2017: Household and Similar interests of safety are best served if the boiler is installed electrical appliances - Safety - Part 1: general Requirements and commissioned by a competent, qualified engineer,...

  • Page 5: Standards & Regulations

    Installation. Please ensure that the appliance is bolted to the floor for seismic restraint. Firebird recommend the use of Firebird coaxial flue systems to achieve room sealed operation. However, conventional flue systems are also suitable. The installation of this appliance and fuel source will...

  • Page 6: Flue Regulations

    3.1 standards & regulatIons - Flue regulatIons BalanCed Flue sItIng The terminal should be positioned to avoid combustion products entering the building or accumulating in stagnant pockets around buildings. The terminal must be protected by a guard if it is less than 2 metres above ground level or in a position where any person has access to it (i.e.
  • Page 7 BalanCed Flue BoIlers The Firebird boiler may be set for room-sealed flue operation using a Firebird condensing balanced flue kit. This kit does not draw combustion air from inside the room. It is drawn from outside, direct to the burner by an air pipe supplied with the boiler.

  • Page 8: Flue Systems

    3.2 standards & regulatIons - Flue systeMs FIREBIRD BALANCED FLUE SYSTEMS Vertical balanced flue kit - max. flue length 6m. Low level balanced flue kit - max. length 3m. High level balanced flue kit - max. length 6m. Overall length must take into account bends where 45°...
  • Page 9 IMPortant: tHe Installer Must eXaMIne tHIs IllustratIon CareFully BeFore ProCeedIng wItH InstallatIon. • The Firebird low level concentric flue kit has been specifically designed for Firebird’s indoor boilers. The use of third party low level flue kits is not recommended and may affect its warranty.
  • Page 10 3.2 standards & regulatIons - Flue systeMs Flue extension for assembly for Concentric Flue Side Outlet right hand outlet. IMPORTANT: A 50mm - (2inch) gap must be left between the cone cowl and the wall. Ensure Combustion Secure the flue adaptor air pipe protrudes beyond the to the boiler and the air outer surface of the wall.

  • Page 11: Liquid Fuel Supply

    3.3 standards & regulatIons - lIQuId Fuel suPPly dIesel storage tank sIttIng FleXIBle oIl PIPe(s) Consult OFTeC Manuals Two flexible burner Diesel hoses are supplied with the boiler which must be wholly contained within the It is unlikely that a fire will start at a Diesel tank. However, appliance case.

  • Page 12: System Boiler

    4.1 systeM BoIler - end user InForMatIon BoIler tHerMostat/tHerMIstor FunCtIon The control thermostat on the boiler allows the householder to vary temperature to central heating from a low of 60˚C to 80˚C, depending on the model. This boiler is also fitted with a safety high limit thermostat, fixed at 110˚C.

  • Page 13: Installer Guidelines

    Sound levels must also be a consideration. Whilst Firebird condensing liquid fuel boilers are one of the quietest boilers on the market, some householders are particularly sensitive.
  • Page 14 4.2 systeM BoIler - Installer guIdelInes PIPework * a pressure gauge with a 0 to 4 bar range is fitted to the boiler control panel. This indicates water pressure in the Do not obstruct flue fitting with Pipework. boiler and system at time of reading. Pressure when Connect pipework as shown below.
  • Page 15 4.2 systeM BoIler - Installer guIdelInes Remember that air charge pressure must be equal in eXaMPle: using above table both vessels (attached to the same system). In the above If total water content of system is - 150 litres example this is 1 bar. air charge pressure is the air and initial system pressure required is - 1.0 bar pressure in the expansion vessel before the system is filled.
  • Page 16 4.2 systeM BoIler - Installer guIdelInes wIrIng electrical supply the boiler and controls require a 230v 50Hz mains electric supply protected with a 5a fuse. this appliance must be earthed. a qualified electrician must carry out all electric wiring in accordance with current eTCI / IeT Regulations and any local regulations which may apply.

  • Page 17: Technical Details

    4.3 systeM BoIler - teCHnICal detaIls dimensions (mm) Model - system standard weight efficiency (output range) system 90 - 26kw 856 555 618 760 231 165 210 580 648 341 system 120 - 35kw 856 555 618 760 231 165 210 580 648 341...
  • Page 18 4.3 systeM BoIler - teCHnICal detaIls SySTEM 90 - 26kW BOIlER Description Sales Code Smoke baffle 210015 Door gasket 113015 Door duroboard 210017 Bolt M8X150 110437 Flue elbow adaptor 210249 Gasket seal 110555 Stat pocket ACC003PKT Air hose ACC000SSH Control panel...
  • Page 19 4.3 systeM BoIler - teCHnICal detaIls SySTEM 120 - 35kW BOIlER Description Sales Code Deflector baffle 210049 Base baffle 210050 Smoke baffle 210060 Door gasket 113016 Ceraboard door 112368 Gasket seal 110555 Stat pocket ACC003PKT Flue elbow adaptor 210249 Bolt M8X150 110437 Air hose ACC000SSH...
  • Page 20 4.3 systeM BoIler - teCHnICal detaIls Heat Output btu/hr cOnnectiOnS Heating Flow 22 mm dia. 28 mm dia. Heating Return 1” BSP 1” BSP Mains Cold Feed (Copper) 15 mm dia. 15 mm dia. Drain Off Valve ½” BSP ½” BSP Safety Pressure Valve Outlet (Copper) 15 mm dia.

  • Page 21: Commissioning

    Set the air to what is required for the nozzle size +. 5 on where does the flue terminate: the dial - example: the factory setting for a Firebird C26 u Make sure there is no window, door or fence within 1 has a Danfoss .65 80°...
  • Page 22 Firebird boiler has replaced an of time switch operating and passing power to existing unit. extra effort should be made to ensure appliance prior to filling.

  • Page 23: Servicing

    Burner annual servicing must be carried out by a competent, qualified engineer, preferably familiar with Firebird products. Check Diesel nozzle size and replace (see burner section for details). Do not commence service until both the electrical and diesel supply to the boiler have been safely isolated.

  • Page 24: Terms & Conditions Of Warranty

    8. Firebird will not accept any liability in respect of any defect occurring to the product due to limescale build-up and or low return water temperature.

  • Page 25: Service Record

    servICe reCord service record All Information recorded hereunder should also be included in the Engineer’s own filed service reports. It is recommended that the boiler be serviced at least once a year and the details recorded below. The engineer should advise the end user. servICe servICe servICe...
  • Page 28 © Copyright applies to all FIReBIRD products. Our policy is one of continual development and we therefore reserve the right to change without prior notice the specification of our products at any time and be without obligation to make similar changes in products previously produced.
