6

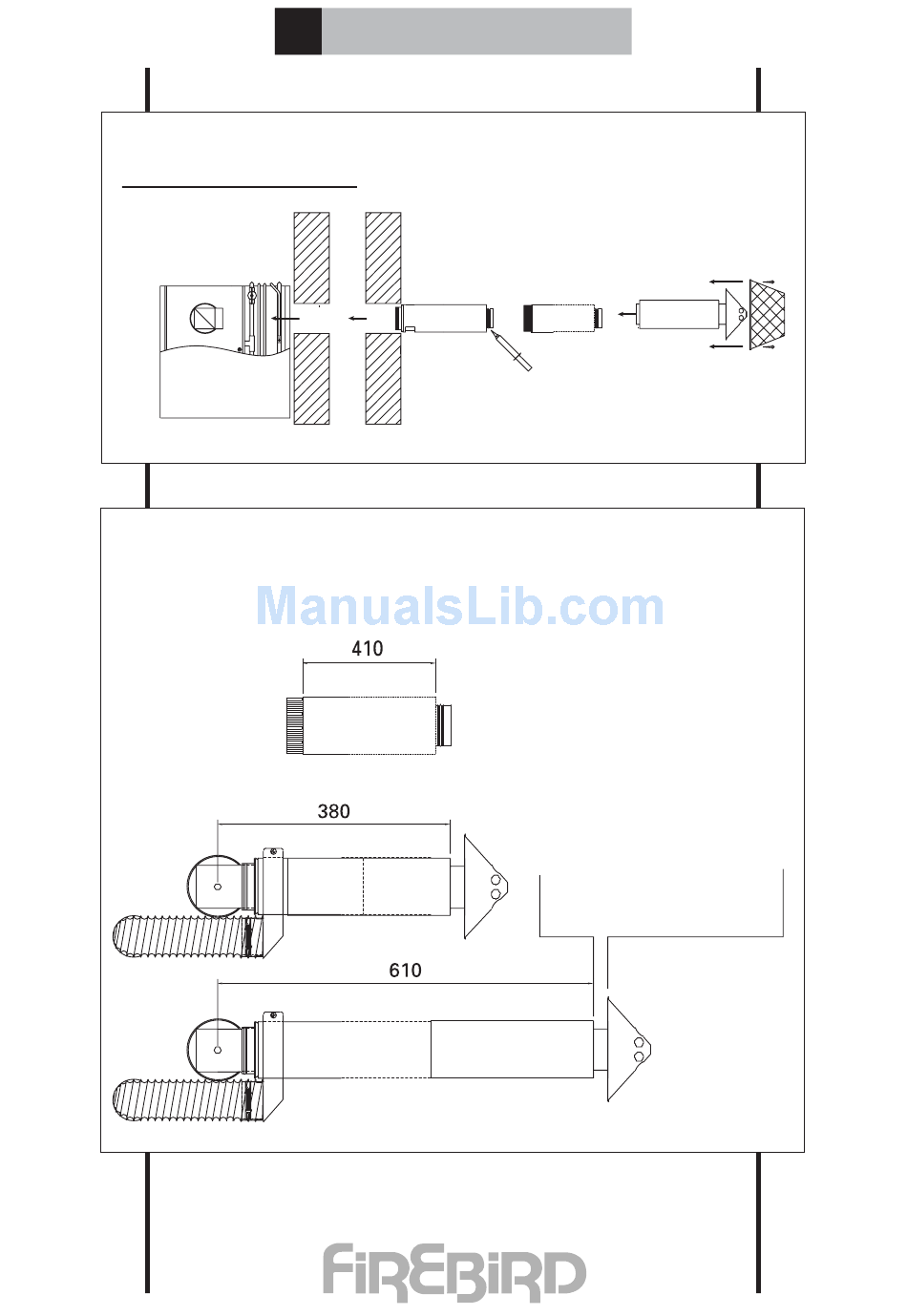

Assembly for concentric flue when
going side outlet on White cased boiler
Secure the flue adaptor
to the Boiler, ref dwg 4
and the air box to the
flue pipe ref. dwg 3.
5" (125mm) O.D. Concentric flue Firebird S
70,000 - 90,000 and 120,000 btu's Boilers.

INSTALLATION INSTRUCTIONS

FLUE SYSTEMS
IMPORTANT:
A 50mm - (2inch) gap
must be left between
cone cowl and wall.
Ensure Combustion air
pipe protrudes beyond the
outer surface of the wall.
Apply high temperature sealant
to the O ring on the inner flue pipe
to ensure a positive seal.
6-C Concentric Flue System
SUPPLIED WITH FLUE KITS
27
Flue Extension For
Right Hand Outlet Combi.
Push the flue pipe through
the 125mm hole in the wall.
Flue Extension
Flue Extension
IMPORTANT:
A 50mm - (2 inch) gap
must be left between
cone cowl and wall.
