SETTING UP A MULTI-BRANCH PROFILE FOR A SIP CLIENT
The multi-branch profile for a SIP client contains registration details and authentication information.

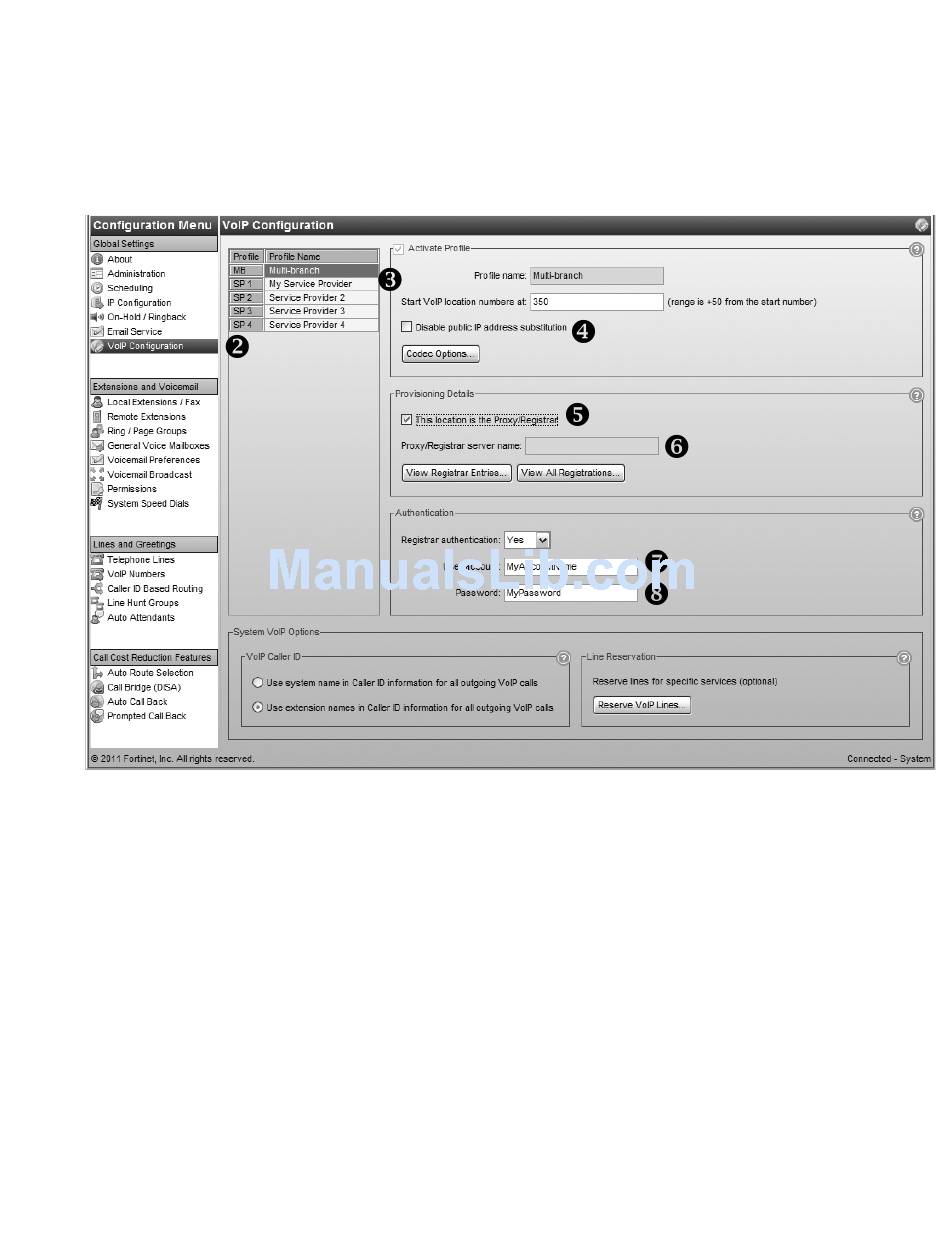

1. Connect to a system that will be a SIP client.
2. Select the VoIP Configuration page.
3. Select Profile MB, which is for configuring the multi-branch profile.
4. Leave the Disable public IP address substitution checkbox cleared.
5. Leave the This location is the Proxy/Registrar checkbox cleared.
6. Enter the Current public IP address or Public domain name of the SIP server into the Proxy/
Registrar server name box.
If the SIP server is using a non-default SIP signalling port (i.e. if the SIP server is not using 5060
as the SIP signalling port), specify the port number after a colon at the end of the public IP
address or public domain name (e.g. 123.45.67.89:3456).
7. Enter the User/account name from the SIP server. All SIP clients must use this name.
8. Enter the Password from the SIP server. All SIP clients must use this password.
9. Ensure your router is set up to perform port forwarding for the SIP Signalling and RTP ports.
See Configuring the router on page 6.
E V E R Y C A L L C O U N T S
1 3
