SETTING UP A MULTI-BRANCH PROFILE FOR THE SIP SERVER

The multi-branch profile for the SIP server shows registration details and contains authentication
information.

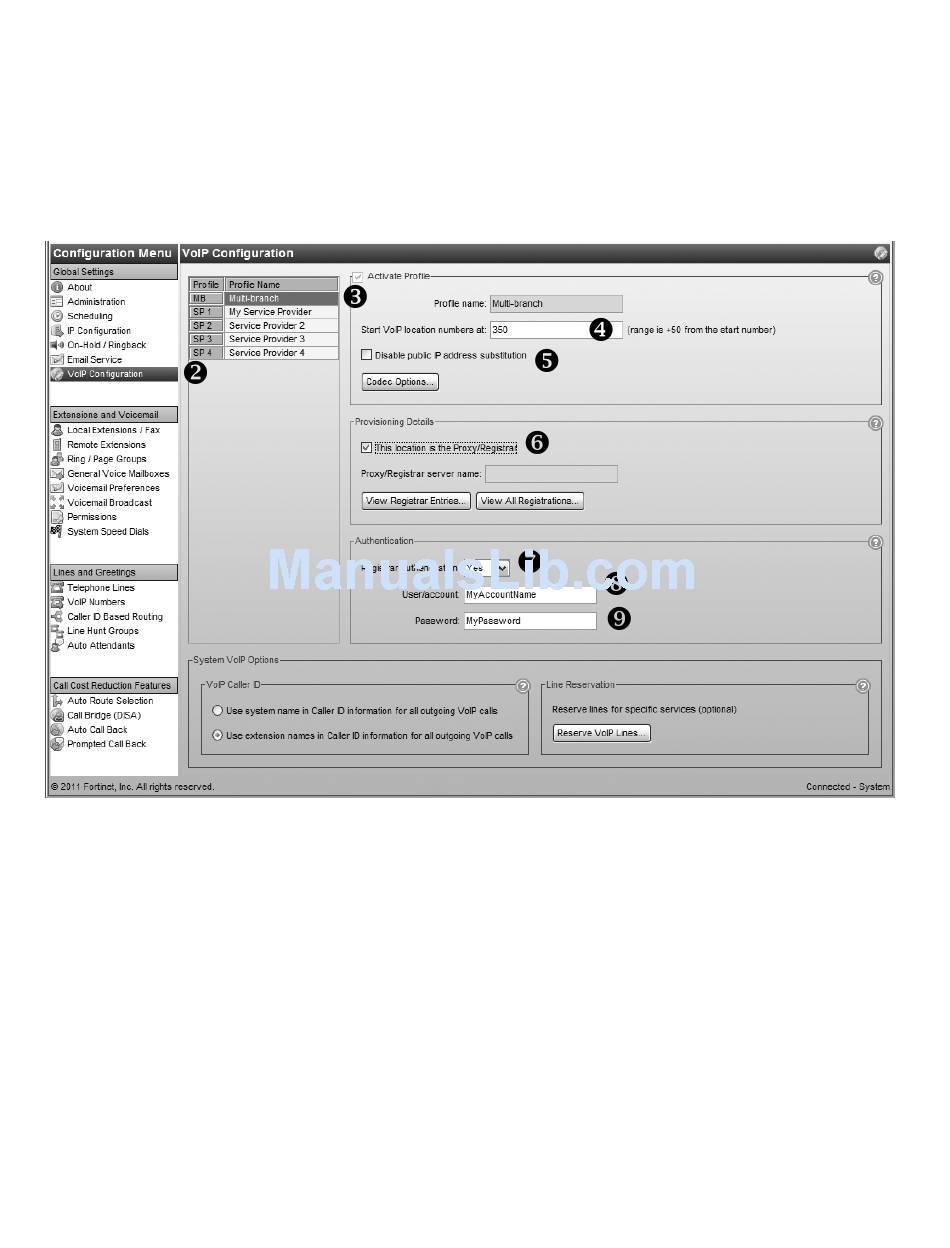

1. Connect to the system that will act as the SIP server.
2. Select the VoIP Configuration page.
3. Select Profile MB, which is for configuring the multi-branch profile.
4. Set the starting number for VoIP numbers range. A range of 50 numbers is reserved for VoIP
numbers in the system. The range will begin with the number you put here.
5. Leave the Disable public IP address substitution checkbox cleared.
6. Select the This location is the Proxy/Registrar checkbox.
7. Set Registrar authentication to Yes. This restricts access and allows only authorized devices to
connect.
8. Enter a User/account name. All SIP clients must use this name.
9. Enter a Password. All SIP clients must use this password.
10. Ensure your router is set up to perform port forwarding for the SIP Signalling and RTP ports.
See Configuring the router on page 6.
