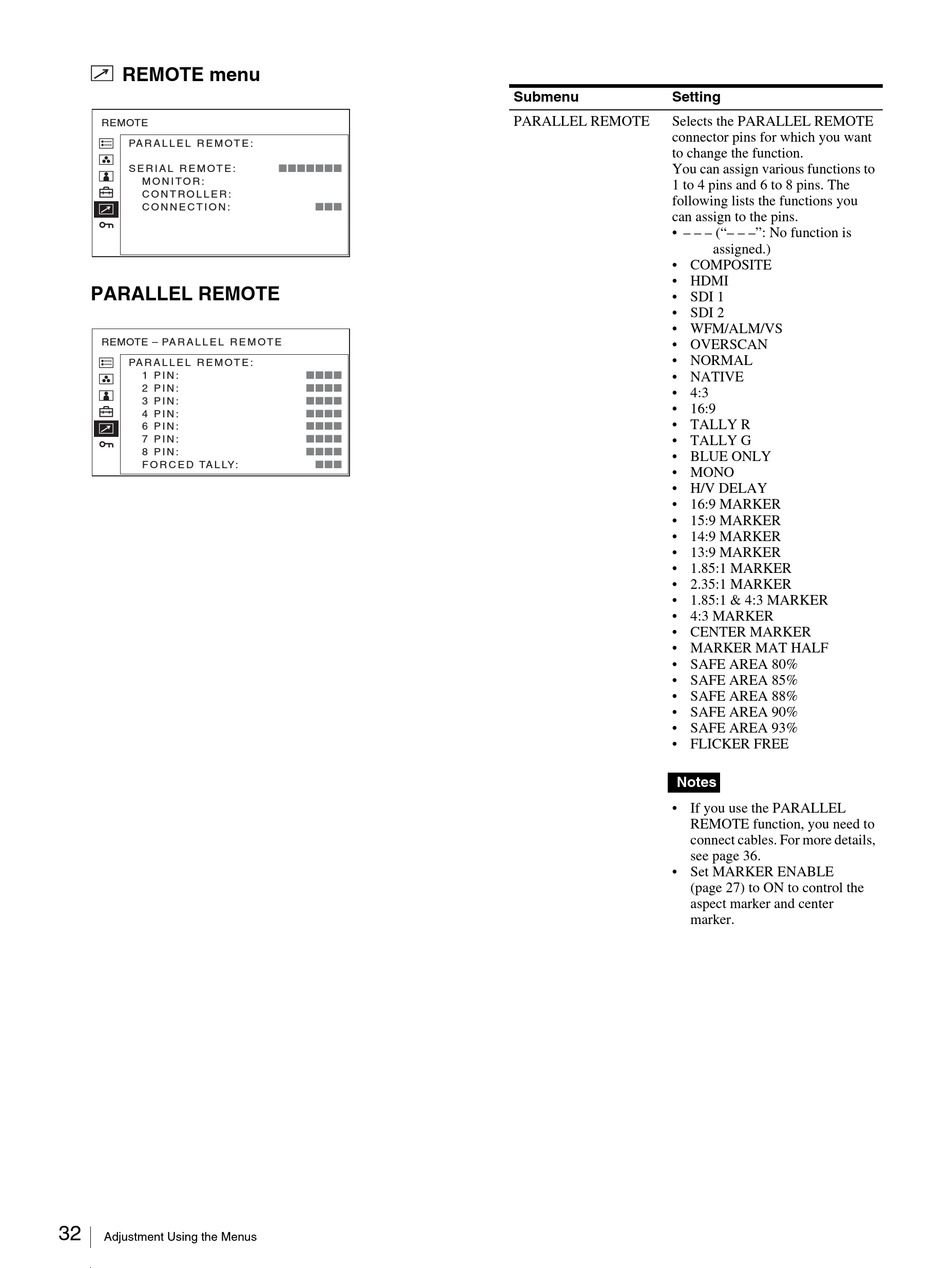

REMOTE menu

REMOTE
PA R A L L E L R E M O T E :
S E R I A L R E M O T E :
M O N I T O R :
C O N T R O L L E R :
C O N N E C T I O N :
PARALLEL REMOTE
REMOTE – PA R A L L E L R E M O T E
PA R A L L E L R E M O T E :
1 P I N :
2 P I N :
3 P I N :
4 P I N :
6 P I N :
7 P I N :
8 P I N :
F O R C E D TA L LY:
32
Adjustment Using the Menus
xxxxxxx
xxx
xxxx
xxxx
xxxx
xxxx
xxxx
xxxx
xxxx
xxx
Submenu
Setting
PARALLEL REMOTE
Selects the PARALLEL REMOTE
connector pins for which you want
to change the function.
You can assign various functions to
1 to 4 pins and 6 to 8 pins. The
following lists the functions you
can assign to the pins.
• – – – ("– – –": No function is
• COMPOSITE
• HDMI
• SDI 1
• SDI 2
• WFM/ALM/VS
• OVERSCAN
• NORMAL
• NATIVE
• 4:3
• 16:9
• TALLY R
• TALLY G
• BLUE ONLY
• MONO
• H/V DELAY
• 16:9 MARKER
• 15:9 MARKER
• 14:9 MARKER
• 13:9 MARKER
• 1.85:1 MARKER
• 2.35:1 MARKER
• 1.85:1 & 4:3 MARKER
• 4:3 MARKER
• CENTER MARKER
• MARKER MAT HALF
• SAFE AREA 80%
• SAFE AREA 85%
• SAFE AREA 88%
• SAFE AREA 90%
• SAFE AREA 93%
• FLICKER FREE
Notes
• If you use the PARALLEL
REMOTE function, you need to
connect cables. For more details,
see page 36.
• Set MARKER ENABLE
(page 27) to ON to control the
aspect marker and center
marker.
assigned.)
