BRIGHTNESS
Press the button to display the adjustment screen and
adjust the picture brightness. Press again to hide the
adjustment screen. However, the picture brightness
remains adjustable. Turn the menu selection control
right to increase the brightness and turn left to decrease
it.
CONTRAST
Press the button to display the adjustment screen and
adjust the picture contrast. Press again to hide the
adjustment screen. However, the picture contrast
remains adjustable. Turn the menu selection control
right to increase the contrast and turn left to decrease it.
CHROMA
Press the button to display the adjustment screen and
adjust the color intensity. Press again to hide the
adjustment screen. However, the color intensity remains
adjustable. Turn the menu selection control right to
increase the intensity and turn left to decrease it.
VOLUME
Press the button to display the adjustment screen and
adjust the volume. Press again to hide the adjustment
screen. However, the volume remains adjustable. Turn
the menu selection control right to increase the volume
and turn left to decrease it.
I/P MODE
Press the button to set the delay by the picture
processing to the minimum level when interlace signal
is input. The mode switches in the sequence INTER-
FIELD t FIELD MERGE t LINE DOUBLER t
INTRA-FIELD with every press of the button (see I/P
MODE on page 26).
PHASE
Press the button to display the adjustment screen and
adjust the color tones. Press again to hide the adjustment
screen. However, the color tones remain adjustable.
Turn the menu selection control right to increase the
green tone and turn left to increase the purple tone.
APERTURE
Press the button to display the adjustment screen and
adjust the picture sharpness. Press again to hide the
adjustment screen. However, the picture sharpness
remains adjustable. Turn the menu selection control
right to make the picture sharper and turn left to make
the picture softer.
FOCUS
Press the button to confirm the camera focus.
An image with sharpened edges is displayed.
30
Adjustment Using the Menus
T/C
Press the button to display the time code display. Adjust
the settings for the time code display in T/C DISPLAY
SETTING (see page 27).
FLICKER FREE
Press the button to change the FLICKER FREE setting.
An OLED panel can provide superior video
responsiveness and scan driving, reproducing images
with little contouring or afterimaging. However, scan
driving can cause flicker when input signals have a low
vertical frequency (24P/PsF, 50I, etc.). Set FLICKER
FREE to ON to greatly reduce this phenomenon.
With this mode set to ON, quick-moving images may
exhibit contours or an afterimage.

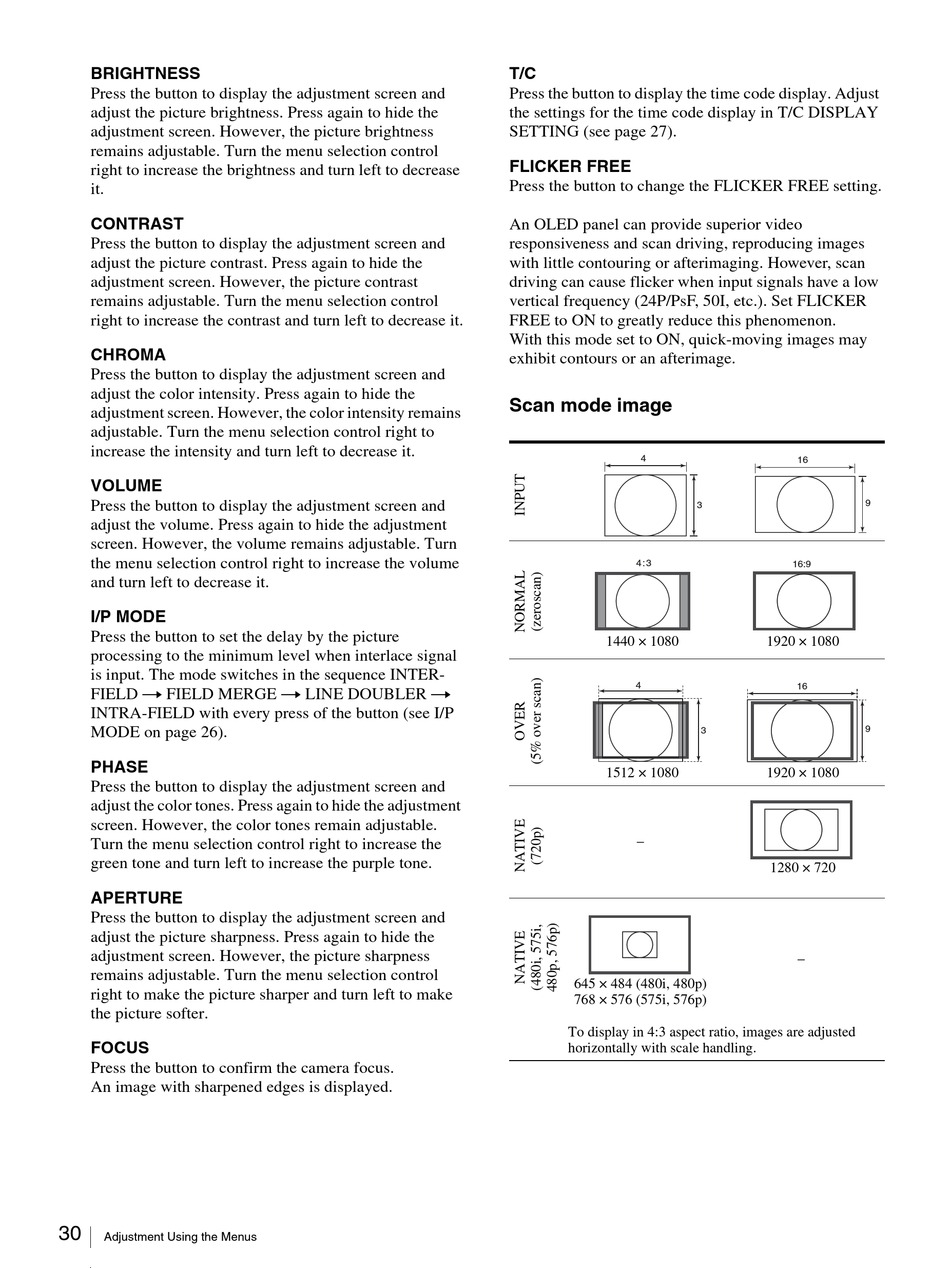

Scan mode image

4
4 :3
1440 × 1080
4
1512 × 1080
645 × 484 (480i, 480p)
768 × 576 (575i, 576p)
To display in 4:3 aspect ratio, images are adjusted
horizontally with scale handling.
16
9
3
16:9
1920 × 1080
16
9
3
1920 × 1080
1280 × 720
