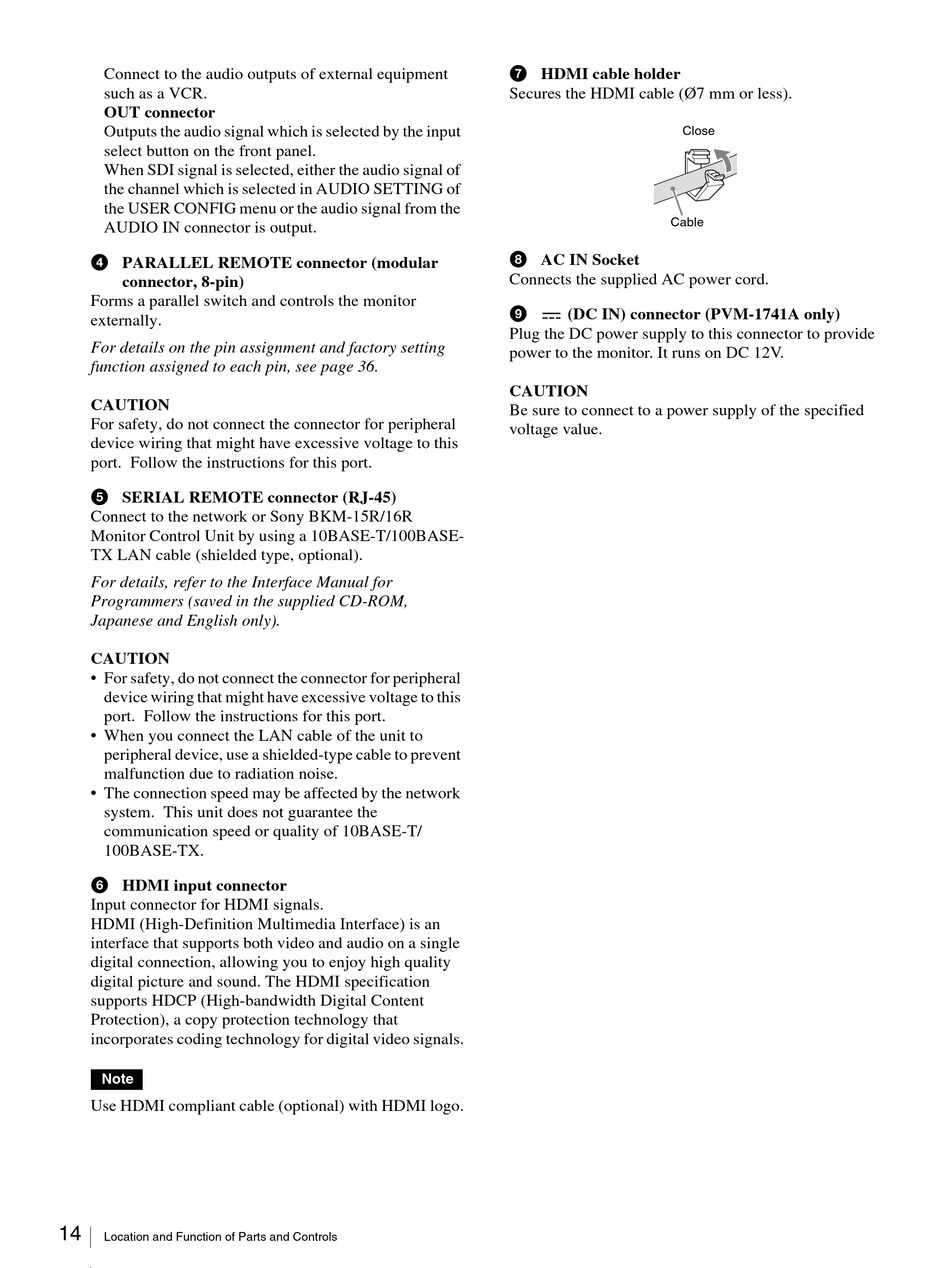

Connect to the audio outputs of external equipment
such as a VCR.
OUT connector
Outputs the audio signal which is selected by the input
select button on the front panel.
When SDI signal is selected, either the audio signal of
the channel which is selected in AUDIO SETTING of
the USER CONFIG menu or the audio signal from the
AUDIO IN connector is output.
d PARALLEL REMOTE connector (modular
connector, 8-pin)
Forms a parallel switch and controls the monitor
externally.
For details on the pin assignment and factory setting
function assigned to each pin, see page 36.
CAUTION
For safety, do not connect the connector for peripheral
device wiring that might have excessive voltage to this
port. Follow the instructions for this port.
e SERIAL REMOTE connector (RJ-45)
Connect to the network or Sony BKM-15R/16R
Monitor Control Unit by using a 10BASE-T/100BASE-
TX LAN cable (shielded type, optional).
For details, refer to the Interface Manual for
Programmers (saved in the supplied CD-ROM,
Japanese and English only).
CAUTION
• For safety, do not connect the connector for peripheral
device wiring that might have excessive voltage to this
port. Follow the instructions for this port.
• When you connect the LAN cable of the unit to
peripheral device, use a shielded-type cable to prevent
malfunction due to radiation noise.
• The connection speed may be affected by the network
system. This unit does not guarantee the
communication speed or quality of 10BASE-T/
100BASE-TX.
f HDMI input connector
Input connector for HDMI signals.
HDMI (High-Definition Multimedia Interface) is an
interface that supports both video and audio on a single
digital connection, allowing you to enjoy high quality
digital picture and sound. The HDMI specification
supports HDCP (High-bandwidth Digital Content
Protection), a copy protection technology that
incorporates coding technology for digital video signals.
Note
Use HDMI compliant cable (optional) with HDMI logo.
14
Location and Function of Parts and Controls
g HDMI cable holder
Secures the HDMI cable (Ø7 mm or less).
Close
Cable
h AC IN Socket
Connects the supplied AC power cord.
i
(DC IN) connector (PVM-1741A only)
Plug the DC power supply to this connector to provide
power to the monitor. It runs on DC 12V.
CAUTION
Be sure to connect to a power supply of the specified
voltage value.
