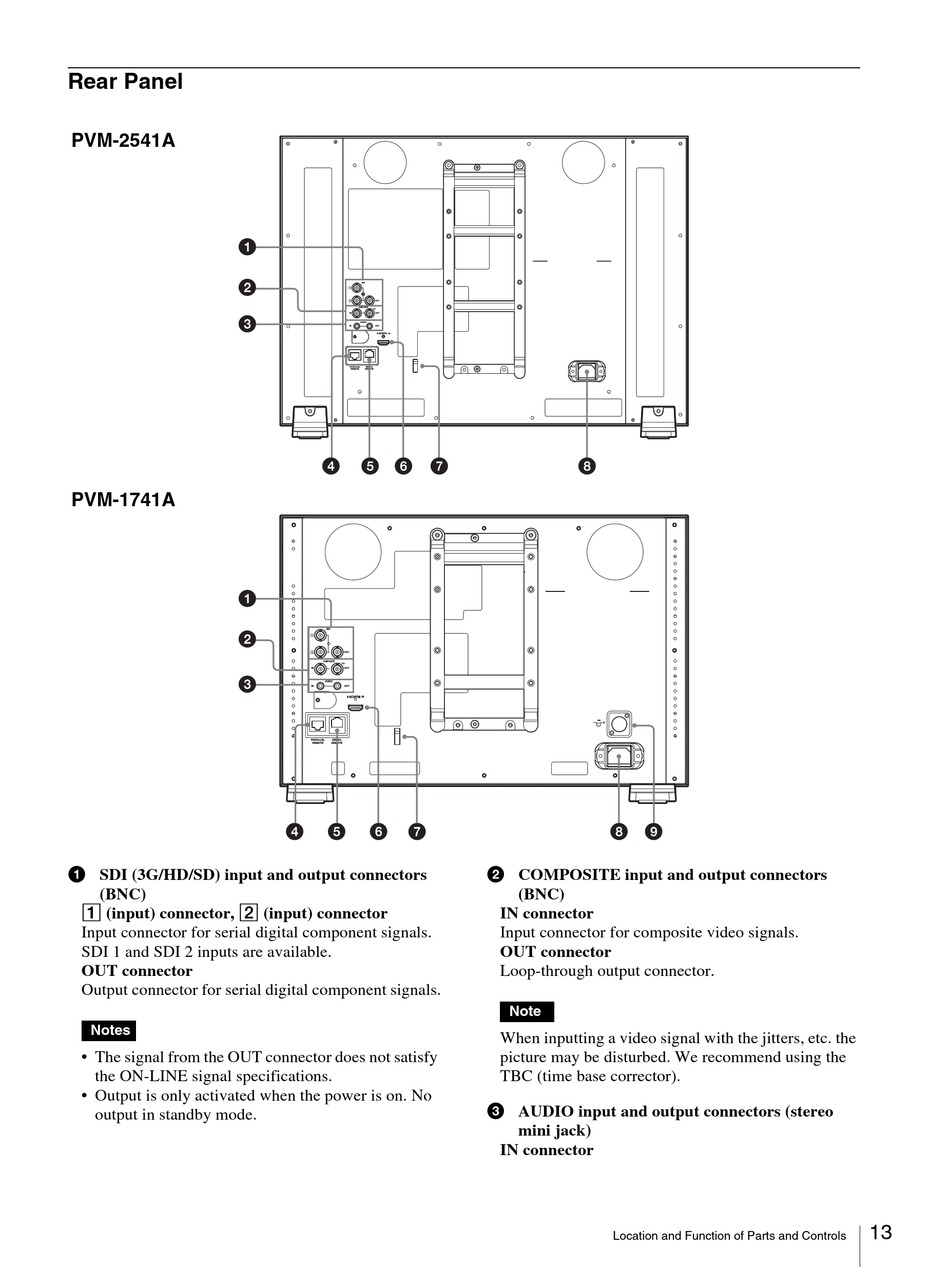

Rear Panel

PVM-2541A
1
2
3
PVM-1741A
1
2
3
a SDI (3G/HD/SD) input and output connectors
(BNC)
1 (input) connector, 2 (input) connector
Input connector for serial digital component signals.
SDI 1 and SDI 2 inputs are available.
OUT connector
Output connector for serial digital component signals.
Notes
• The signal from the OUT connector does not satisfy
the ON-LINE signal specifications.
• Output is only activated when the power is on. No
output in standby mode.
SDI
OUT
COMPOSITE
IN
OUT
AUDIO
IN
OUT
IN
PARALLEL
SERIAL
REMOTE
REMOTE
4
5 6 7
SDI
OUT
COMPOSITE
IN
OUT
AUDIO
IN
OUT
IN
PARALLEL
SERIAL
REMOTE
REMOTE
4
5
6
7
8
8
9
b COMPOSITE input and output connectors
(BNC)
IN connector
Input connector for composite video signals.
OUT connector
Loop-through output connector.
Note
When inputting a video signal with the jitters, etc. the
picture may be disturbed. We recommend using the
TBC (time base corrector).
c AUDIO input and output connectors (stereo
mini jack)
IN connector
Location and Function of Parts and Controls
13
