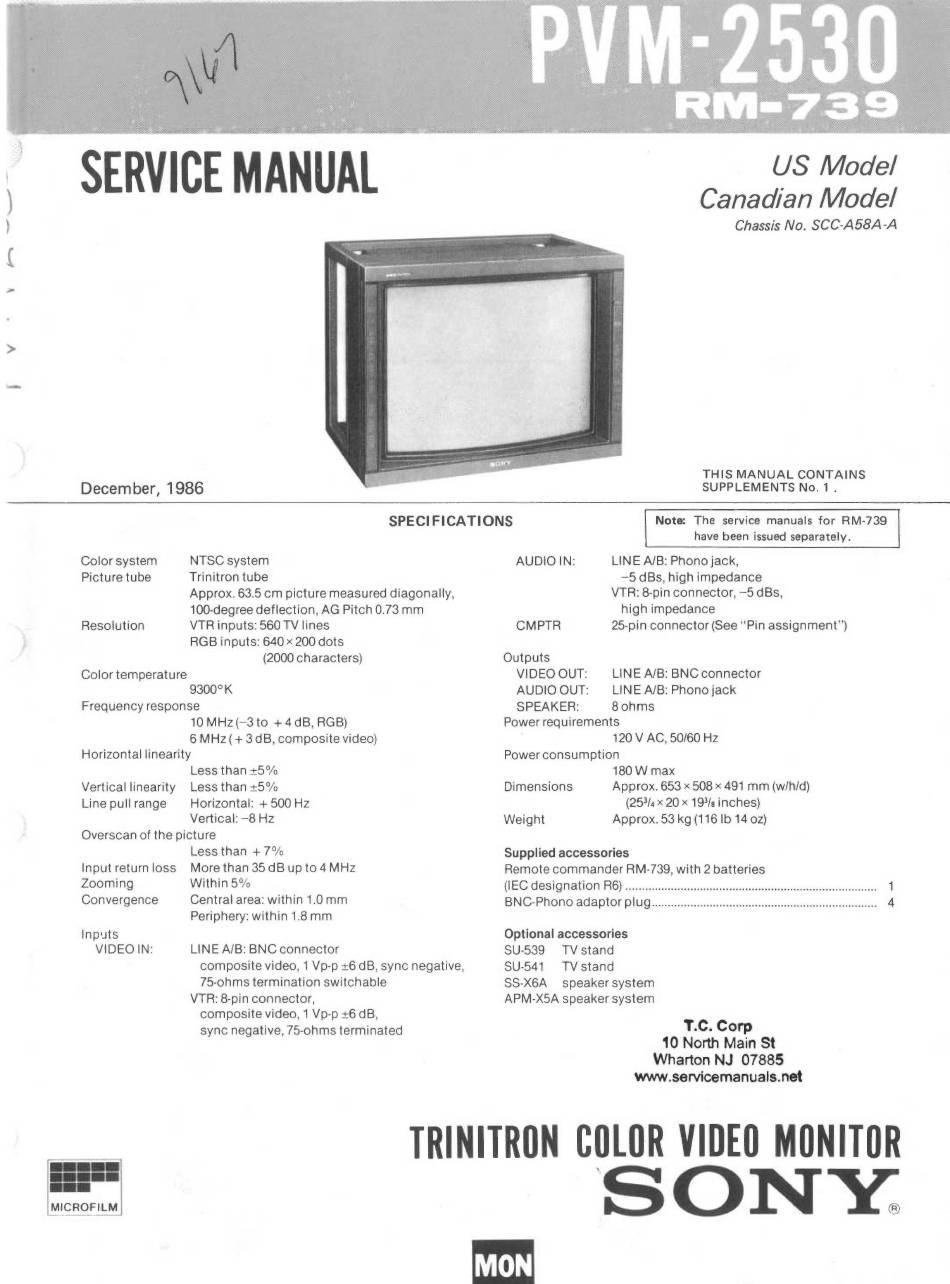

SERVICE
MANUAL
December, 1986
US Model
Canadian Model
Chassis No. SCC-A58A-A
THIS MANUAL
CONTAINS
SUPPLEMENTS No. 1 .
SPECIFICATIONS
Note;
The service manuals for RM-739
have been issued separately.
Color system
Picture tube
Resolution
Color temperature
NTSC system
Trinitron tube
Approx. 63.5 cm picture measured diagonally,
100-degree deflection, AG Pitch 0.73 mm
VTR inpl!.lts: 560 TV lines
RGB inputs: 640
x
200 dots
(2000 characters)
9300°K
Frequency response
10 MHz (-3 to + 4 dB, RGB)
6 MHz (
+
3 dB, composite video)
Horizontal linearity
Vertical linearity
Line pull range
Less than ±5%
Less than ±5%
Horizontal:
+
500 Hz
Vertical: -8 Hz
Overscan of the picture
Less than
+
7%
Input return loss
More than 35 dB up to 4 MHz
Zooming
Within 5%
Convergence
Central area: within 1.0 mm
Periphery: within 1.8 mm
lnp•JtS
VIDEO IN:
LINE A/B: BNC connector
composite video, 1 Vp-p ±6 dB, sync negative
,
75-ohms termination switchable
VTR: 8-pin connector,
composite video, 1 Vp-p ±6 dB,
sync negative, 75-ohms terminated
AUDIO IN:
LINE A/B: Phono jack,
-5 dBs, high impedance
VTR: 8-pin connector, -5 dBs,
high impedance
CMPTR
25-pin connector (See "Pin assignment")
Outputs
VIDEO OUT:
LINE A/B: BNC connector
AUDIO OUT:
LINE A/B: Phono jack
SPEAKER:
8 ohms
Power requirements
120 V AC, 50/60 Hz
Power consumption
180W max
Dimensions
Approx. 653
x
508
x
491 mm (w/h/d)
(25¾
x
20
x
19
3
/a
inches)
Weight
Approx. 53 kg (116 lb 14 oz)
Supplied accessories
Remote commander RM-739, with 2 batteries
(IEC designation R6)
................................
. ............................................ .
BNC-Phono adaptor plug
.........................................
............................. 4
Optional accessories
SU-539
TV stand
SU-541
TV stand
SS-X6A
speaker system
APM-X5A speaker system
T.C. Corp
10
North Main
St
Wharton NJ 07885
WWW
.servicemanuals.
net
TRINITRON
COLOR
VIDEO
MONITOR
'SONY.
