0 °C to 35 °C (32 °F to 95 °F)
Recommended temperature
20 °C to 30 °C (68 °F to 86 °F)
Humidity
30% to 85% (no condensation)
Pressure
700 hPa to 1060 hPa
Storage and transport conditions
Temperature
–20 °C to +60 °C (–4 °F to +140 °F)
Humidity
0% to 90%
Pressure
700 hPa to 1060 hPa
Accessories supplied
AC power cord (1)
AC plug holder (1)
Mounting bracket (2) (including 4
screws) (PVM-1741A only)
Operating Instructions (1)
CD-ROM (1)
Using the CD-ROM Manual (1)
Optional accessories
Monitor stand
SU-561
Design and specifications are subject to change without
notice.
Note
Always verify that the unit is operating properly before
use. SONY WILL NOT BE LIABLE FOR
DAMAGES OF ANY KIND INCLUDING, BUT
NOT LIMITED TO, COMPENSATION OR
REIMBURSEMENT ON ACCOUNT OF THE LOSS
OF PRESENT OR PROSPECTIVE PROFITS DUE
TO FAILURE OF THIS UNIT, EITHER DURING
THE WARRANTY PERIOD OR AFTER
EXPIRATION OF THE WARRANTY, OR FOR
ANY OTHER REASON WHATSOEVER.

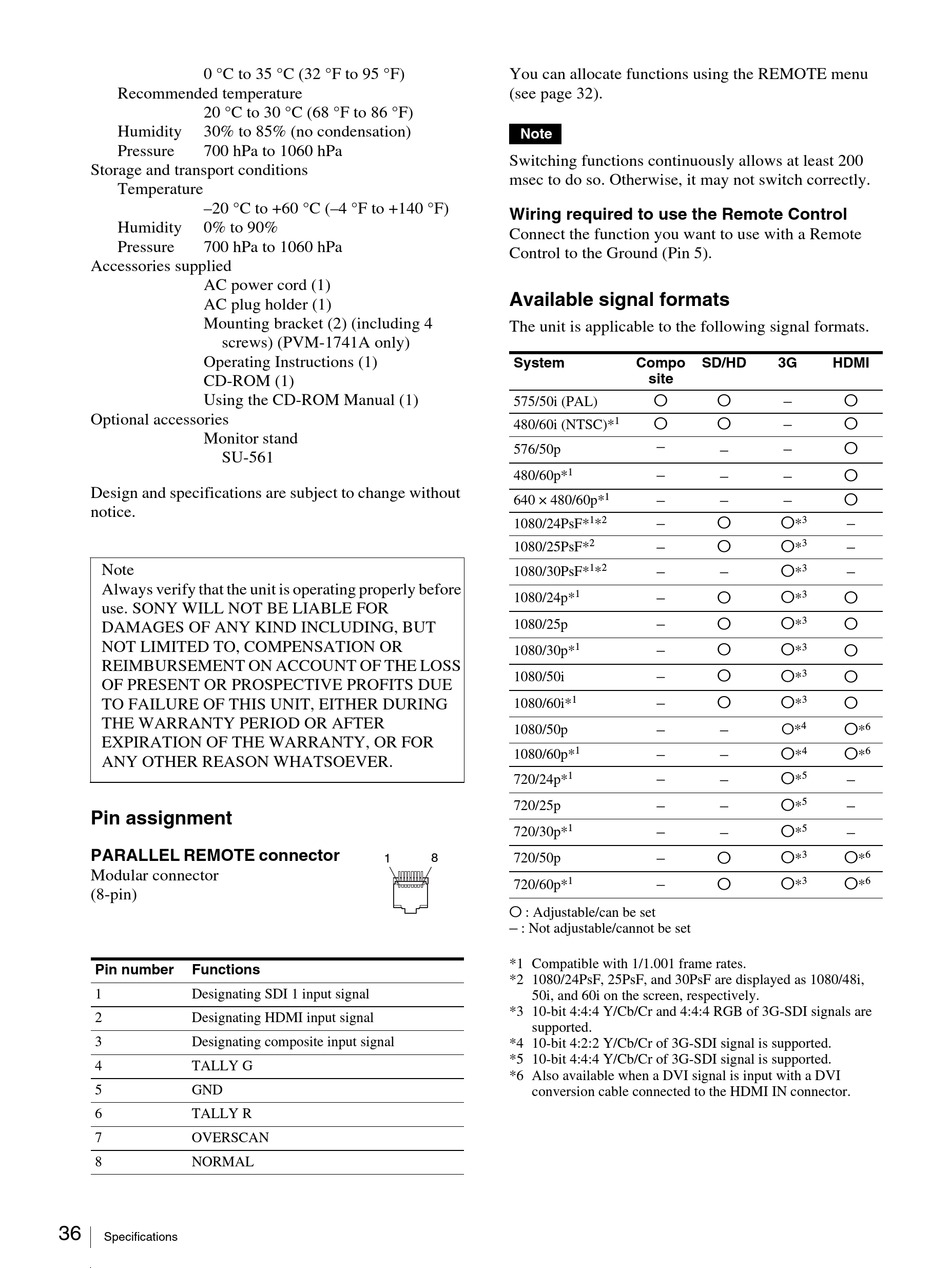

Pin assignment
PARALLEL REMOTE connector
Modular connector
(8-pin)
Pin number
Functions
1
Designating SDI 1 input signal
2
Designating HDMI input signal
3
Designating composite input signal
4
TALLY G
5
GND
6
TALLY R
7
OVERSCAN
8
NORMAL
36
Specifications
You can allocate functions using the REMOTE menu
(see page 32).
Note
Switching functions continuously allows at least 200
msec to do so. Otherwise, it may not switch correctly.
Wiring required to use the Remote Control
Connect the function you want to use with a Remote
Control to the Ground (Pin 5).

Available signal formats

The unit is applicable to the following signal formats.
System
575/50i (PAL)
480/60i (NTSC)*
576/50p
480/60p*
640 × 480/60p*
1080/24PsF*
1080/25PsF*
1080/30PsF*
1080/24p*
1080/25p
1080/30p*
1080/50i
1080/60i*
1080/50p
1080/60p*
720/24p*
720/25p
720/30p*
720/50p
1
8
720/60p*
a : Adjustable/can be set
: Not adjustable/cannot be set
*1 Compatible with 1/1.001 frame rates.
*2 1080/24PsF, 25PsF, and 30PsF are displayed as 1080/48i,
50i, and 60i on the screen, respectively.
*3 10-bit 4:4:4 Y/Cb/Cr and 4:4:4 RGB of 3G-SDI signals are
supported.
*4 10-bit 4:2:2 Y/Cb/Cr of 3G-SDI signal is supported.
*5 10-bit 4:4:4 Y/Cb/Cr of 3G-SDI signal is supported.
*6 Also available when a DVI signal is input with a DVI
conversion cable connected to the HDMI IN connector.
Compo
SD/HD
site
a
a
1
a
a
1
1
1
2
a
*
2
a
1
2
*
1
a
a
1
a
a
1
a
1
1
1
a
1
a
3G
HDMI
a
a
a
a
a
a
3
*
3
a
*
a
3
*
3
a
a
*
3
a
a
*
a
3
a
*
3
a
a
*
3
a
*
a
4
6
a*
a
*
4
6
a
a
*
*
5
a
*
a
5
*
5
a
*
3
6
a
a
*
*
a
3
a
6
*
*
