1560 Series Barcode Scanner

UPGRADING 3656 USB BRIDGE FIRMWARE

1) Connect the USB cable between 3656 and your computer.
For USB Virtual COM, you may need to install its driver first!
2) Connect the power supply cord from 3656 to a proper power outlet.
3) Refer to 3.1.1 Connect to 3656
Read the "Set Connection" label first, and then the "Serial Number" label. Both labels
can be located at the back of 3656.

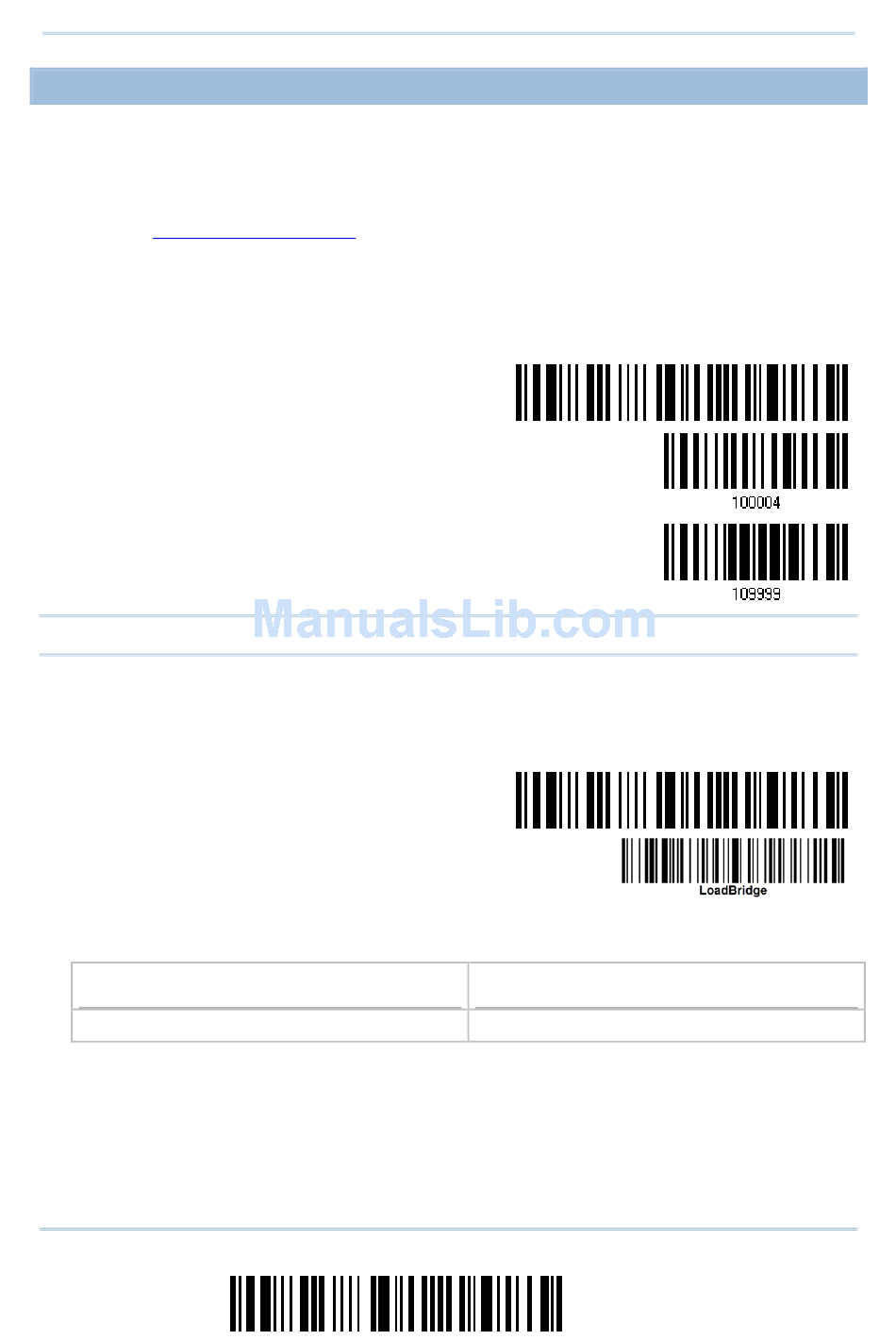

4) Read the following barcodes in sequence to configure the scanner to use USB Virtual
COM as download interface.
Note: You can download USB Bridge firmware via USB Virtual COM only!
5) Read the following barcodes in sequence for 3656 to enter the download mode. The
Communication LED on 3656 will be flashing red to indicate it is ready for
downloading.
6) Run the download utility "ProgLoad.exe" on your computer.
Kernel Program
K3656Bridge_V*.shx
214
User Guide
for the target scanner to connect to 3656.
Enter Setup
Enter Setup
Download 3656
USB Bridge Firmware
Activate 3656
USB Virtual COM
Update
User Program
STD3656Bridge_V*.shx
Enter Setup
