Luxury Gazebo Assembly

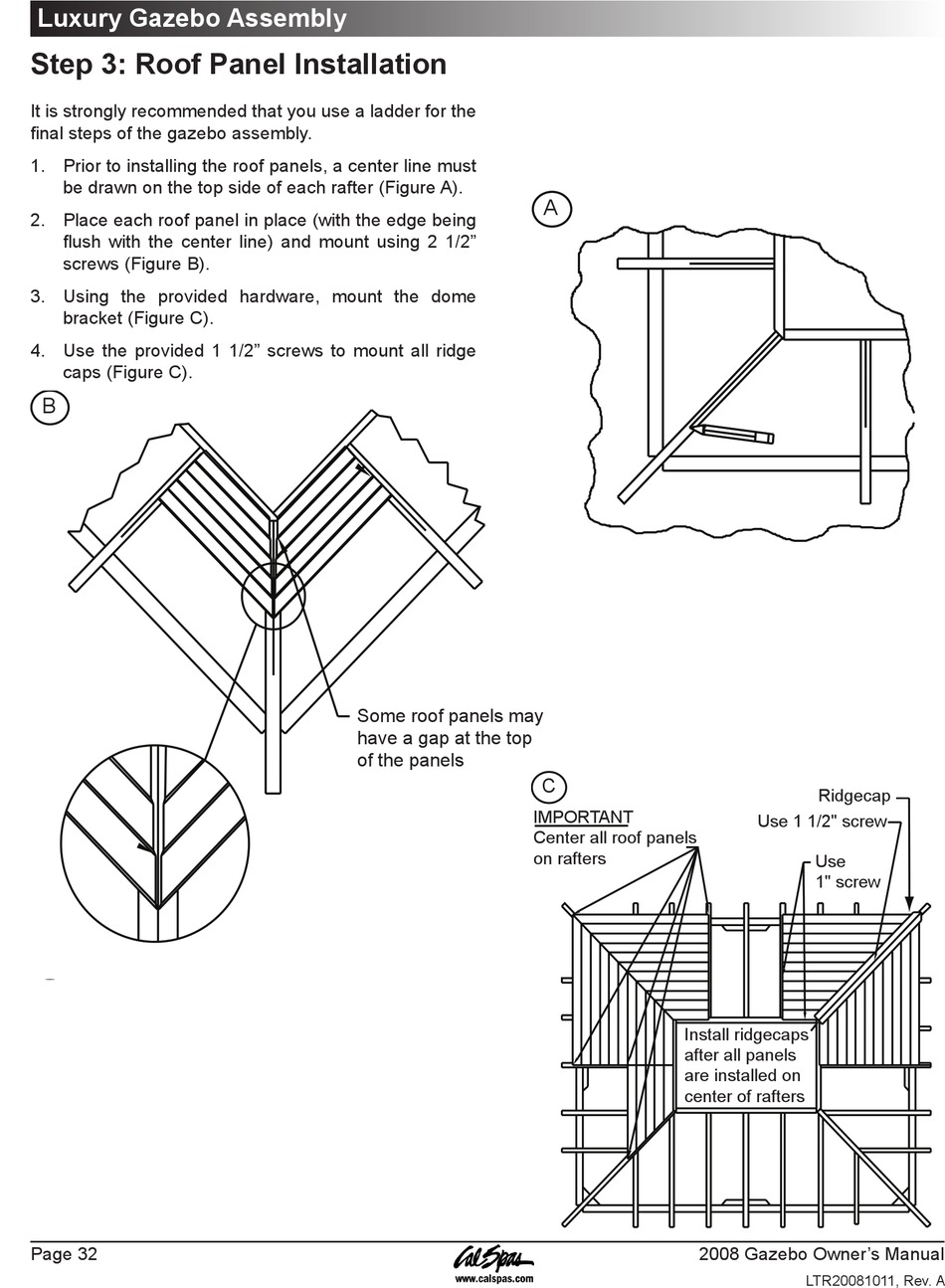

Step 3: Roof Panel Installation

It is strongly recommended that you use a ladder for the
final steps of the gazebo assembly.
1. Prior to installing the roof panels, a center line must
be drawn on the top side of each rafter (Figure A).
2. Place each roof panel in place (with the edge being
flush with the center line) and mount using 2 1/2"
screws (Figure B).
3. Using the provided hardware, mount the dome
bracket (Figure C).
4. Use the provided 1 1/2" screws to mount all ridge
caps (Figure C).
B
C
IMPORTANT
Center all roof panels
on rafters
Page 32
Install ridgecaps
after all panels
are installed on
center of rafters
Some roof panels may
have a gap at the top
of the panels
Ridgecap
Use 1 1/2" screw
Use
1" screw
A
B
B
C
IMPORTANT
Center all roof panels
on rafters
Install ridgecaps
after all panels
are installed on
center of rafters
C
2008 Gazebo Owner's Manual
IMPORTANT
Center all roof panels
on rafters
Some roof panels may
have a gap at the top
of the panels
Ridgecap
Use 1 1/2" screw
Use
1" screw
Some roof panels ma
have a gap at the top
of the panels
Ridgecap
Use 1 1/2" screw
LTR20081011, Rev. A
Use
1" screw
