Spa Cabana Gazebo Assembly

Roof Final Assembly

1. Lay out the 2"x2"x140" roof slats on
the two lower levels of the gazebo.
Make sure that each roof slat is
spaced exactly 2 1/2" apart. Twelve
roof slats total will be used on the
lower level.
2. Secure each roof slat securely in
place with 2 1/2" screws.
3. Lay out the 2"x2"x144" roof slats on
the one upper level of the gazebo.
Make sure that each roof slat is
spaced exactly 2 1/2" apart. These
roof slats need to be running the
opposite direction as the lower level
roof slats.
NOTE: Please observe the two different directions
that the roof slats are going.
Page 16

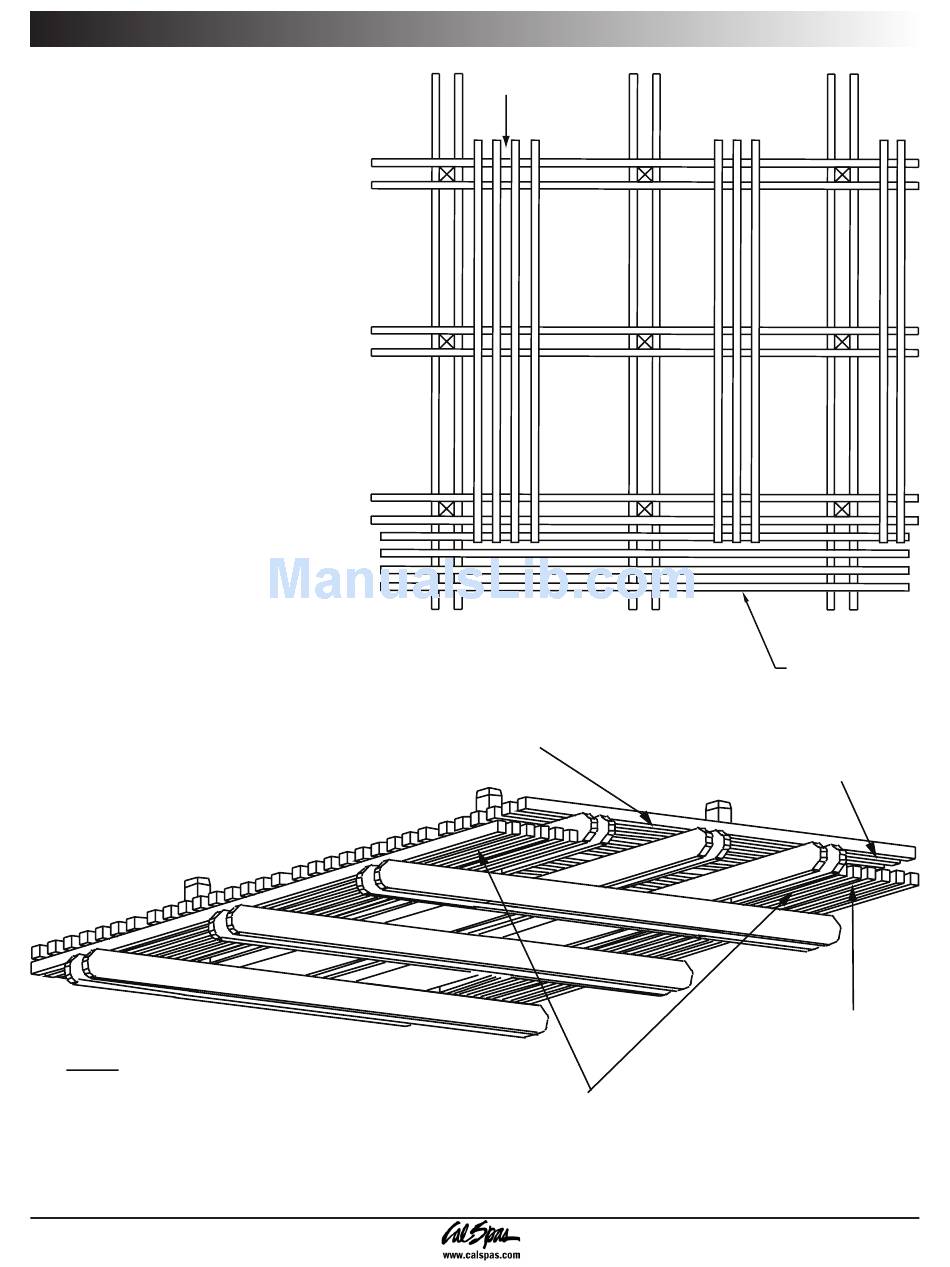

2" x 2" x 144"
spaced 2 1/2" apart
Upper Level Roof Slats
Lower Level Roof Slats
2" x 2" x 140"
spaced 2 1/2" apart
2" x 2" x 144" Roof Slats
2" x 2" x 140"
