Spa Cabana Gazebo Assembly

Step 1: Corner Post Assembly

1. Using the materials that are provided in your gazebo kit, take one 4"x4"x108' (9') piece of lumber and 2 2"x6"x90"
(7 1/2') pieces of lumber.
2. Take the 2"x6" and center the lumber on the 4"x4"piece of lumber. Once this is done, take four 2 1/2" screws
(3"x8") and attach the 2"x6" to the 4"x4". Repeat this sequence for the other 2"x6".
The 4"x4" and the 2"x6" (both pieces) should be flush at the bottom.
3. Once this is complete, repeat these steps for all four sides of the gazebo.
4. Using the provided hardware, attach the galvanized "L" bracket to the 4"x4" (either side).
5. With the use of a level, and after ensuring that the 2"x6" is between the spa and the 4"x4", check that the support
is level (top to bottom), and mark the location of the anchoring hole by scoring the concrete.
Galvanized "L" Bracket
Page 12

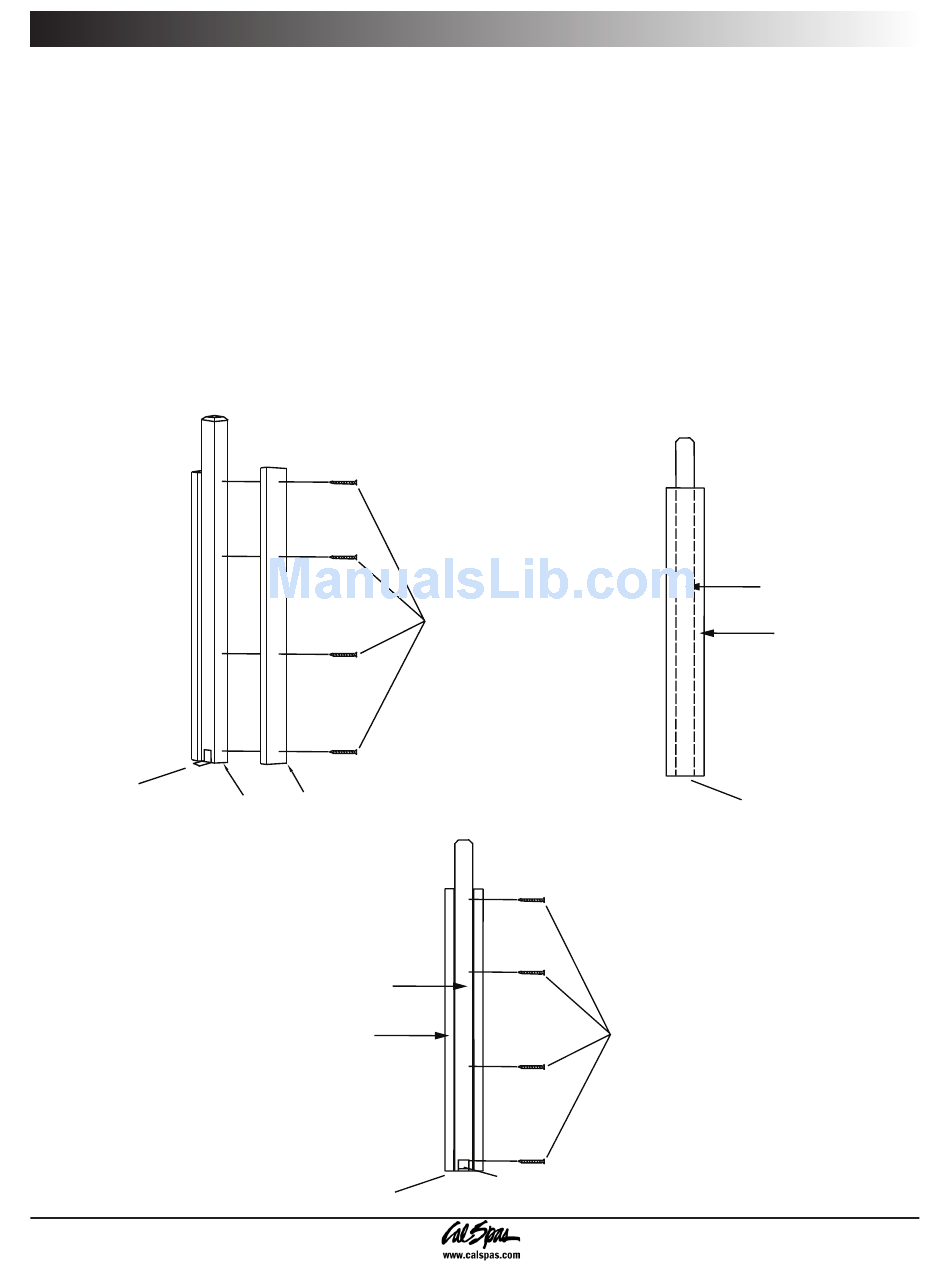

4" x 4" & 2" x 6" should
be flush at the bottom.
4" x 4"
2" x 6"
4" x 4" & 2" x 6" should
be flush at the bottom.
Side View Of Main
Support Post
3"x8"
Drywall Screw
Front View Of Main
Support Post
Galvanized "L" Bracket
4" x 4"
2" x 6"
4" x 4" & 2" x 6" should
be flush at the bottom.
3"x8"
Drywall Screw
