Lattice Gazebo Assembly

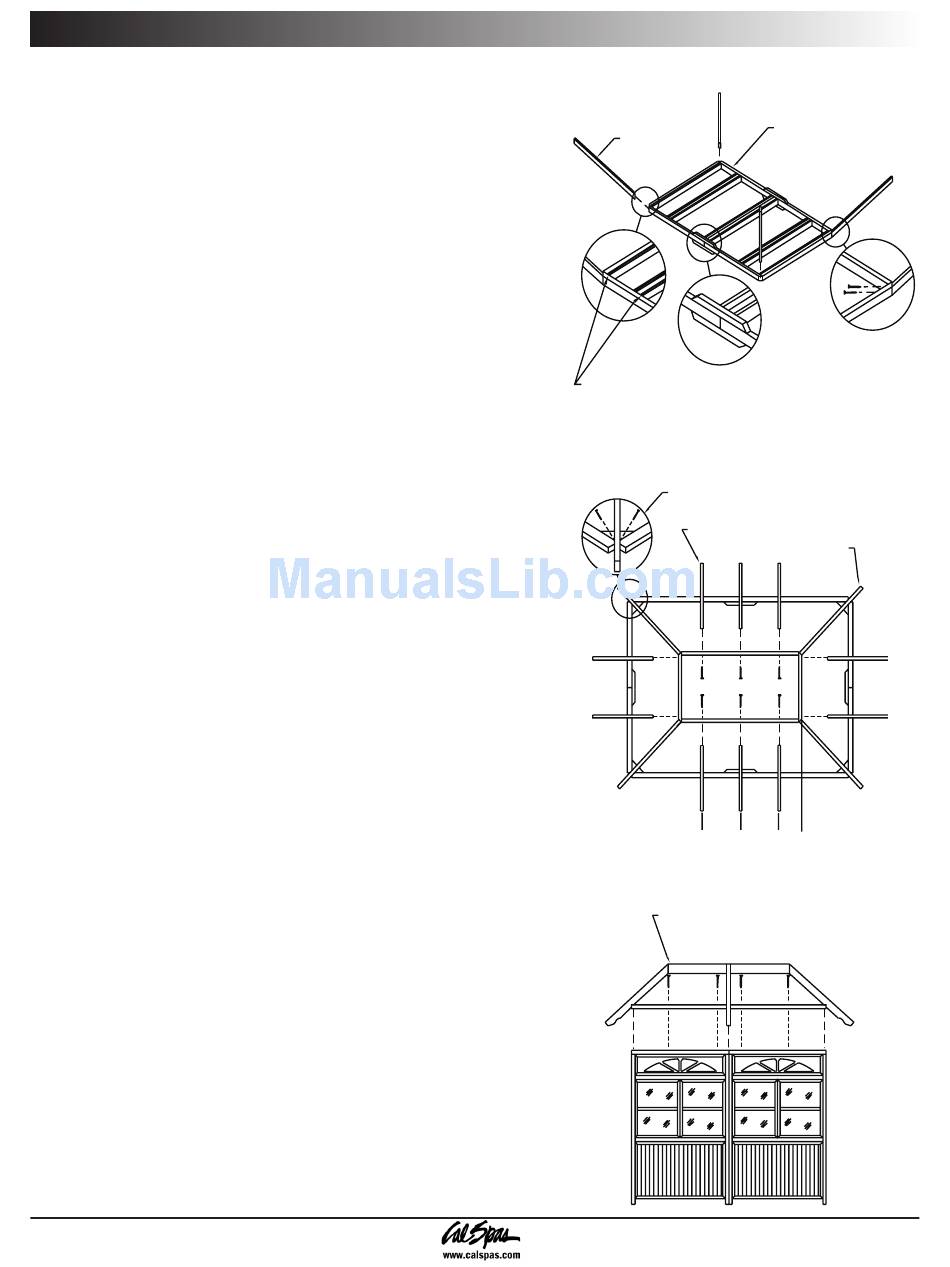

6. Take the hip rafters (4 each) and attach them to each
corner of the top center frame. Make sure that the 45
degree corner matches the 45 degree end on the hip
rafters (Figure D).
7. Take 4 common rafters and attach them to the middle
of each side of the top center frame assembly (Figure
D). Use the toe-in method (see inset).
8. With the common rafters now installed, attach the
remaining jack rafters using the toe-in method. Make
sure that each jack rafter is spaced evenly apart. This
will ensure sufficient anchoring points for the roof
panels.
9. Figure E shows what the roof frame will look like when
it is completed.
It is recommended that you have an assistant for the
following step.
10. Place the assembled roof section on top of the wall
panel assembly. Anchor the roof section by using 2
1/2" screws (Figure F).
Page 26
Attach 4 each hip rafters flush w/top with 3" screws.
D
Hip Rafter
Slider board should be placed flush
with bottom of top center of frame.
Toe in hip rafter with screws
into the roof frame.
Common Rafter
E
48" 48"
(On Center)
Lower roof frame onto wall
panels and screw from top
of roof frame into top of wall.
F
2008 Gazebo Owner's Manual
Top Center of Frame
Hip Rafter
24"
LTR20081011, Rev. A
