Step 3: Roof Panel Installation
It is strongly recommended that you use
a ladder for the final steps of the gazebo
assembly.
1.
Place each roof panel in place (with the
edge resting on the panel supports) and
mount using 2 1/2" screws (Figure A).
If your model gazebo has a dome roof, refer
to Step 3.
2.
Using the provided hardware, mount the
dome bracket (Figure B).
3.
Use 2 1/2" screws to mount all ridge
caps.
4.
Set the roof assembly onto the wall
panel assembly and attach using 2 1/2"
screws.
2008 Gazebo Owner's Manual
LTR20081011, Rev. A
A
Panel
Support
B

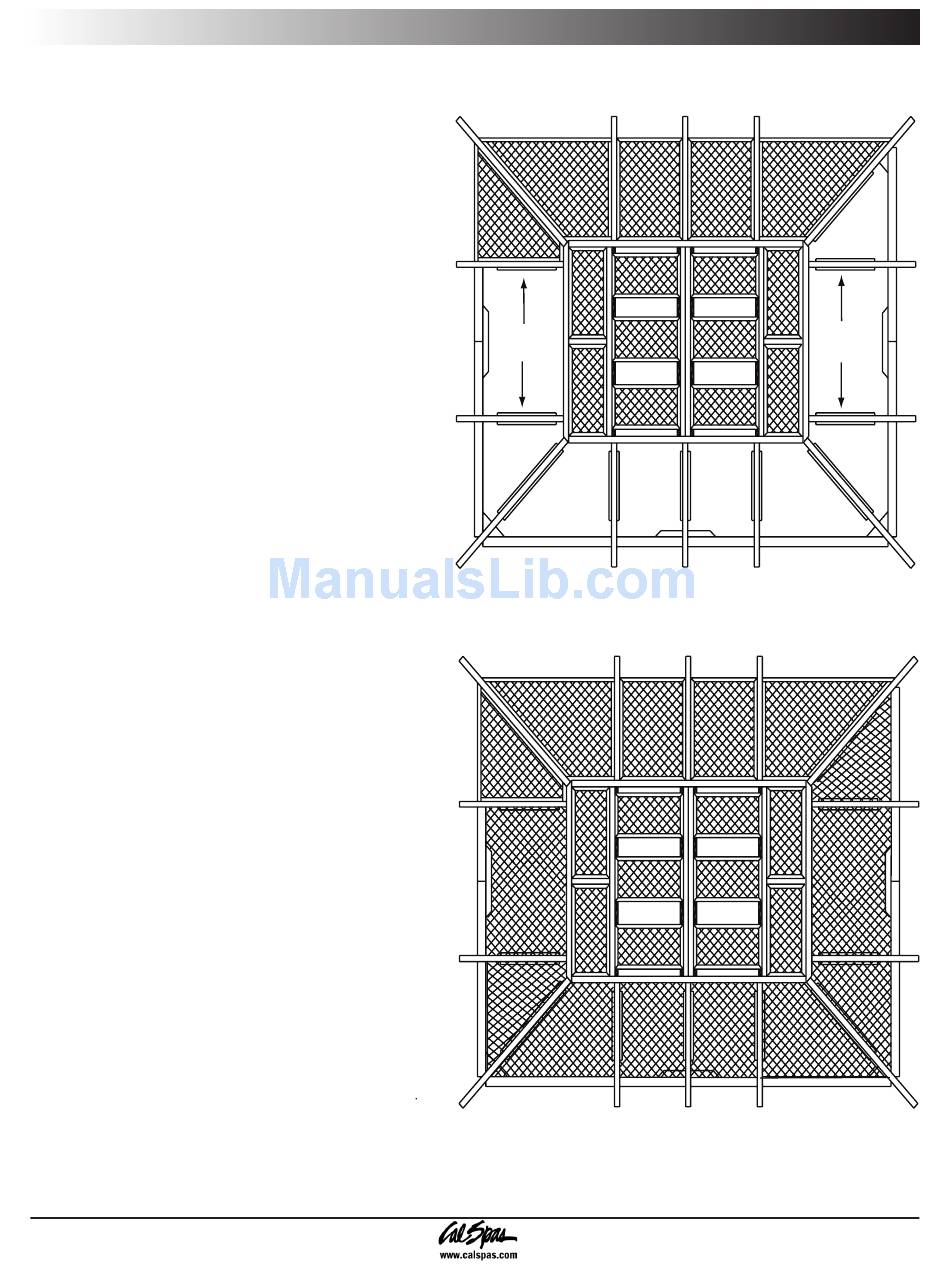

Lattice Gazebo Assembly
Panel
Support
Page 27
