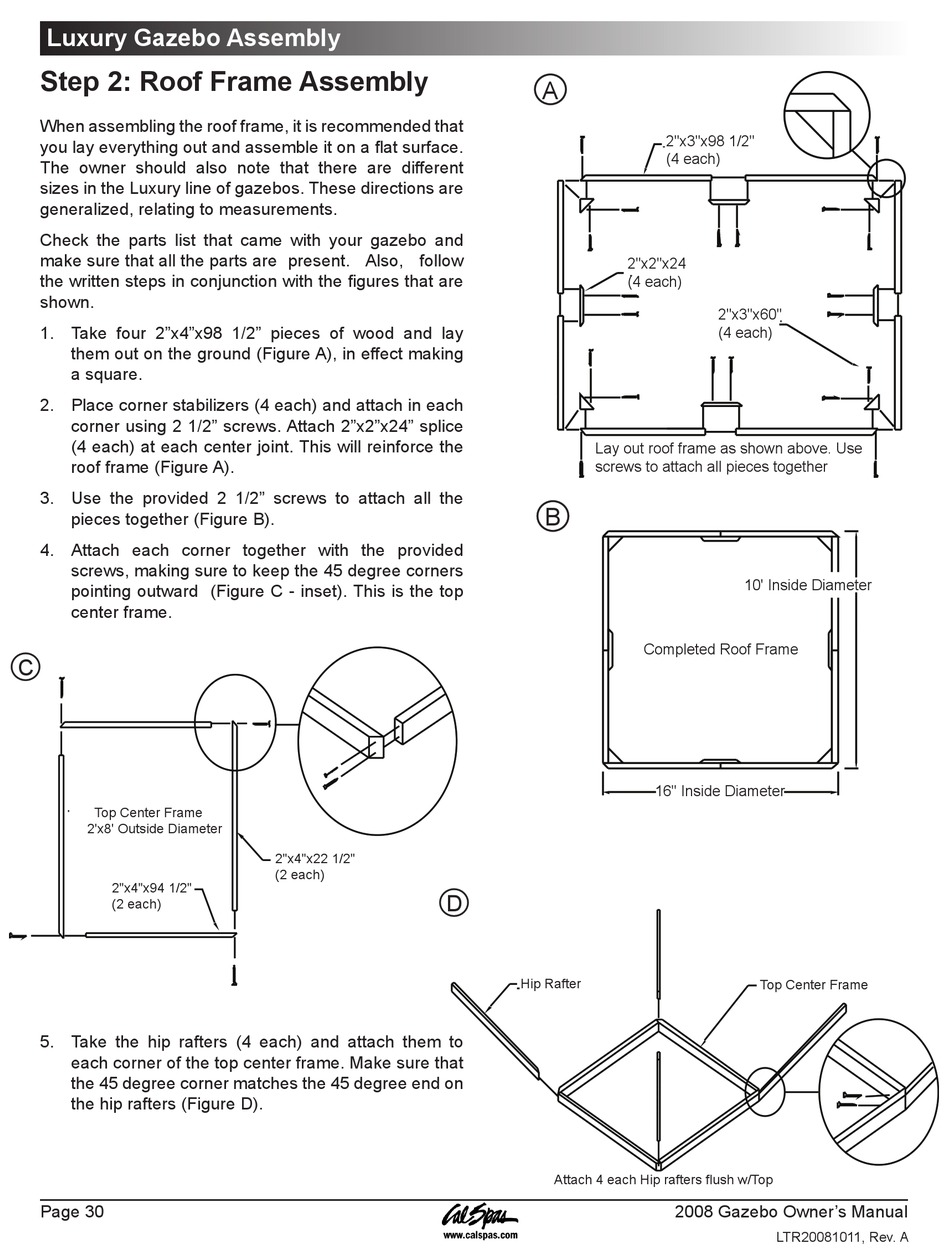

Luxury Gazebo Assembly

Step 2: Roof Frame Assembly

2"x2"x24
(4 each)
When assembling the roof frame, it is recommended that
2"x3"x60"
you lay everything out and assemble it on a flat surface.
(4 each)
The owner should also note that there are different
sizes in the Luxury line of gazebos. These directions are
generalized, relating to measurements.
Check the parts list that came with your gazebo and
Lay out roof frame as shown above. Use
make sure that all the parts are present. Also, follow
screws to attach all pieces together
the written steps in conjunction with the figures that are
shown.
B
1. Take four 2"x4"x98 1/2" pieces of wood and lay
them out on the ground (Figure A), in effect making
a square.
2. Place corner stabilizers (4 each) and attach in each
corner using 2 1/2" screws. Attach 2"x2"x24" splice
Completed Roof Frame
(4 each) at each center joint. This will reinforce the
roof frame (Figure A).
3. Use the provided 2 1/2" screws to attach all the
pieces together (Figure B).
4. Attach each corner together with the provided
16" Inside Diameter
screws, making sure to keep the 45 degree corners
pointing outward (Figure C - inset). This is the top
center frame.
C
Top Center Frame
2'x8' Outside Diameter
2"x4"x94 1/2"
(2 each)
5. Take the hip rafters (4 each) and attach them to
D
each corner of the top center frame. Make sure that
the 45 degree corner matches the 45 degree end on
the hip rafters (Figure D).
Hip Rafter
