Canopy assembly

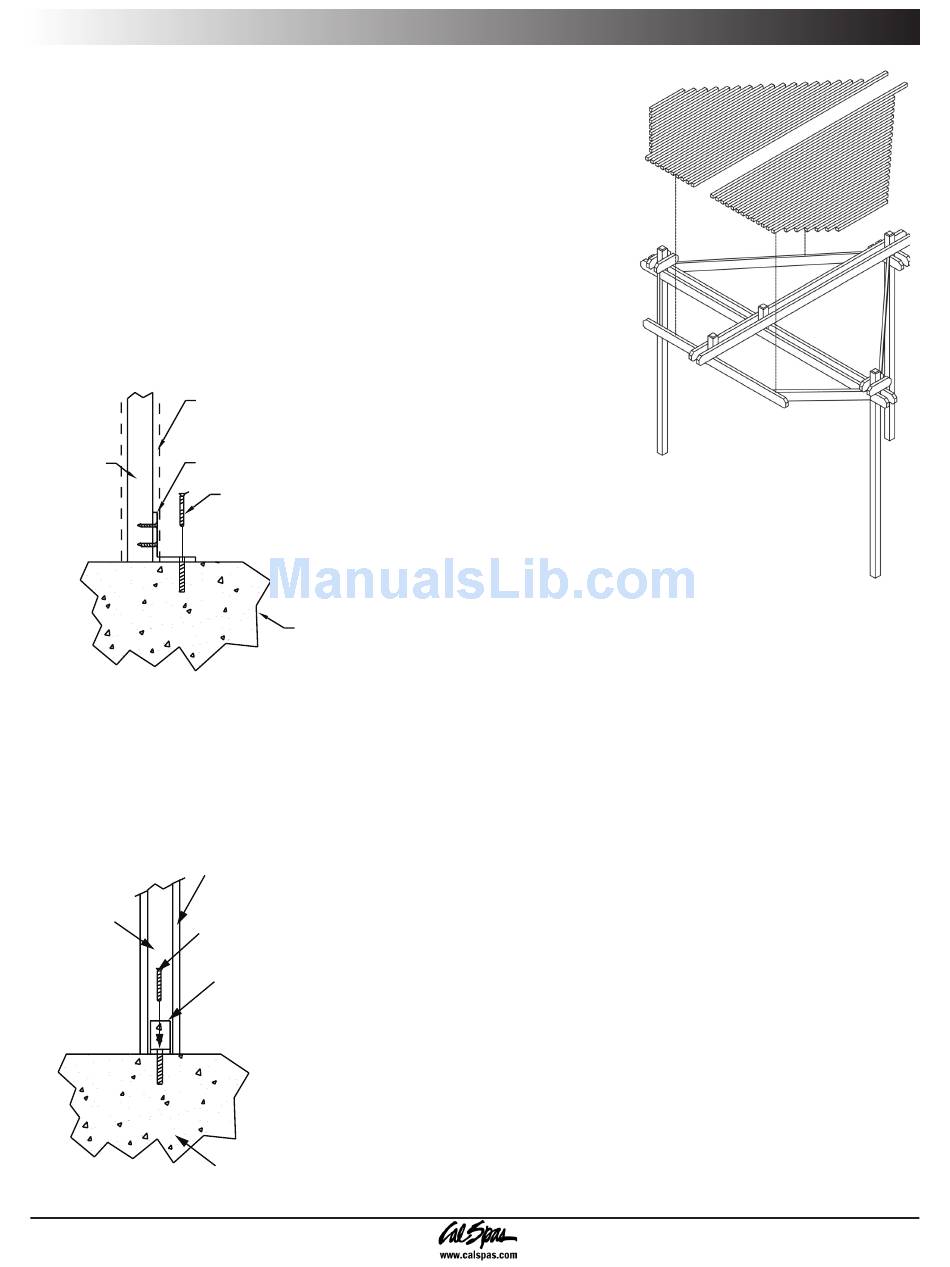

Place and attach canopy pieces as shown. Start with the longest center
pieces and work outward. Pieces should be separated by 2 1/2" and
overhang on each end by 5".
Determine spacing of post with spa size
before anchoring into concrete.
A
4"x 4" Post
Side View
Anchor post into concrete as shown.
B
4"x 4" Post
Front View
2008 Gazebo Owner's Manual
LTR20081011, Rev. A
2" x 6" Board
Galvanized "L" Bracket
Anchoring Bolt
Concrete Foundation
2" x 6" Board
Anchoring Bolt
Galvanized "L" Bracket
Concrete Foundation
901 Spa Cabana Gazebo Assembly
Step 2:
Anchoring the Main Support
Post
When scoring the concrete, make sure that the mark
is dark enough to see, as you will be drilling a hole in
the concrete. This hole will be where the anchoring
bolt is located. Also, it is the owner's responsibility to
obtain a 1/2" masonry bit. This bit will be used to drill the
anchoring holes in the foundation. A masonry bit may be
bought at any local hardware store.
1. Pre-drill the anchoring hole using a 1/2" masonry
drill bit. Drill the hole to a depth of no less than 3".
Using a hammer, insert the anchoring bolt by gently
tapping the bolt into place. Continue to tap into place
until the anchoring bolt is seated securely in the
hole.
2. After drilling the hole and inserting the anchoring
bolt, slide the main support post assembly on to the
anchoring bolt and tighten down using the provided
hardware.
3. Repeat these steps for all three corners of the
gazebo.
