E

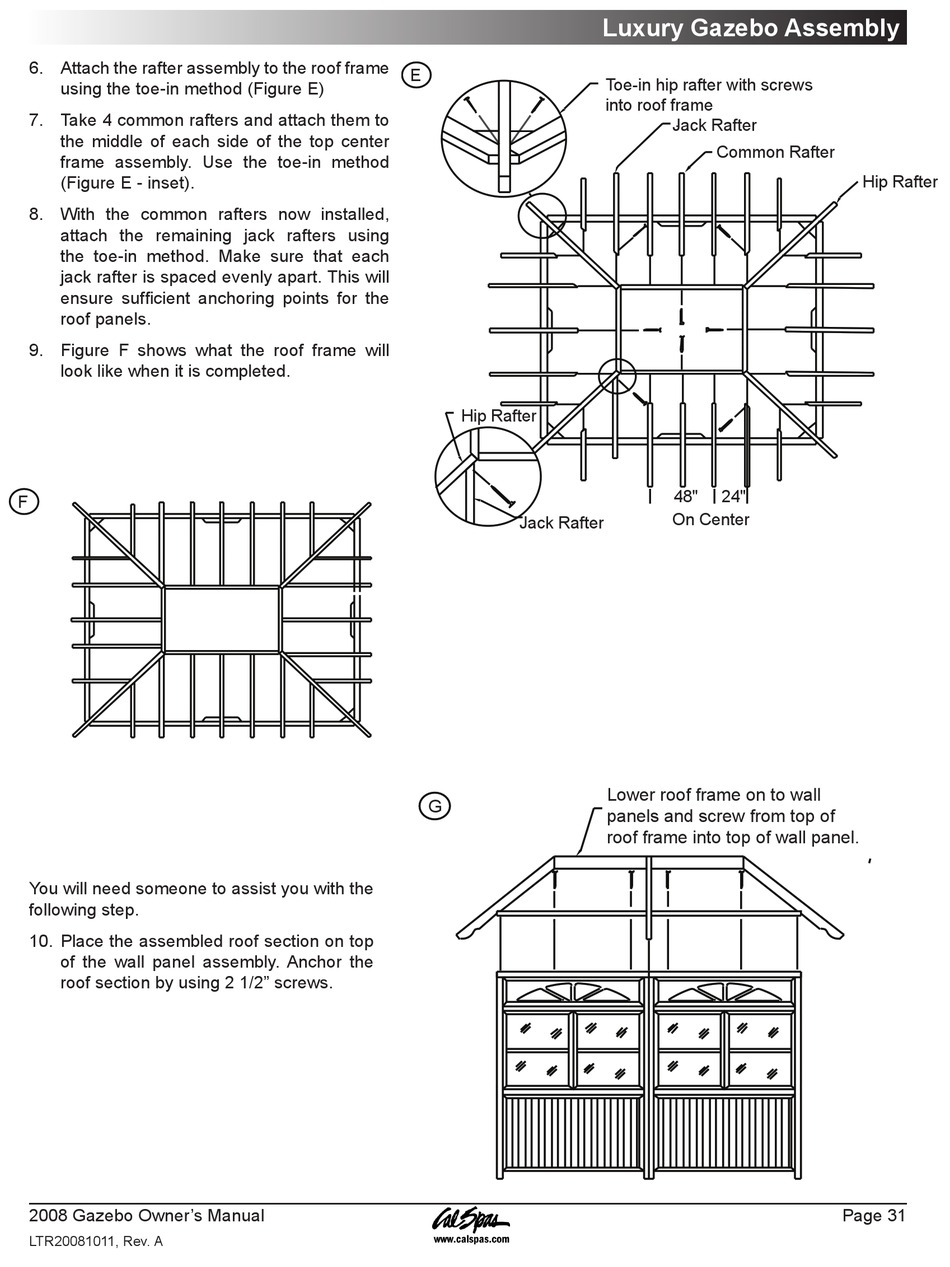

6. Attach the rafter assembly to the roof frame
using the toe-in method (Figure E)
7. Take 4 common rafters and attach them to
the middle of each side of the top center
frame assembly. Use the toe-in method
(Figure E - inset).
8. With the common rafters now installed,
attach the remaining jack rafters using
the toe-in method. Make sure that each
jack rafter is spaced evenly apart. This will
Hip Rafter
ensure sufficient anchoring points for the
roof panels.
9. Figure F shows what the roof frame will
look like when it is completed.
Jack Rafter
F
G
You will need someone to assist you with the
following step.
10. Place the assembled roof section on top
of the wall panel assembly. Anchor the
roof section by using 2 1/2" screws.
2008 Gazebo Owner's Manual
LTR20081011, Rev. A
Toe-in hip rafter with screws
into roof frame
Jack Rafter
Common Rafter
48" 24"
On Center
Lower roof frame on to wall
panels and screw from top of
roof frame into top of wall panel.
Hip Rafter
E
Hip Rafter
Jack Rafter
Hip Rafter
F
Jack Rafter
F
G
G
Common Rafter
Luxury Gazebo Assembly
Toe-in hip rafter with screws
into roof frame
Jack Rafter
Common Rafter
48" 24"
On Center
48" 24"
On Center
Lower roof frame on to wall
panels and screw from top of
roof frame into top of wall panel.
Lower roof frame on to wall
panels and screw from top of
roof frame into top of wall panel.
Hip Rafter
Hip Rafter
Page 31
