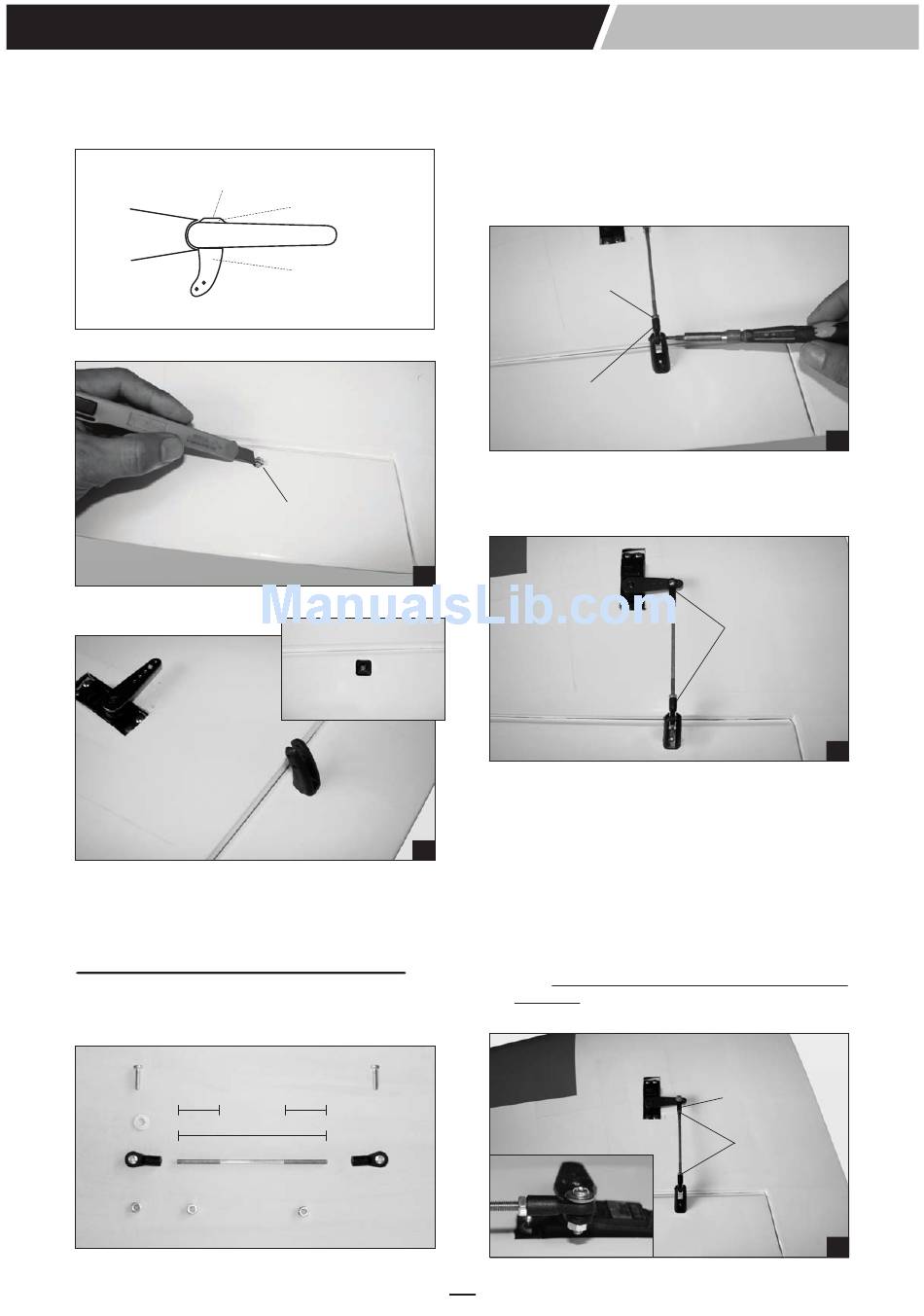

Installing The Aileron Linkages - Phoenix Model Edge 540 Instruction Manual

Instruction Manual
2. Secure the control horn into the aileron.
3mm Screw
Remove the covering
3. Repeat step # 1 - # 2 to install the control horn
on the second aileron.

INSTALLING THE AILERON LINKAGES

The aileron linkages are assembled as shown
below.
22mm
80mm
Plastic washer
Plastic control
8
9
7
22mm
4
1. Locate the pushrod wire. Slide a silicon clevis
retainer onto a clevis. Screw a M3 nut and a
threaded metal clevis onto the threaded end of
the wire. Tighten the nut against the clevis and
then install the clevis on the aileron control
horn.
M3 nut
Plastic link ball
2. Make the same way for the plastic linkball to the
other side of the pushrod wire.
3. Plug the aileron servo into the receiver and
center the servo. Install the servo arm onto the
servo. The servo arm should be perpendicular
to the servo and point toward the middle of the
wing.
4. Center the aileron and hold it in place using a
couple of pieces of masking tape. Adjust the
linkage until the aileron and the servo arm are
both centered and then tighten the nut against
the clevis. Install the plastic linkball to the servo
arm. Remember use thread locking compound
to secure.
EDGE 540
10
Adjust
the linkages
11
Link ball
M3 nut
12
