Installing The Horizontal Stabilizer - Phoenix Model Edge 540 Instruction Manual

Instruction Manual
Screw
Flat washer
Aluminum link ball
Plastic link ball
Servo arm
Flat washer
M3 nut
5. Repeat step 1 - step 4 for the second aileron
linkage.

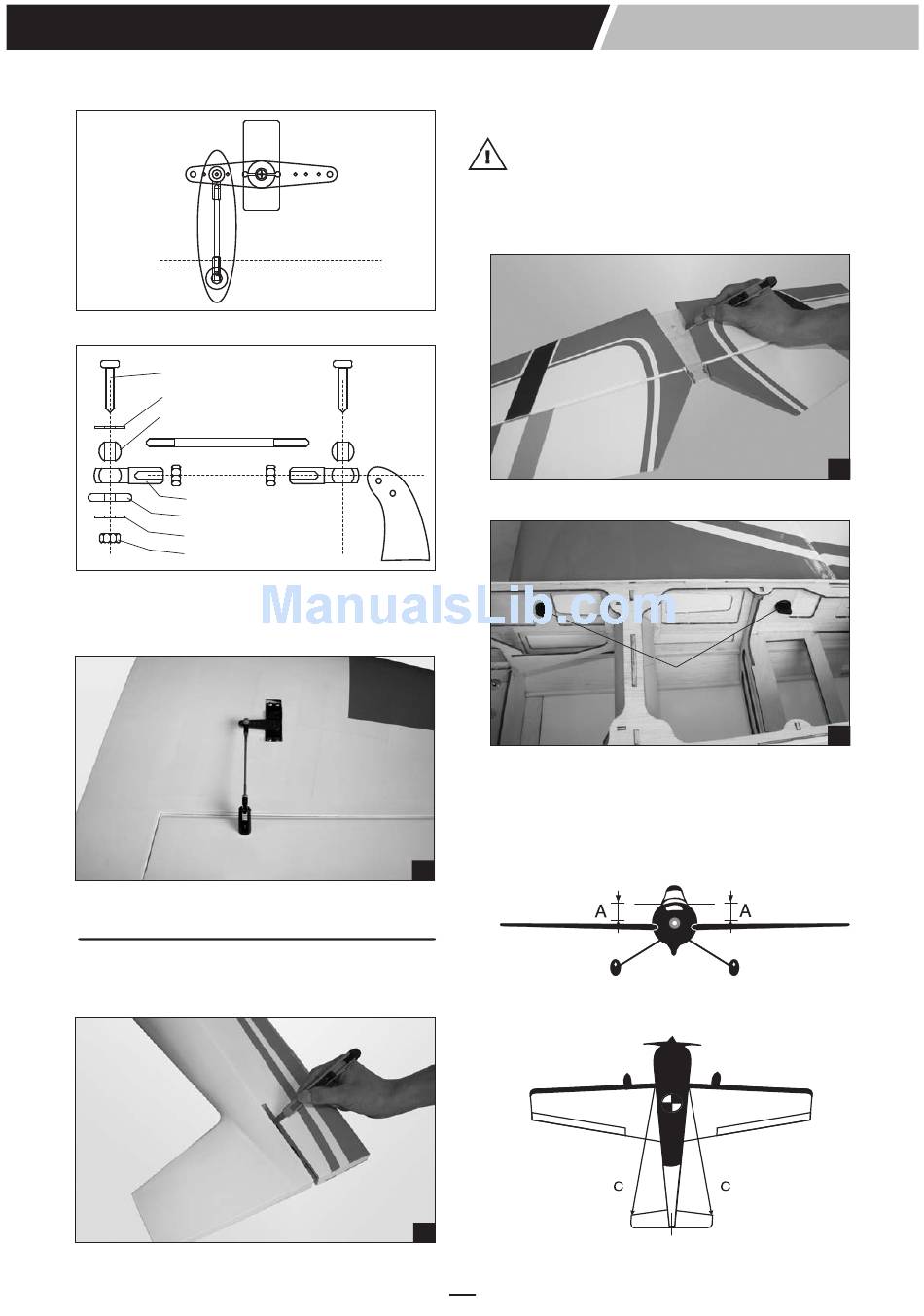

INSTALLING THE HORIZONTAL STABILIZER

1. Using a modeling knife, cut away the covering
from the fuselage for the stabilizer and remove it.
2. Remove the covering from the stabilizer.
When cutting through the covering to remove it,
cut with only enough pressure to only cut
through the covering it's self. Cutting into the
balsa structure may weaken it. This could lead
to possible failure during flight.
3. Attach the wing to the fuselage as picture.
4. Test the position of the elevator and adjust it as
shown.
13
14
5
EDGE 540
Plastic screw
15
16
