BATTERY BACKUP INSTALLATION

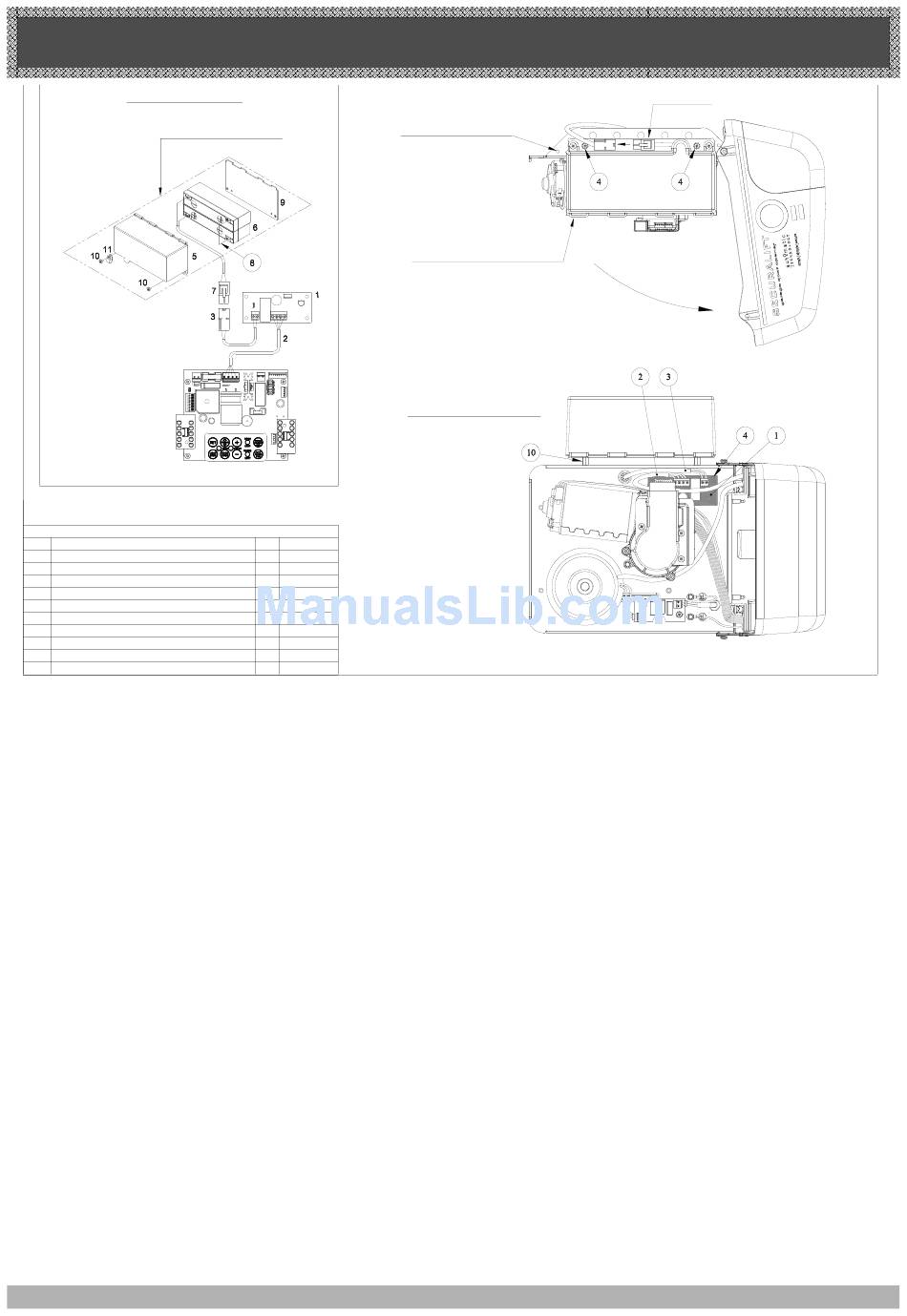

WIRING DIAGRAM
BATTERY ASSEMBLY (#01660)
PARTS LIST
ITEM DESCRIPTION
1 SBY-3 VERSION 1.00
2 SBY-3 ESV24 CHARGER HARNESS
3 SBY-2 BATTERY HARNESS
4 PAN HEAD SCREW W'WASHER M4x8
5 BATTERIES COVER
6 BATTERIES 12V SEC12-2.2 AGM TYPE
7 BATTERY HARNESS
8 BATTERY COUPLING WIRE - ESV24
9 BATTERIES SUPPORT
10 HEXAGON STANDOFF M4
BATTERY BACK UP (OPTIONAL)
The opener has provision to include a battery back up
module. This is an ideal addition if the garage door is the
only entrance to the garage or if the area is prone to
power cuts.
INSTALLATION
1. Disconnect power to the opener .
2. Remove screws and swing the cover to open fig 42.
3. mount battery pack and secure with item 4 and 10.
4. Mount the Charger Board SBY-3 on three hex spacers
pre mounted on base and
secure with three (3) M4 x 8 screws.
5. Feed 2-Wire battery Harness , through the grummet on
the base plate and connect to sby-3
6. Feed charger harness from sby-3 to control board and
plug 4 pin connector marked sby-3 on the control board
Warning: After Step 7 the opener may become active
(even when power is off). This is a result of a residual
charge in the batteries.
This will only occur if batteries still hold some charge.
7. Connect battery harnesses item 3 and 7 together
(Fig. 42).
8. Reconnect power
1. REMOVE SCREWS &
SWING COVER TO OPEN
5. CLOSE COVER AND
RE-SECURE WITH SCREW
3. MOUNT BATTERY AND SECURE
WITH ITEM 4 & 10
2. CONNECT WIRES AS SHOWN
REFER TO WIRING DIAGRAM
QTY ORDER CODE
1 00852
1 14115
1 15660
7 10320
1 16460
2 15470
1 15670
1 12005
1 16480
2 11190
TESTING BATTERY BACK UP
1. Press either operate button or transmitter
to test the opener.
2. Whilst door is in motion disconnect mains power
The door should continue to operate as normal.
Note: Wait for the door to complete its travel.
3. Press operate or transmitter to activate the door.
4. Whilst door is in motion re-connect power. The door
should complete the cycle as normal.
TROUBLE SHOOTING
If door stops or moves very slowly under battery power:
- Batteries may be weak or have no charge
- connect power and allow to charge.
- Batteries may take 24 - 48 hours to reach maximum
charge capacity.
22
FIG. 42
4. CONNECT
