- Page 1 GDO-9v2 Enduro™ Gen 2 Overhead Garage Door Opener Featuring TrioCode Technology ™ Technical Document Installation Manual 1.01 26 JULY 2012 English Part # 13289 (Manual) INSTALLATION INSTRUCTIONS | OWNERS COPY GDO-9v2GEN2 User Manual v101.indd 1 15/11/2012 10:07:35 AM...
- Page 2 WARNING: It is vital for the safety of persons to follow all instructions. Failure to comply with the installation instructions and the safety warnings may result in serious personal injury and/or property damage. Please save these instructions for future reference. Automatic Technology (Australia) Pty Ltd to the extent that such may be lawfully excluded hereby expressly disclaims all conditions or warranties, statutory or otherwise which may be implied by laws as conditions or warranties of purchase of an Automatic Technology (Australia) Pty Ltd Garage Door Opener.
-
Page 3: Table Of Contents
GDO-9v2 Enduro™ Gen 2 Overhead Garage Door Opener Important Safety Instructions Features Opener Controls Kit Contents Installation C-Rail Attachment Determine Door Type Mounting - Track Type Door Mounting - Spring Loaded Door Wired Safety Beam Installation Mounting Door Bracket & Arms Auto-Close Setup Setting Speed and Limits Battery Backup Installation... -
Page 4: Important Safety Instructions
Important Safety Instructions WARNING: It is vital for the safety of persons to follow all instructions. Failure to comply with the following safety instructions may result in serious personal injury and/or property damage. CAUTION: If your garage has no pedestrian entrance door, an emergency access device should be installed. This accessory allows manual operation of the garage door from outside in case of power failure. - Page 5 Important Safety Instructions The unit should be installed so that it is protected from the elements. It should not be exposed to water or rain. It is not to be immersed in water or sprayed directly by a hose or other device. The garage door must be well balanced.
-
Page 6: Features

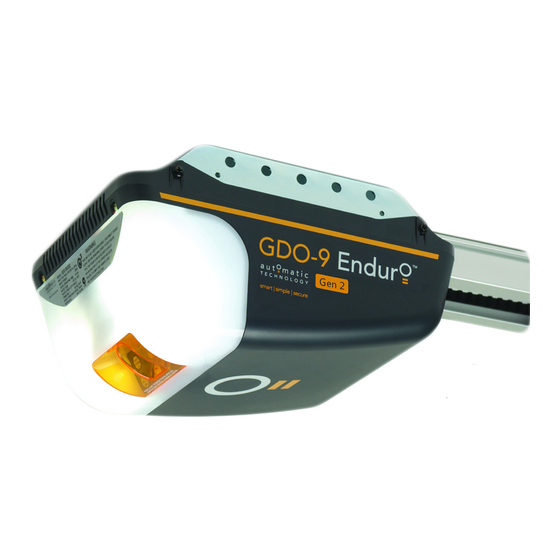

Features Thank you for purchasing the Automatic Technology GDO-9v2 Enduro™ Overhead Garage Door Gen 2 Opener. Designed to suit sectional overhead and one piece tilt up doors, the components and materials used ensure this opener will provide years of smart, simple and secure operation. Listed below are some of the many features: Operation To open or close the door simply press a button on a TrioCode™... -
Page 7: Manual Operation
SmartSolar™ and Battery Backup Compatibility (optional) The opener can be fitted with a SmartSolar™ or Battery Backup kit for operation in the event of a power outage, or where mains power access is not available. NOTE: If the door is the only entrance to the garage, and a battery backup kit is not fitted, a keyed cable release should be fitted externally to the garage. -
Page 8: Opener Controls
Opener Controls Terminal Block. V+ is used to power devices such as Wireless PE Beam, external receiver etc. EB1 first Safety Beam input. 0V (Input) is a 0 volt connection for PE Beam, external receiver, osc, aux etc. EB2 second Safety Beam input. 0V (Input) is a 0 volt connection for PE Beam, external receiver, osc, aux etc. - Page 9 PROG INPUT is used to connect the Automatic Technology Handheld Programmer ‘PG-3’ for editing control and receiver functions, accessing diagnostic tools, and activating special features and operating modes. JP1 CONNECTOR the shunt must be fitted for solar operation. SBCO2 J4 STANDBY BATTERY OR SOLAR CHARGER CONNECTOR the shunt must be plugged if battery or solar charger is not connected.
-
Page 10: Kit Contents
Kit Contents Drive Unit 1 x GDO-9v2 Enduro™ drive unit (Fig. 02) Gen 2 1 x TrioCode™ Transmitter pack (Fig. 02) (Pack includes two keyring transmitters and batteries) (Fig. 02) 1 x Wall mount transmitter with battery (Fig. 02) 2 x Door attachment arms 1 x Accessory and hardware pack (Fig. -
Page 11: Installation
C-Rail Attachment Single piece Shaft C-Rails are pre-tensioned during manufacturing for transport. Some extra tension may be required after installation. If the C-Rail needs to be shortened or lenghtened (using the extension kit) ensure these modifications are made to the drive unit end. Locate shaft into sprocket Step 1 - Secure C-Rail to Drive Unit Locate and insert the shaft of drive unit into the C-... -
Page 12: Determine Door Type
Determine the Door Type Step 2 - Determine Door Type Determine which type of garage door you have as illustrated below. (Fig. 06 Fig. 08) For a sectional (panel) door on tracks (Fig. 06) proceed with the installation from Step 3. Track Door Sectional door with track... -
Page 13: Mounting On A Track Type Door
Mounting on a Track Type Door WARNING: The opener must be securely fastened to structural supports, otherwise opener failure may ensue causing serious personal injury and/or property damage. 60mm 60mm Level Level Step 3 - Determine Bracket Position Track Open the door and find the highest point of travel of Track the top door panel. -
Page 14: Mounting - Spring Loaded Door
Mounting on a Spring Loaded Door WARNING: The opener must be securely fastened to Centre of Door structural supports, otherwise opener failure may ensue causing serious personal injury and/or property damage. Step 7 - Determine the Door’s Centre Find the centre of the door and mark this location both above the door and on top of the door. -
Page 15: Mounting Door Bracket & Arms
Mounting Door Bracket & Arms Step 11 - Mounting Door Bracket The door bracket comes in two parts. The bottom plate with two mounting holes is used on its own for one piece doors. For sectional doors, the top plate is placed over (Fig. -
Page 16: Setting Speed And Limits
Setting Speed and Limits Step 13 - Setting Speed Mode The default speed of the opener has been set to suit the majority of applications. However, there are three speed modes available if required:- Slow - to suit one piece door without tracks Medium ( default ) - suits majority of applications Fast - to suit some sectional applications The speed settings can only be changed before setting... -
Page 17: Setting Travel Limits - Control Panel
Setting Speed and Limits Setting Travel Limits : Via Control Panel Step 13.1 - Setting Travel Limits NOTE: If Safety Beams are to be used they must be installed before setting the travel limits. WARNING! Use caution when operating the manual release with the door open since it may fall rapidly due to weak or broken springs, or an improperly balanced door. -
Page 18: Setting Travel Limits - Transmitter
Setting Speed and Limits Setting Travel Limits : Via Transmitter The GDO-9v2 Enduro™ has the alternate Gen 2 ability to set travel limits using the transmitter, allowing free movement around the garage to better assess the desired limit positions. Step 14.1 - Code a Transmitter for Limit Setting Ensure the opener is powered up and button cover is removed. -
Page 19: Safety Obstruction Forces
Safety Obstruction Forces Safety Obstruction Force Test WARNING! Take care when testing or adjusting the Safety Obstruction Force. Excessive force may cause SERIOUS PERSONAL INJURY and/or PROPERTY DAMAGE. WARNING! Photo electric beams must be installed if the closing force at the bottom edge of the door exceeds 400N (40kg) force. -
Page 20: Adjusting Safety Obstruction Forces
Safety Obstruction Forces Adjusting Safety Obstruction Force The Safety Obstruction Force is calculated automatically during setup. Adjusting this is normally only necessitated by environmental conditions such as windy or dusty areas, and areas with extreme temperature changes. WARNING! Photo electric beams must be installed if the closing force at the bottom edge of the door exceeds 400N (40kg) force. -
Page 21: Coding Transmitters
Coding Transmitters Step 17.1 - Code a Transmitter Button for Door Operation Ensure the button cover is removed Press and hold the DOOR CODE button (Fig. 32). Press one of the four buttons on the transmitter for two (2) seconds, pause for two (2) seconds, then press the same button again for two (2) seconds. -
Page 22: Courtesy Light
Coding Transmitters Step 18 - Remotely Coding Transmitters Using this method transmitters can be coded without access to the opener’s control panel as long as a pre- coded transmitter is available. IMPORTANT NOTE: The door or courtesy light must activate when the steps below are performed. This indicates that the pre-coded transmitter is in range of the opener, and the correct button has been pressed. -
Page 23: Accessories
Wired Safety Beams Installation Step 19 - Safety Beams (optional) Safety Beams extend across the garage door opening. The Safety Beam is designed to detect an obstruction while the door is closing and to send a signal to the garage door opener to reverse or stop the door movement. -
Page 24: Auto-Close Setup
Wired Safety Beams Installation Step 19.2 - Safety Beam Failure Emergency Close When the user finds that they are unable to move the door and suspect that it is due to a faulty SAFETY BEAM they can attempt to enter Safety Beam Failure Emergency Close mode by press and holding a pre-coded button on the remote control or OSC button on the console for five seconds. -
Page 25: Battery Backup Installation
Battery Backup Installation Battery Backup Installation Step 21.2 - Testing Battery Back Up Step 21.1 - Connect the Battery Back Up Kit Press either the OPERATE button or transmitter Disconnect power to the opener. to test the opener. Remove screws and swing open the cover (Fig 44). -
Page 26: Smartsolar™ Installation
SmartSolar™ Installation WARNING: Do not connect batteries until Step 22.3 Step 22.1 - Mount the Charger Board Unplug the drive unit from mains power. Remove the screws, swing open the main cover and remove the light diffuser. Then remove the transformer, EMC board (if fitted) and mains power cable. -
Page 27: Final Setup
Final Setup Step 23 - Setting of Courtesy Light Time The preset courtesy light time is three minutes. This time can only be changed by “PG3” programmer. Step 24 - Setting the Pet Mode position The default Pet Mode height can be changed as follows: Drive and stop the door at the desired Pet Mode open position by pressing OPERATE button on the console or the transmitter button coded for... -
Page 28: Default Settings & Specifications
Default Settings & Specifications Factory default settings Default Step Maximum Courtesy light time 3 Mins. 4 Mins. Obstruction force margin 0.7 Amps 0.1 Amps 2.0 Amps Auto close time 0 Secs 1 Sec. 255 Secs. Speed Mode Medium Fast Maintenance counter 3000 Cycles Technical specifications Power supply... -
Page 29: Door Status Indicators
Door Status Indicators Door Opener State OPEN LED CLOSE LED (Red) STATUS LED Beeper (Green) (Yellow) Open Close Opening Flashing Closing Flashing Door travel stopped Flashing Flashing Door obstructed when opening Flashing Door obstructed when closing Flashing Beeps as door moves Opener overloaded Alternating flashes Alternating flashes... -
Page 30: Troubleshooting Guide
Troubleshooting Guide Symptom Possible cause Remedy Door will not operate Mains power not switched on Switch on mains power Door is obstructed Remove obstruction Door is locked or motor jammed Unlock door or remove jam Door tracks/hardware damaged Door requires service/repair by qualified technician Door starts to close but Adverse weather conditions (wind... -
Page 31: Maintenance
Maintenance Maintenance Maintenance counter Whilst your opener does not require any periodic GDO-9v2 Enduro™ has a built in maintenance Gen 2 maintenance, the door that it is fitted to, does. counter. From factory this is loaded with 3000 cycles. Your garage door is a large, heavy, moving object When this counter expires, the service yellow LED and should be tested regularly to ensure it is in will light up. -
Page 32: Parts List
Parts List Gen 2 GDO-9v2 Enduro™ Owner Installation Instructions GDO-9v2GEN2 User Manual v101.indd 32 15/11/2012 10:07:55 AM... - Page 33 Gen 2 Owner Installation Instructions GDO-9v2 Enduro™ GDO-9v2GEN2 User Manual v101.indd 33 15/11/2012 10:07:58 AM...
-
Page 34: Important Safety Checks
Important Safety Checks Please refer to the risk assessment table below and ensure all the necessary controls are in place. Installation Risk Assessment Hazard Control Muscular strain from incorrect • Practice correct lifting techniques (carton weighs 9 kg) lifting of opener Muscular strain from incorrect •... -
Page 35: Warranty
Warranty and Exclusion of Liability 1. This Warranty is given by Automatic Technology (Australia) (h) the operating force exceeding 15kg* (150 Newton) when moving Pty Ltd (ABN 11 007 125 368) (ATA), 6-8 Fiveways Boulevard, the door manually to the open or closed position; Keysborough 3173, 1300 133 944, sales@ata-aust.com.au (i) the door surface area exceeding 18m2 for GDO-9v2 Enduro™... - Page 36 (Australia) Pty Ltd. No part of this document may be reproduced without prior permission. In an ongoing commitment to product quality we reserve the right to change specification without notice. E&OE. Automatic Technololgy (Australia) Pty Ltd ABN 11 007 125 368...
