iNetVu™ Service Manual
4.14.2.

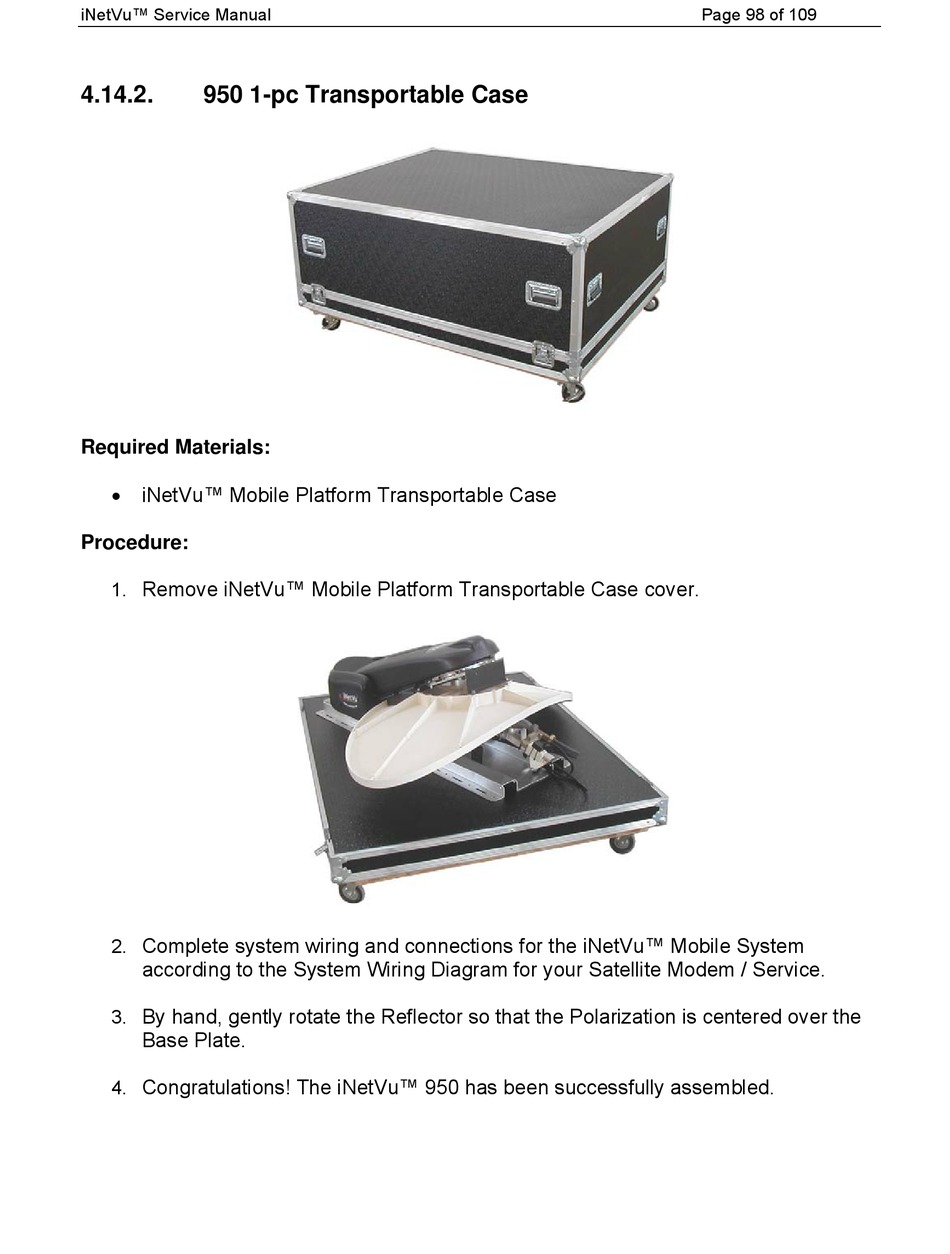

950 1-pc Transportable Case

Required Materials:
 iNetVu™ Mobile Platform Transportable Case
Procedure:
Remove iNetVu™ Mobile Platform Transportable Case cover.
1.
Complete system wiring and connections for the iNetVu™ Mobile System
2.
according to the System Wiring Diagram for your Satellite Modem / Service.
By hand, gently rotate the Reflector so that the Polarization is centered over the
3.
Base Plate.
Congratulations! The iNetVu™ 950 has been successfully assembled.
4.
Page 98 of 109
