Insert four (4) carriage bolts through the front of the Reflector in the location
8)
depicted below.
Insert the two (2) SHORT carriage bolts in the UPPER holes and the two (2)
LONG carriage bolts in the LOWER holes.
Secure carriage bolts evenly in a cross pattern at the rear using the flat washers,
9)
locking washers and nuts. Tighten to approximately 25 ft/lbs.

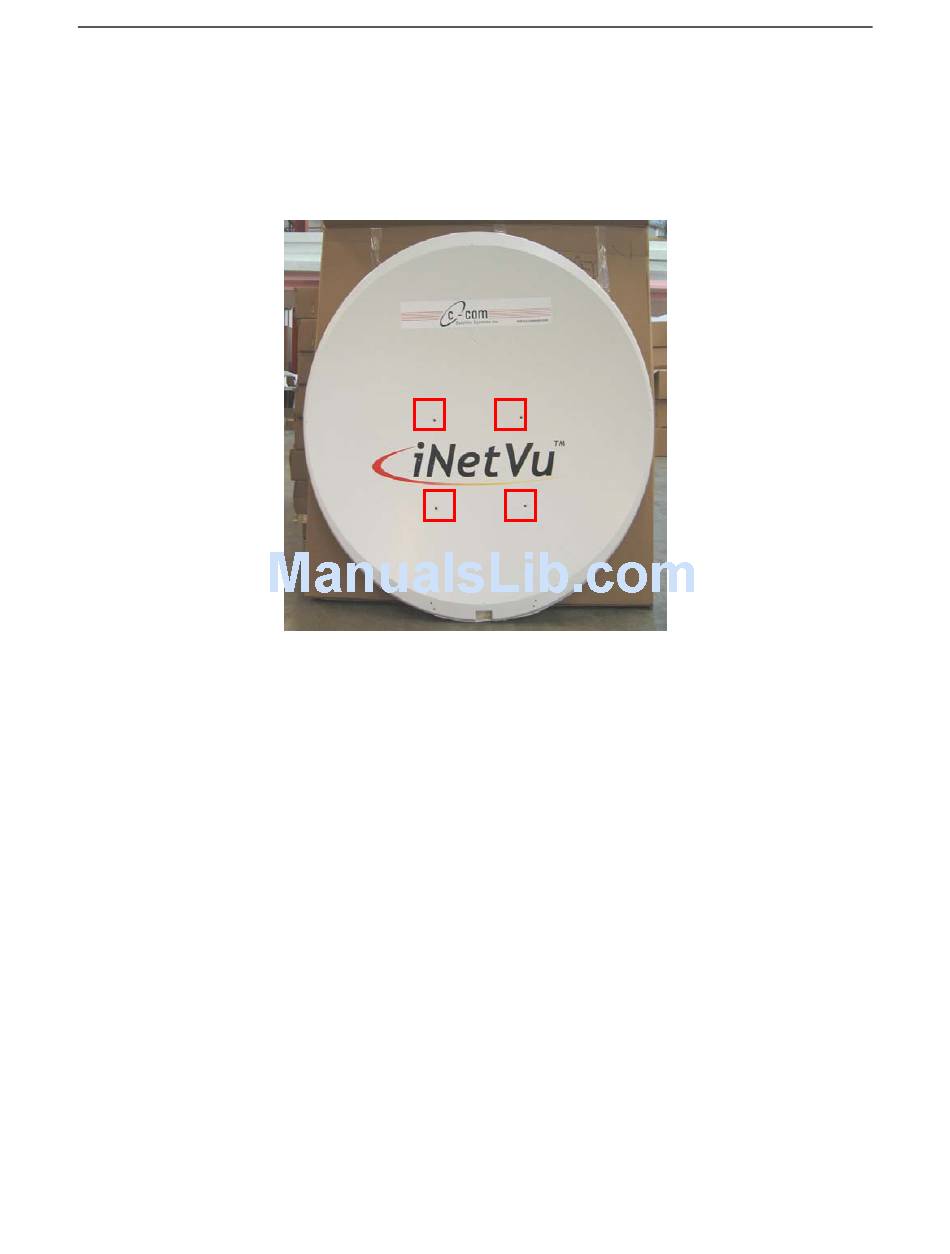

Fig. 32: Reflector Mounting Locations
