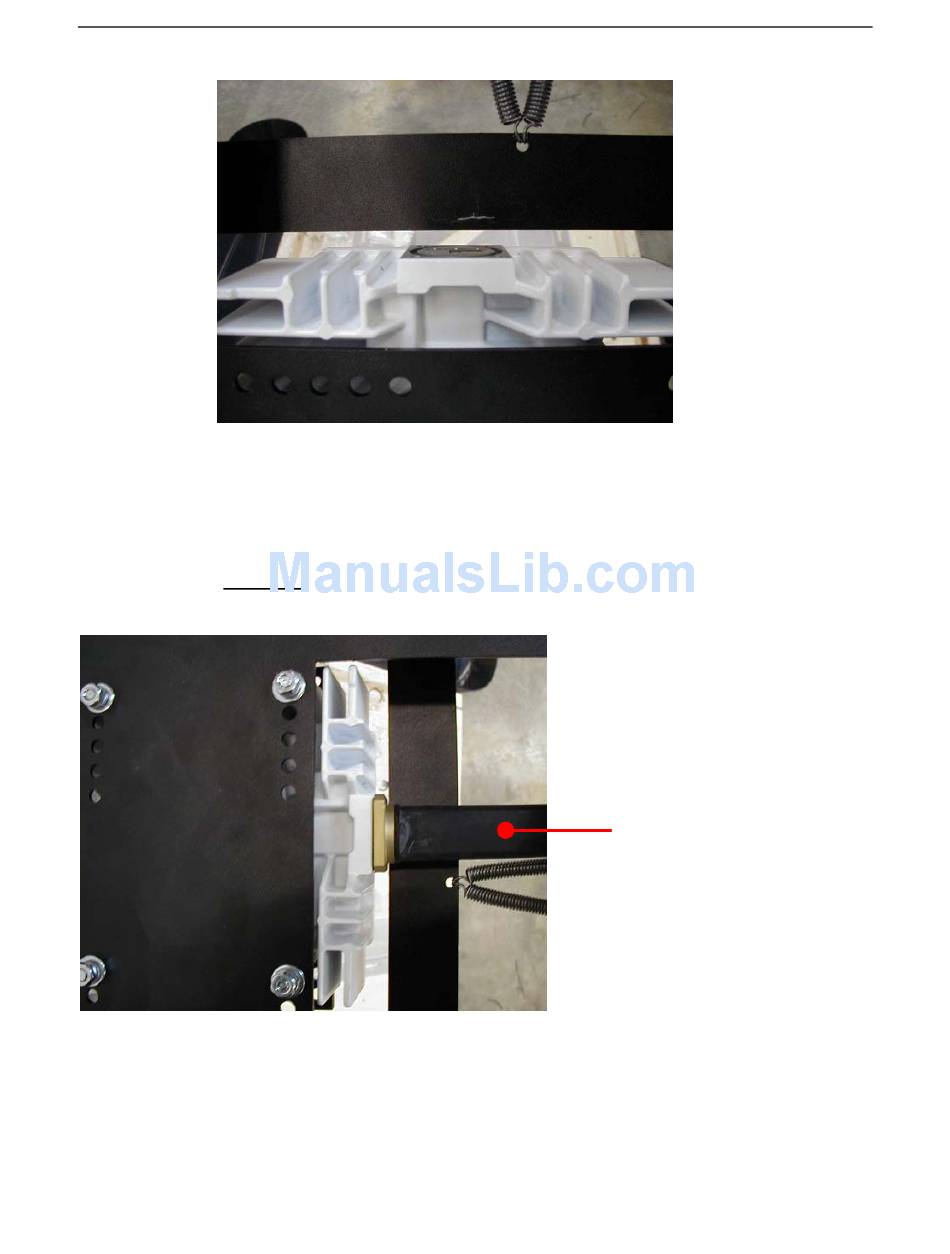

Fig. 45: Correctly mounted and secured BUC with ¼" space between BUC and Feed Arm Bar
4. Connect 'Tx' Coaxial cable to the BUC.
5. Connect the Flexible Waveguide to the BUC. Ensure that the Flexible Waveguide
is on the right side of the springs (if facing the Reflector), as depicted in the figure
below.
Fig. 46:
Congratulations! The BUC has been successfully installed.
8.
Correct Position of the connected Flexible Waveguide
Page 85 of 109
Flexible Waveguide
attached on the correct
side of the Polarization
Cage springs.
