iNetVu™ Service Manual
iNetVu™ 740/750/950/980 Mobile Platform:

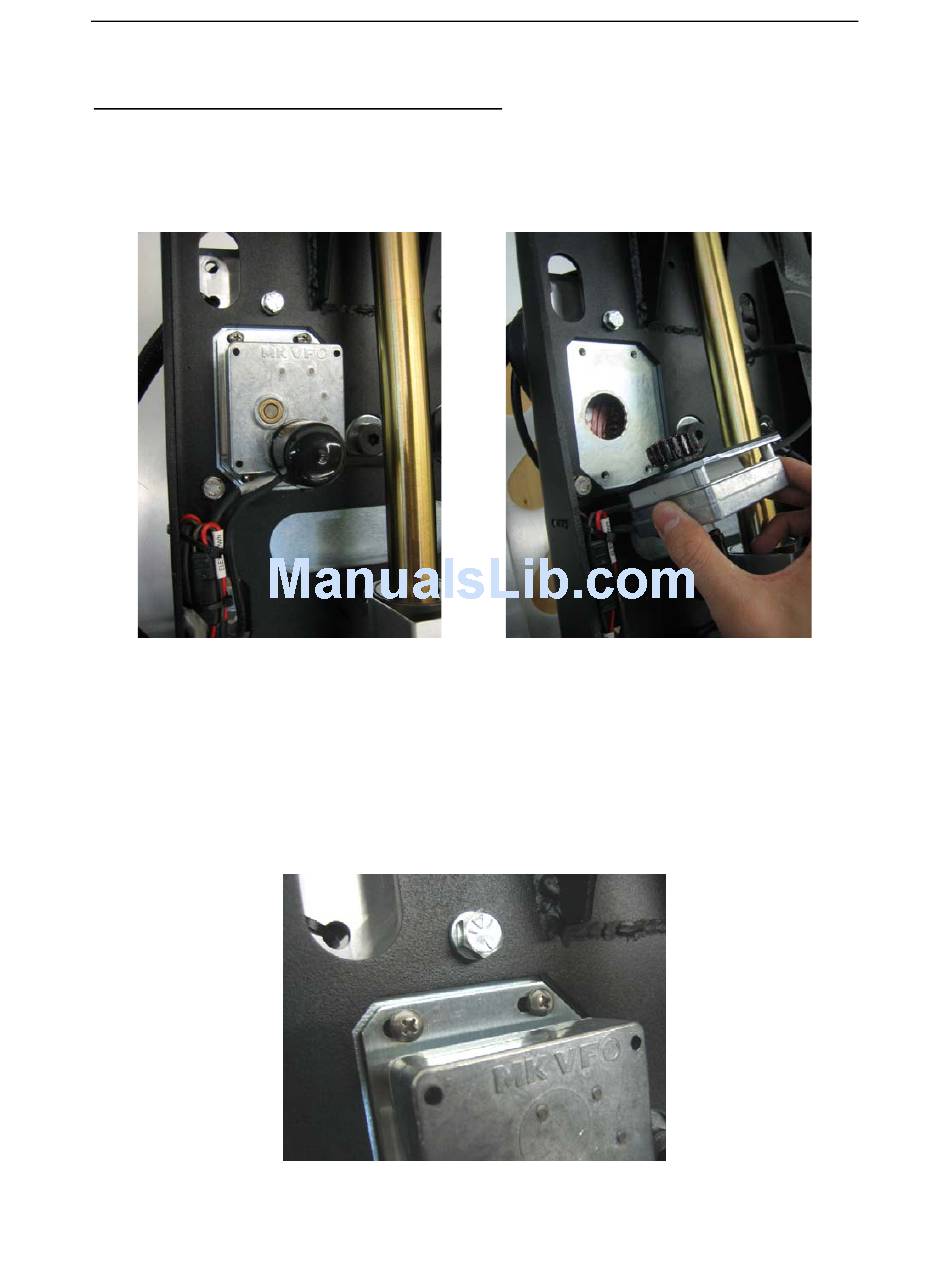

1. Remove the Elevation Cover.
2. Remove the Polarization Motor.
3. Rotate gear by moving the Polarization, and apply grease until it has been
completely applied.
4. Re-install Polarization Motor.
If your Polarization Motor Attachment Plate has slotted holes, ensure that when you
install the Polarization Motor, you slide the motor towards the main polarization gear
(as far to the right as possible).
Fig. 4: Installed Slotted Polarization Motor Attachment Plate
Page 14 of 109
