iNetVu™ Service Manual

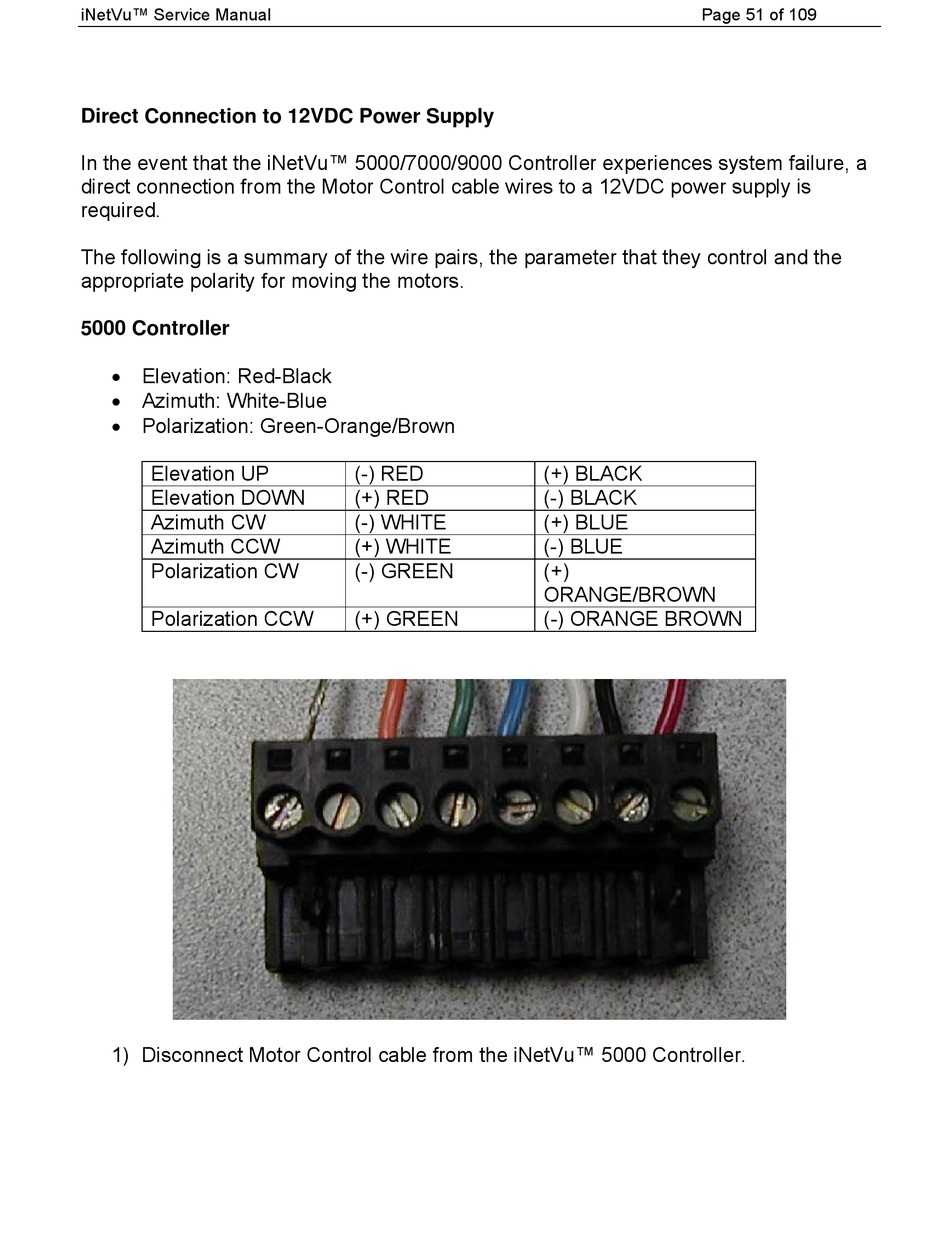

Direct Connection to 12VDC Power Supply
In the event that the iNetVu™ 5000/7000/9000 Controller experiences system failure, a
direct connection from the Motor Control cable wires to a 12VDC power supply is
required.
The following is a summary of the wire pairs, the parameter that they control and the
appropriate polarity for moving the motors.
5000 Controller
 Elevation: Red-Black
 Azimuth: White-Blue
 Polarization: Green-Orange/Brown
Elevation UP
Elevation DOWN
Azimuth CW
Azimuth CCW
Polarization CW
Polarization CCW
1) Disconnect Motor Control cable from the iNetVu™ 5000 Controller.
(-) RED
(+) RED
(-) WHITE
(+) WHITE
(-) GREEN
(+) GREEN
Page 51 of 109
(+) BLACK
(-) BLACK
(+) BLUE
(-) BLUE
(+)
ORANGE/BROWN
(-) ORANGE BROWN
