Remove Reflector and Feed Arm from Reflector Case.
4.

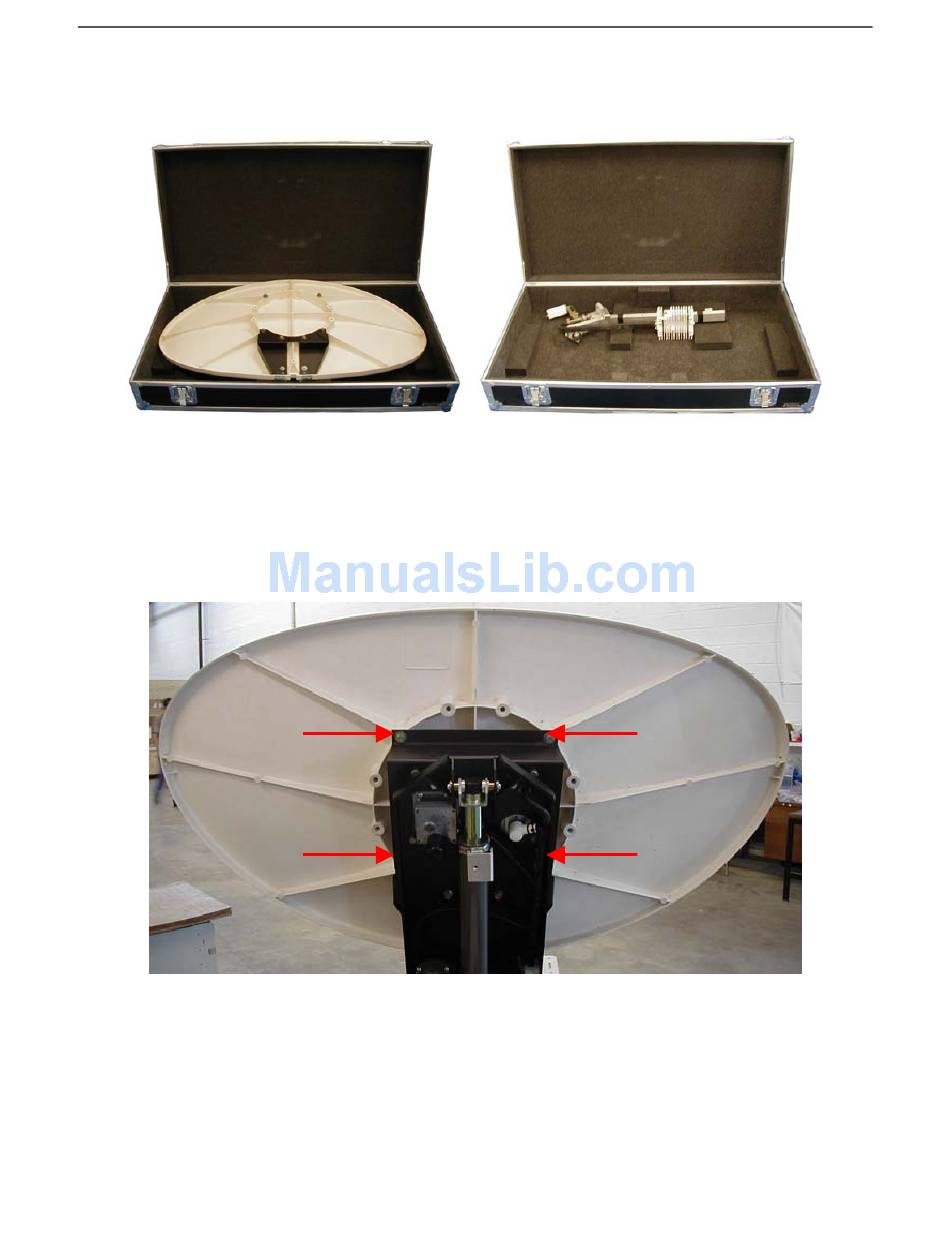

Fig. 54: Reflector (left) and Feed Arm (right) inside the Reflector Transportable Case
Remove the four (4) bolts from the back of the Reflector, locate the associated holes
5.
on the back of the Polarization Plate on the Mobile Platform and attach the Reflector
using a ½" (13mm) Wrench.
Fig. 55: Reflector Mounting Locations
