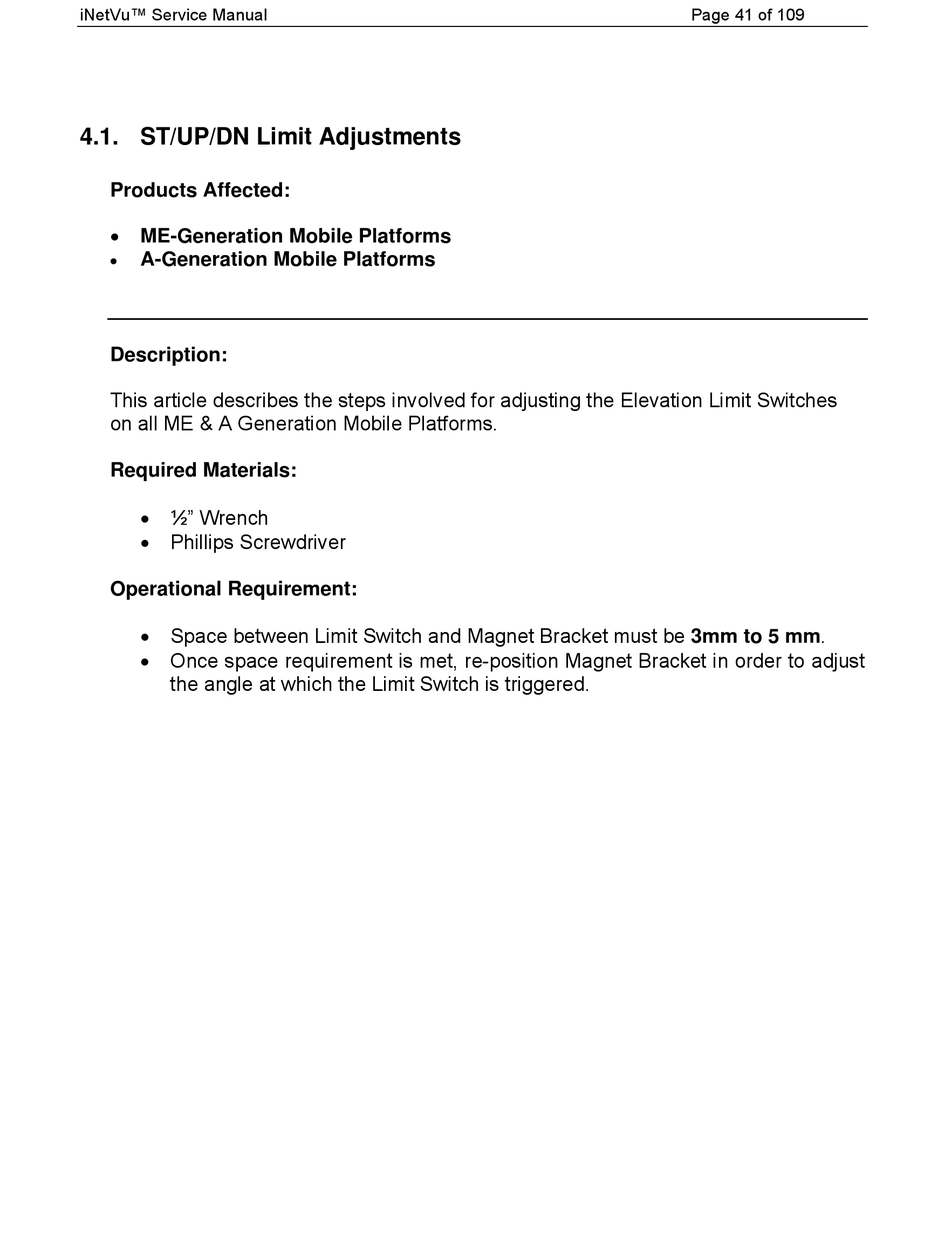

4.1. ST/UP/DN Limit Adjustments

Products Affected:
 ME-Generation Mobile Platforms

A-Generation Mobile Platforms
Description:
This article describes the steps involved for adjusting the Elevation Limit Switches
on all ME & A Generation Mobile Platforms.
Required Materials:
 ½" Wrench
 Phillips Screwdriver
Operational Requirement:
 Space between Limit Switch and Magnet Bracket must be 3mm to 5 mm.
 Once space requirement is met, re-position Magnet Bracket in order to adjust
the angle at which the Limit Switch is triggered.
