iNetVu™ Service Manual

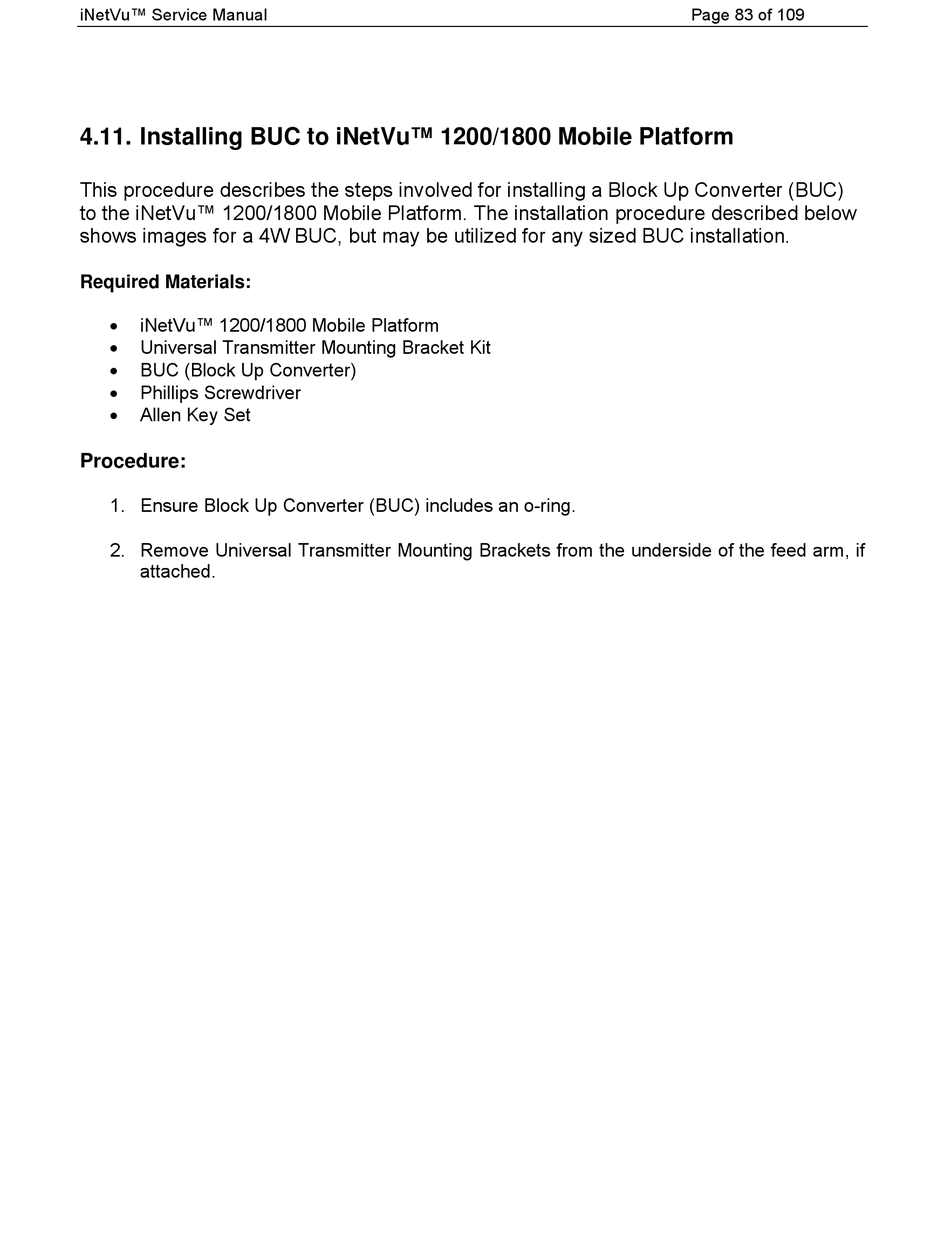

4.11. Installing BUC to iNetVu™ 1200/1800 Mobile Platform
This procedure describes the steps involved for installing a Block Up Converter (BUC)
to the iNetVu™ 1200/1800 Mobile Platform. The installation procedure described below
shows images for a 4W BUC, but may be utilized for any sized BUC installation.
Required Materials:
 iNetVu™ 1200/1800 Mobile Platform
 Universal Transmitter Mounting Bracket Kit
 BUC (Block Up Converter)
 Phillips Screwdriver
 Allen Key Set
Procedure:
1. Ensure Block Up Converter (BUC) includes an o-ring.
2. Remove Universal Transmitter Mounting Brackets from the underside of the feed arm, if
attached.
Page 83 of 109
