iNetVu™ Service Manual

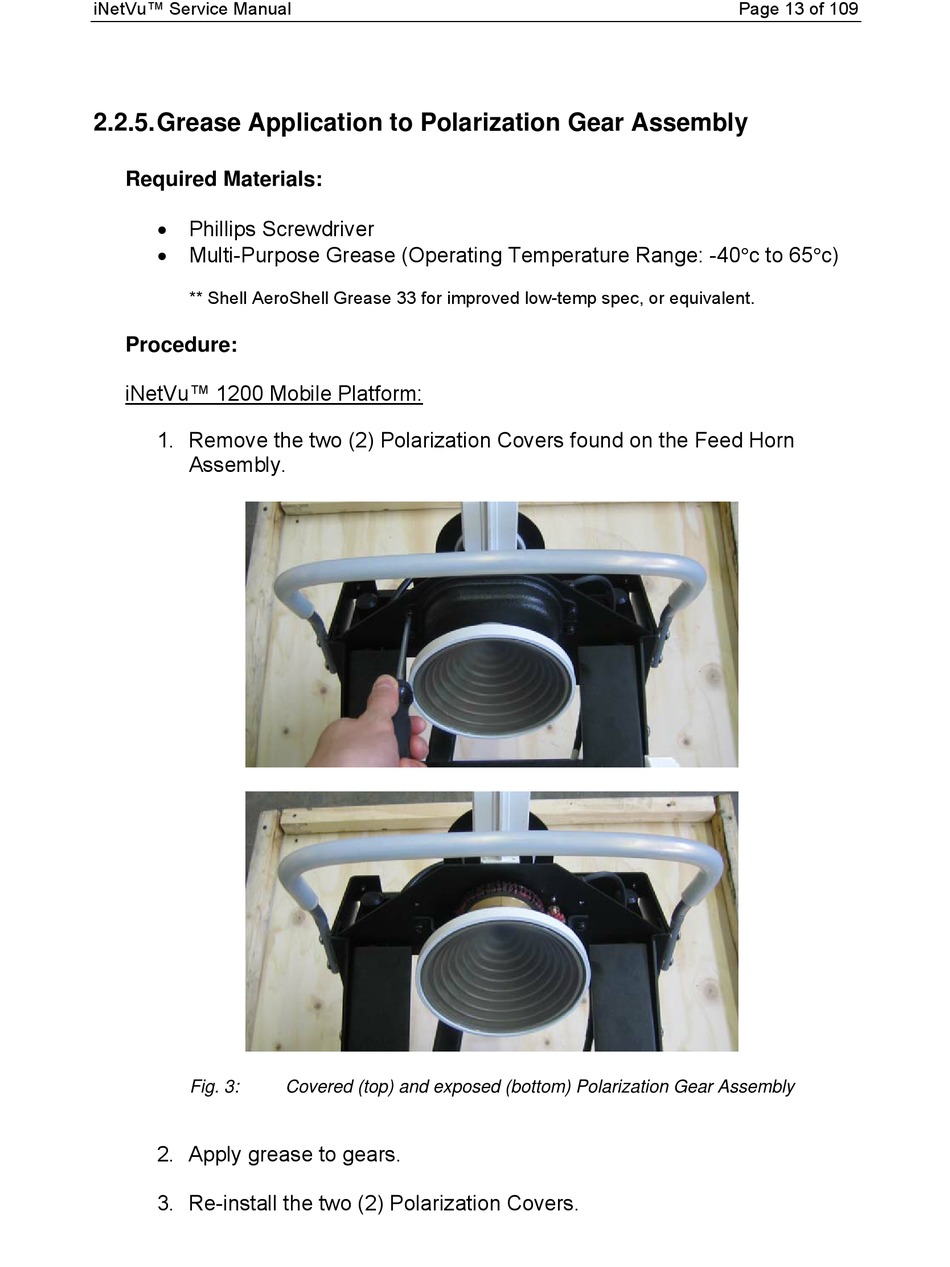

2.2.5. Grease Application to Polarization Gear Assembly

Required Materials:
 Phillips Screwdriver
 Multi-Purpose Grease (Operating Temperature Range: -40c to 65c)
** Shell AeroShell Grease 33 for improved low-temp spec, or equivalent.
Procedure:
iNetVu™ 1200 Mobile Platform:
1. Remove the two (2) Polarization Covers found on the Feed Horn
Assembly.
Fig. 3:
2. Apply grease to gears.
3. Re-install the two (2) Polarization Covers.
Covered (top) and exposed (bottom) Polarization Gear Assembly
Page 13 of 109
