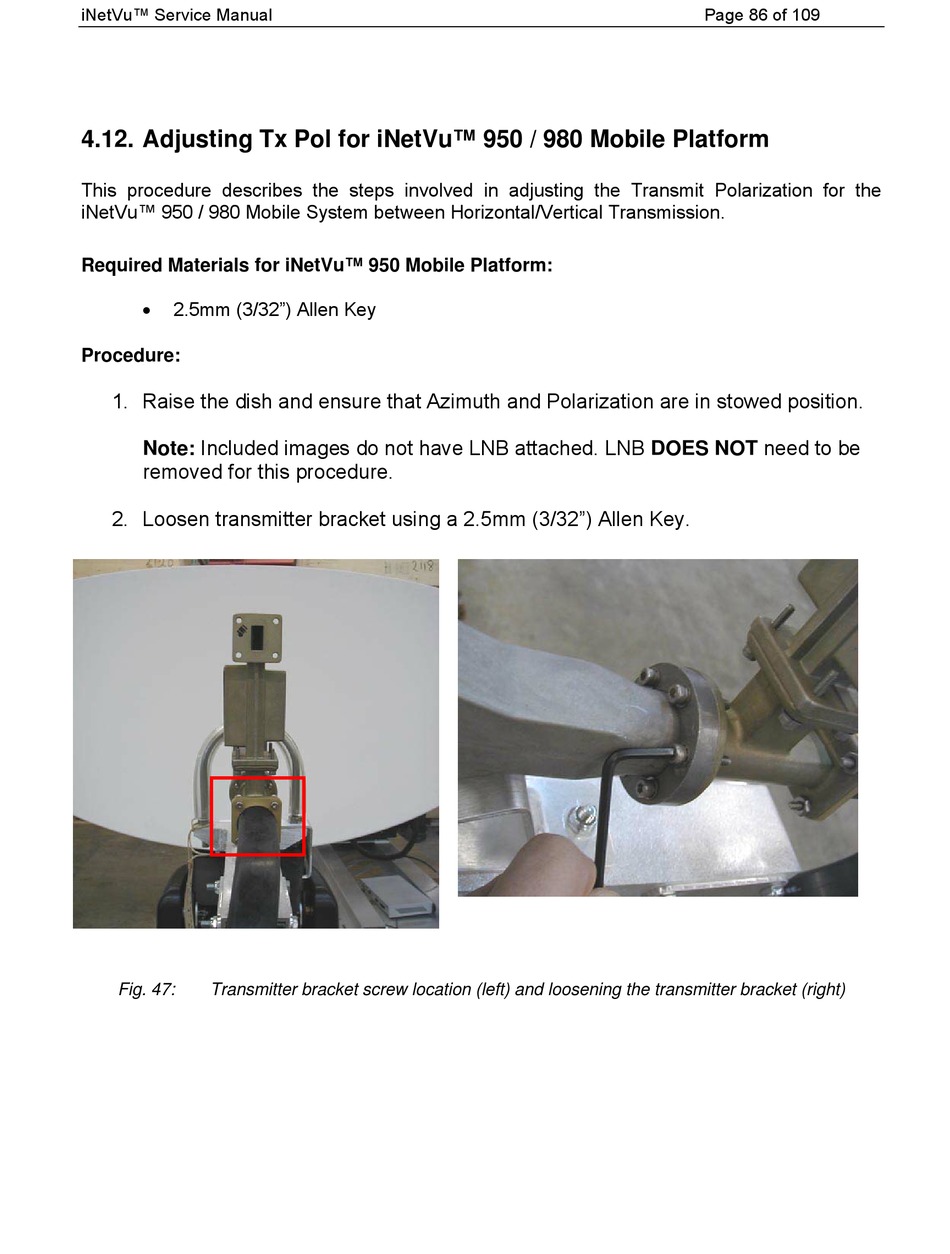

4.12. Adjusting Tx Pol for iNetVu™ 950 / 980 Mobile Platform
This procedure describes the steps involved in adjusting the Transmit Polarization for the
iNetVu™ 950 / 980 Mobile System between Horizontal/Vertical Transmission.
Required Materials for iNetVu™ 950 Mobile Platform:
 2.5mm (3/32") Allen Key
Procedure:
1. Raise the dish and ensure that Azimuth and Polarization are in stowed position.
Note: Included images do not have LNB attached. LNB DOES NOT need to be
removed for this procedure.
2. Loosen transmitter bracket using a 2.5mm (3/32") Allen Key.
Fig. 47: Transmitter bracket screw location (left) and loosening the transmitter bracket (right)
Page 86 of 109
