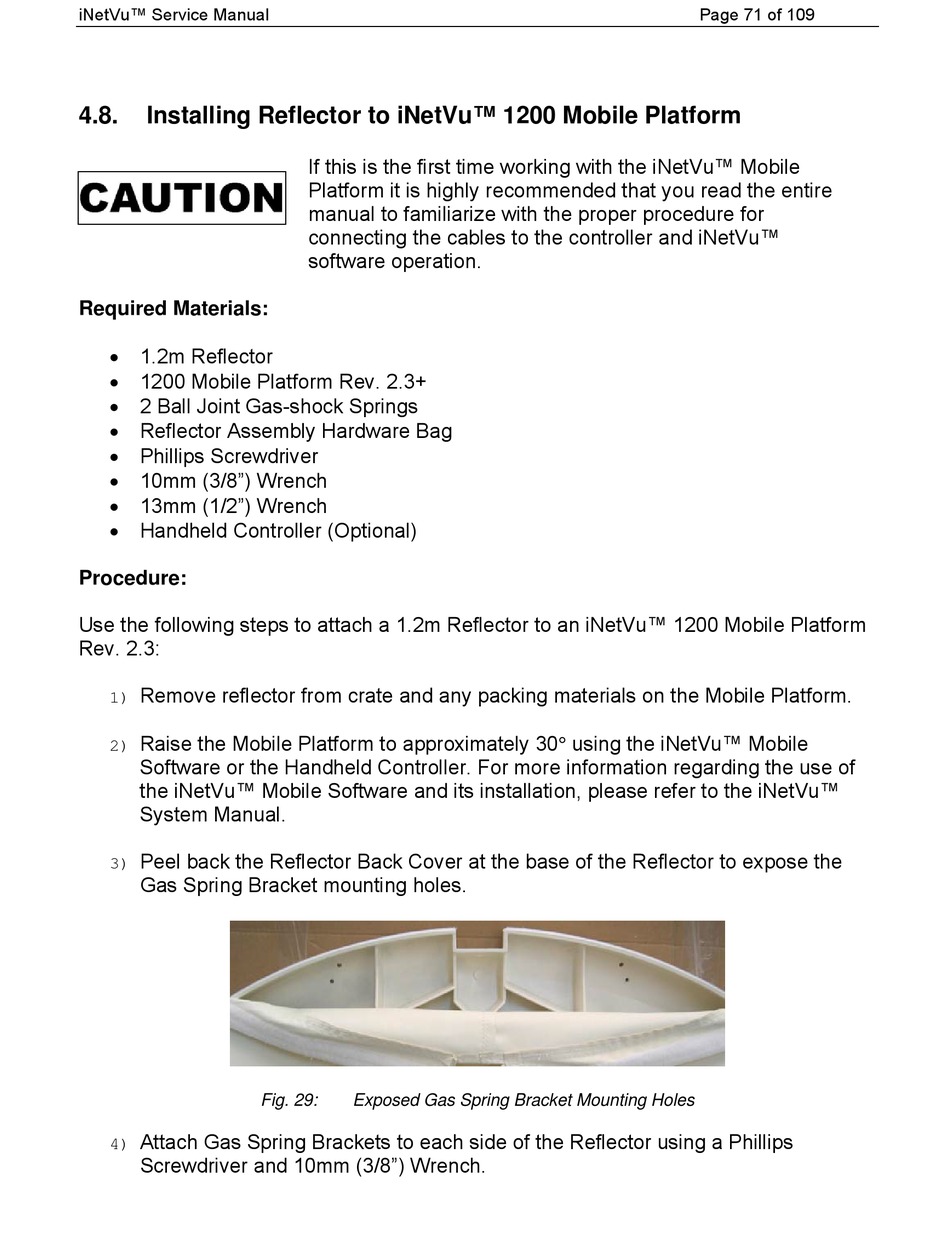

iNetVu™ Service Manual
4.8.
Installing Reflector to iNetVu™ 1200 Mobile Platform
Required Materials:
 1.2m Reflector
 1200 Mobile Platform Rev. 2.3+
 2 Ball Joint Gas-shock Springs
 Reflector Assembly Hardware Bag
 Phillips Screwdriver
 10mm (3/8") Wrench
 13mm (1/2") Wrench
 Handheld Controller (Optional)
Procedure:
Use the following steps to attach a 1.2m Reflector to an iNetVu™ 1200 Mobile Platform
Rev. 2.3:
Remove reflector from crate and any packing materials on the Mobile Platform.
1)
Raise the Mobile Platform to approximately 30 using the iNetVu™ Mobile
2)
Software or the Handheld Controller. For more information regarding the use of
the iNetVu™ Mobile Software and its installation, please refer to the iNetVu™
System Manual.
Peel back the Reflector Back Cover at the base of the Reflector to expose the
3)
Gas Spring Bracket mounting holes.
Attach Gas Spring Brackets to each side of the Reflector using a Phillips
4)
Screwdriver and 10mm (3/8") Wrench.
If this is the first time working with the iNetVu™ Mobile
Platform it is highly recommended that you read the entire
manual to familiarize with the proper procedure for
connecting the cables to the controller and iNetVu™
software operation.
Fig. 29:
Exposed Gas Spring Bracket Mounting Holes
Page 71 of 109
