By hand, compress the Gas Spring, and snap-on the thinner end of the Gas
13)
Spring to the Gas Spring Brackets on the Mobile Platform. Once this end is
snapped into place, re-insert clip.
Repeat Steps 12 and 13 for both Gas Springs.
14)
Congratulations! The 1.2m Reflector has been successfully installed on to
15)
an iNetVu™ 1200 Mobile Platform.

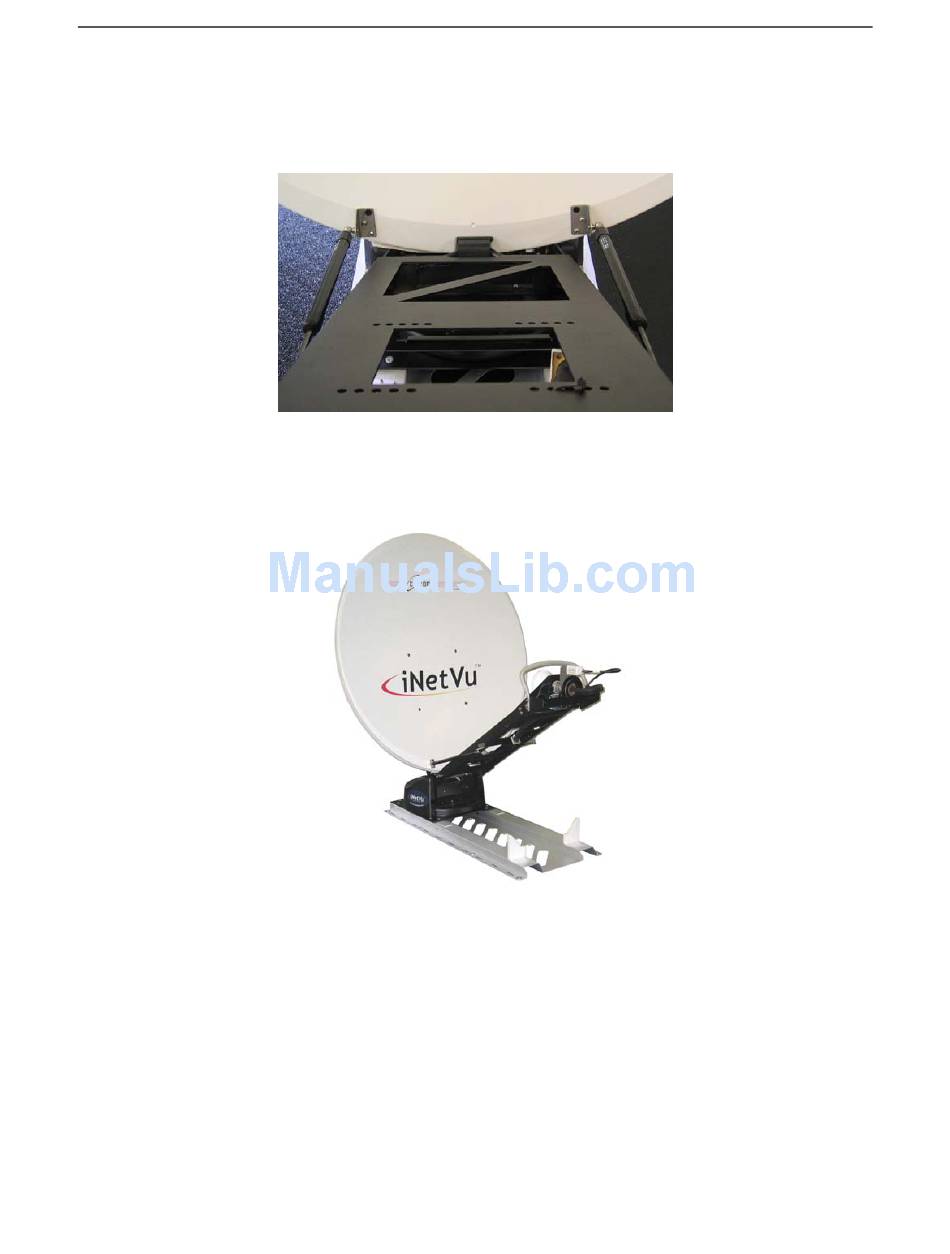

Fig. 35:
Assembled Gas Spring Assembly
Fig. 36:
Fully Assembled Reflector Assembly
