iNetVu™ Service Manual

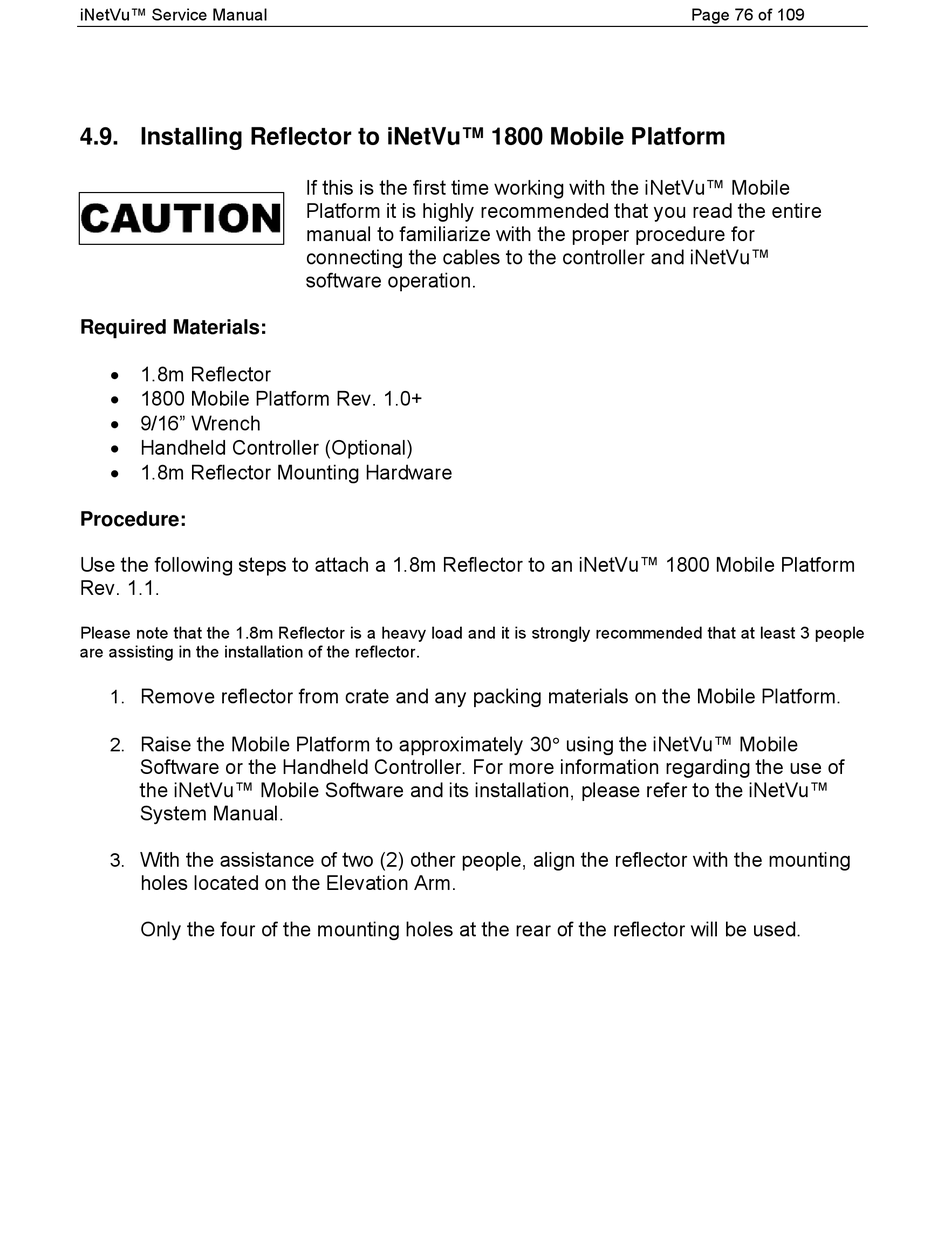

4.9. Installing Reflector to iNetVu™ 1800 Mobile Platform
Required Materials:
 1.8m Reflector
 1800 Mobile Platform Rev. 1.0+
 9/16" Wrench
 Handheld Controller (Optional)
 1.8m Reflector Mounting Hardware
Procedure:
Use the following steps to attach a 1.8m Reflector to an iNetVu™ 1800 Mobile Platform
Rev. 1.1.
Please note that the 1.8m Reflector is a heavy load and it is strongly recommended that at least 3 people
are assisting in the installation of the reflector.
Remove reflector from crate and any packing materials on the Mobile Platform.
1.
Raise the Mobile Platform to approximately 30 using the iNetVu™ Mobile
2.
Software or the Handheld Controller. For more information regarding the use of
the iNetVu™ Mobile Software and its installation, please refer to the iNetVu™
System Manual.
With the assistance of two (2) other people, align the reflector with the mounting
3.
holes located on the Elevation Arm.
Only the four of the mounting holes at the rear of the reflector will be used.
If this is the first time working with the iNetVu™ Mobile
Platform it is highly recommended that you read the entire
manual to familiarize with the proper procedure for
connecting the cables to the controller and iNetVu™
software operation.
Page 76 of 109
