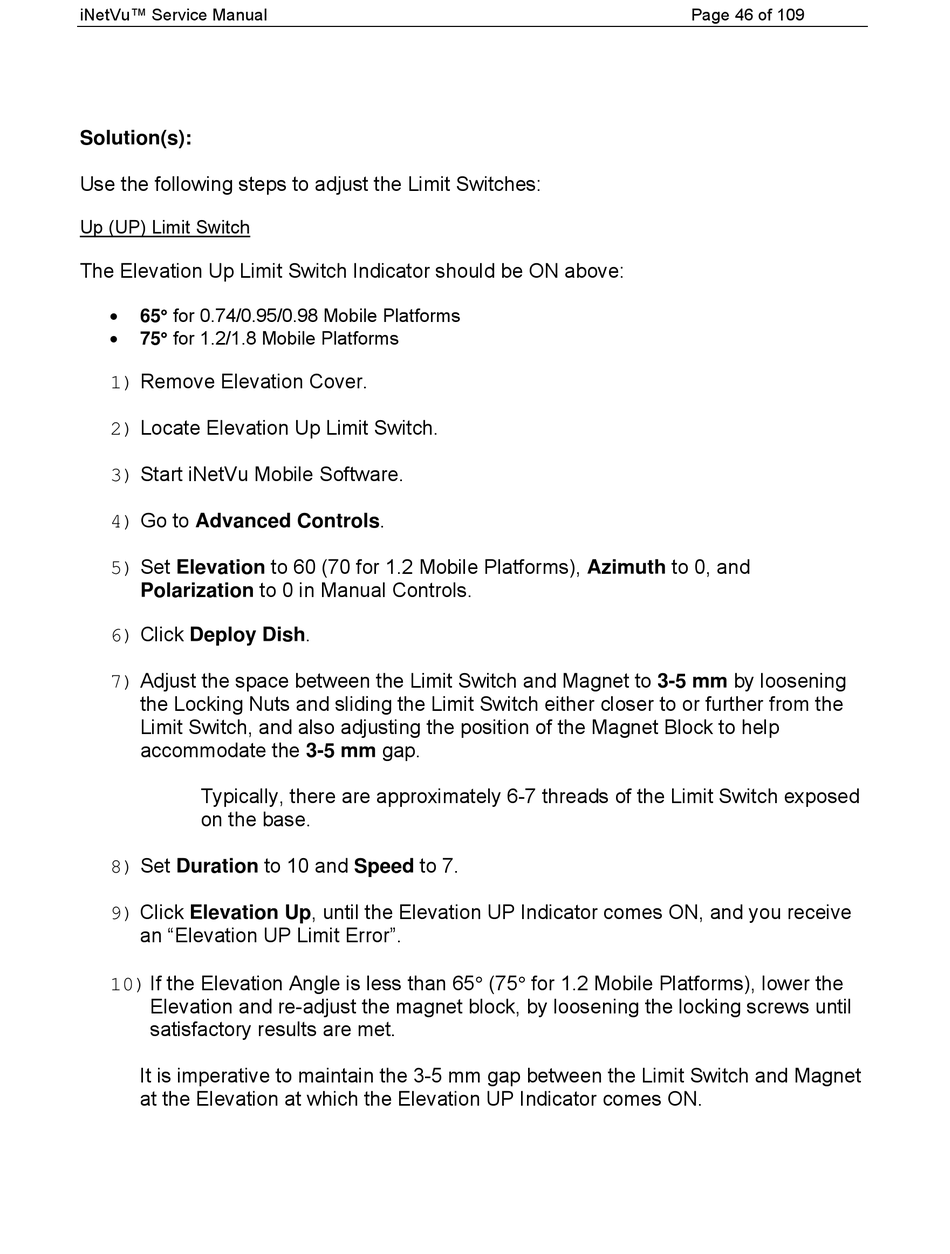

iNetVu™ Service Manual
Solution(s):
Use the following steps to adjust the Limit Switches:
Up (UP) Limit Switch
The Elevation Up Limit Switch Indicator should be ON above:
 65 for 0.74/0.95/0.98 Mobile Platforms
 75 for 1.2/1.8 Mobile Platforms
1) Remove Elevation Cover.
2) Locate Elevation Up Limit Switch.
3) Start iNetVu Mobile Software.
4) Go to Advanced Controls.
5) Set Elevation to 60 (70 for 1.2 Mobile Platforms), Azimuth to 0, and
Polarization to 0 in Manual Controls.
6) Click Deploy Dish.
7) Adjust the space between the Limit Switch and Magnet to 3-5 mm by loosening
the Locking Nuts and sliding the Limit Switch either closer to or further from the
Limit Switch, and also adjusting the position of the Magnet Block to help
accommodate the 3-5 mm gap.
Typically, there are approximately 6-7 threads of the Limit Switch exposed
on the base.
8) Set Duration to 10 and Speed to 7.
9) Click Elevation Up, until the Elevation UP Indicator comes ON, and you receive
an "Elevation UP Limit Error".
10) If the Elevation Angle is less than 65 (75 for 1.2 Mobile Platforms), lower the
Elevation and re-adjust the magnet block, by loosening the locking screws until
satisfactory results are met.
It is imperative to maintain the 3-5 mm gap between the Limit Switch and Magnet
at the Elevation at which the Elevation UP Indicator comes ON.
