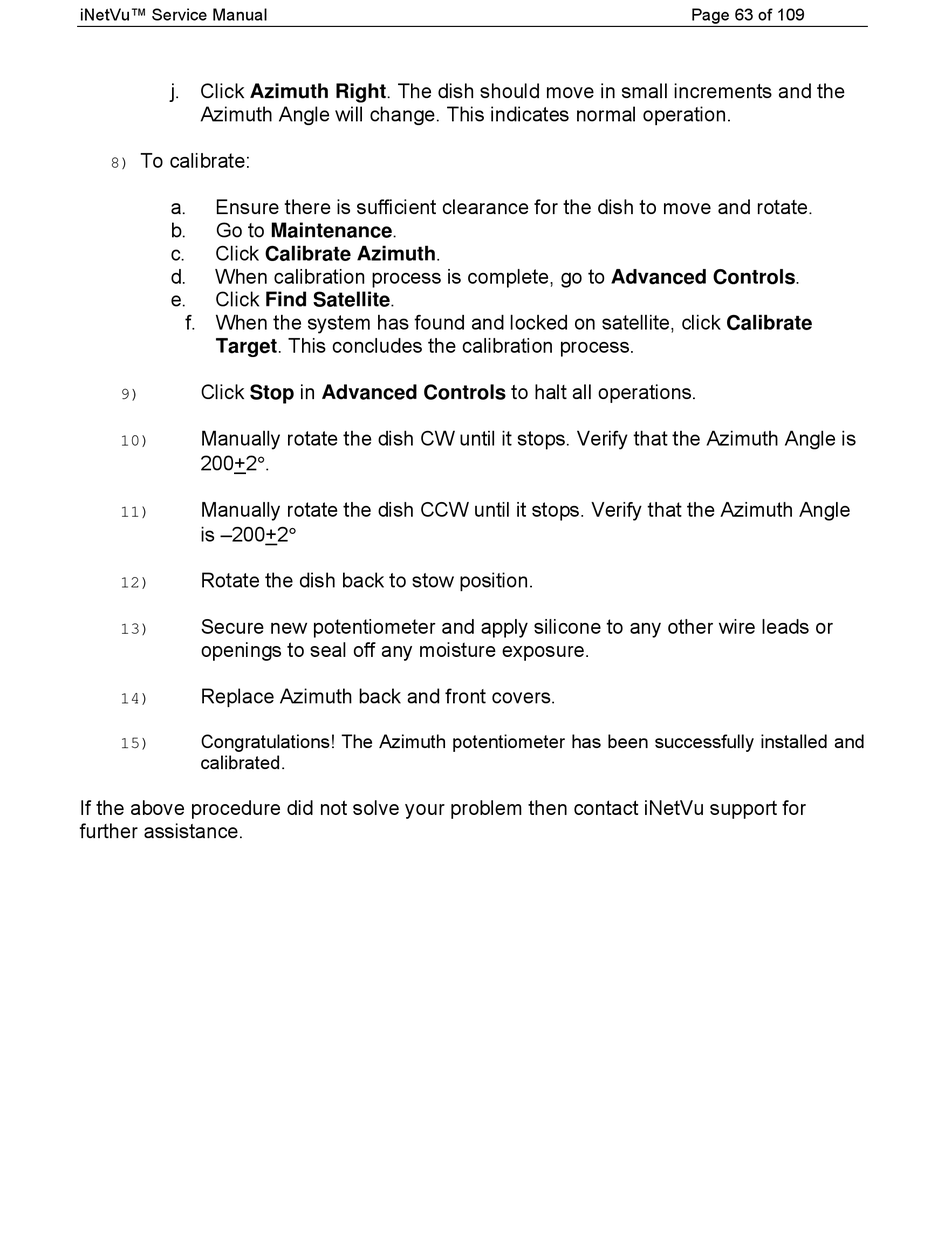

iNetVu™ Service Manual
j. Click Azimuth Right. The dish should move in small increments and the
Azimuth Angle will change. This indicates normal operation.
To calibrate:
8)
a. Ensure there is sufficient clearance for the dish to move and rotate.
b. Go to Maintenance.
c. Click Calibrate Azimuth.
d. When calibration process is complete, go to Advanced Controls.
e. Click Find Satellite.
f. When the system has found and locked on satellite, click Calibrate
Target. This concludes the calibration process.
Click Stop in Advanced Controls to halt all operations.
9)
Manually rotate the dish CW until it stops. Verify that the Azimuth Angle is
10)
200+2.
Manually rotate the dish CCW until it stops. Verify that the Azimuth Angle
11)
is –200+2
Rotate the dish back to stow position.
12)
Secure new potentiometer and apply silicone to any other wire leads or
13)
openings to seal off any moisture exposure.
Replace Azimuth back and front covers.
14)
Congratulations! The Azimuth potentiometer has been successfully installed and
15)
calibrated.
If the above procedure did not solve your problem then contact iNetVu support for
further assistance.
Page 63 of 109
