Mounting the Switching Transmitters

1.
DTP T EU 332, DTP T EU 232, DTP T MK 332, and DTP T MK 232 • Installation and Operation
Mount the mounting plate depending on the junction box model or European cable
channel system with the flanged edges pointing away from the junction box.
• For EU junction boxes, use four long screws to attach the mounting plate to the
junction box (see figure 4).
Wall Box
Mounting Plate

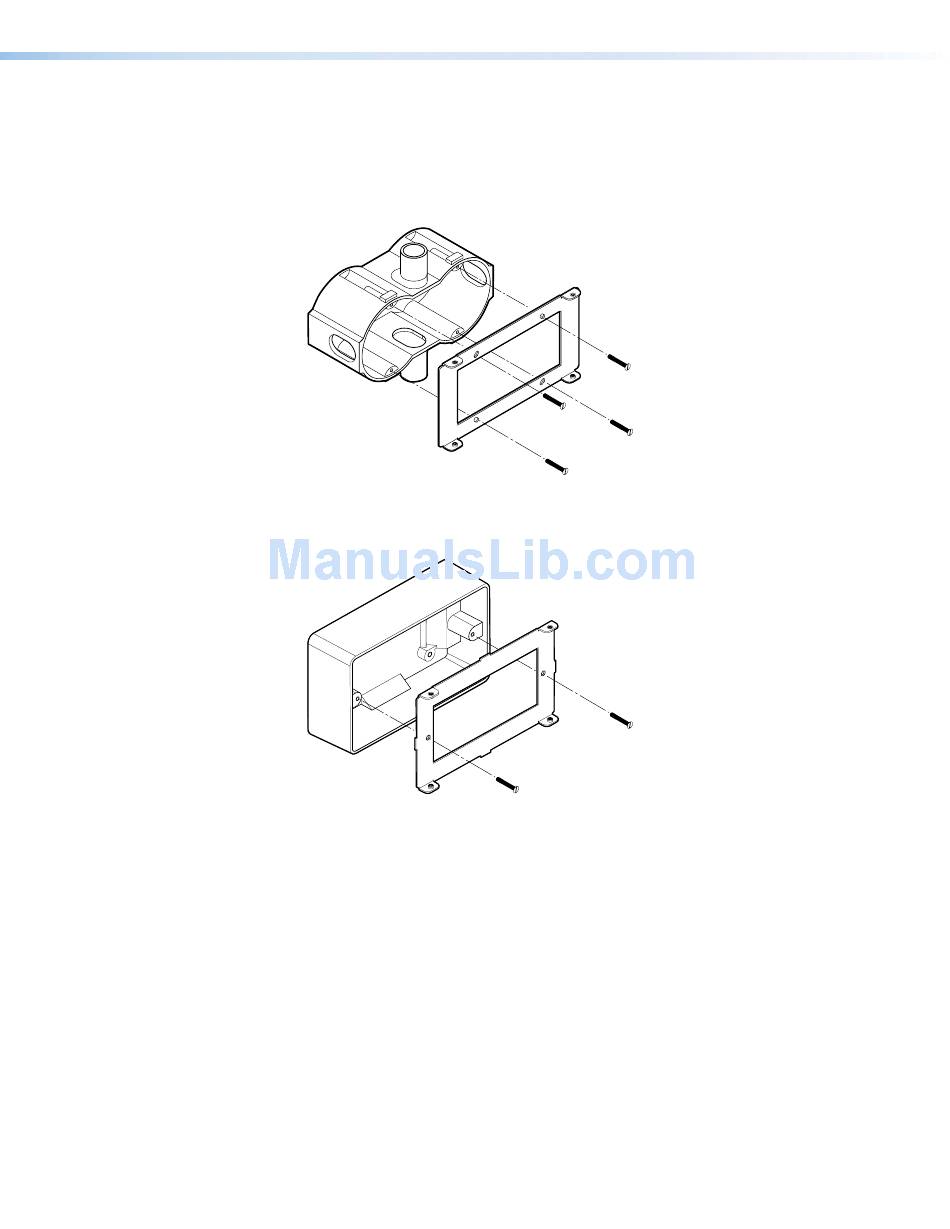

Figure 4. Mounting Plate Installation for the DTP T EU Units
• For MK junction boxes, use two long screws to attach the mounting plate to the
junction box (see figure 5).
Wall Box
Mounting Plate
Figure 5. Mounting Plate Installation for the DTP T MK Units
To install the adapter plate to a European cable channel system, refer to the
•
manufacturer of the European cable channel system for any additional equipment or
installation requirements.
9
