XTP T EU 202 and XTP T MK 202 • Setup Guide
This guide provides instructions for an experienced installer to install and connect the XTP T EU 202 or XTP T MK 202 into a junction box or
European cable channel system (referred to as a "Euro channel" in this guide). For junction boxes, the XTP T EU 202 fits into a two-gang European
junction box and the XTP T MK 202 fits into a two-gang MK junction box.
b cf
+ -
Tx Rx G Tx Rx Tx Rx G
RS-232 IR RS-232
POWER
12V
OVER XTP REMOTE
0.8A MAX
Rear
Throughput and Control Connections
a
XTP connector
b
RS-232 and IR Over XTP connector
c
Remote RS-232 connector
d
USB connector

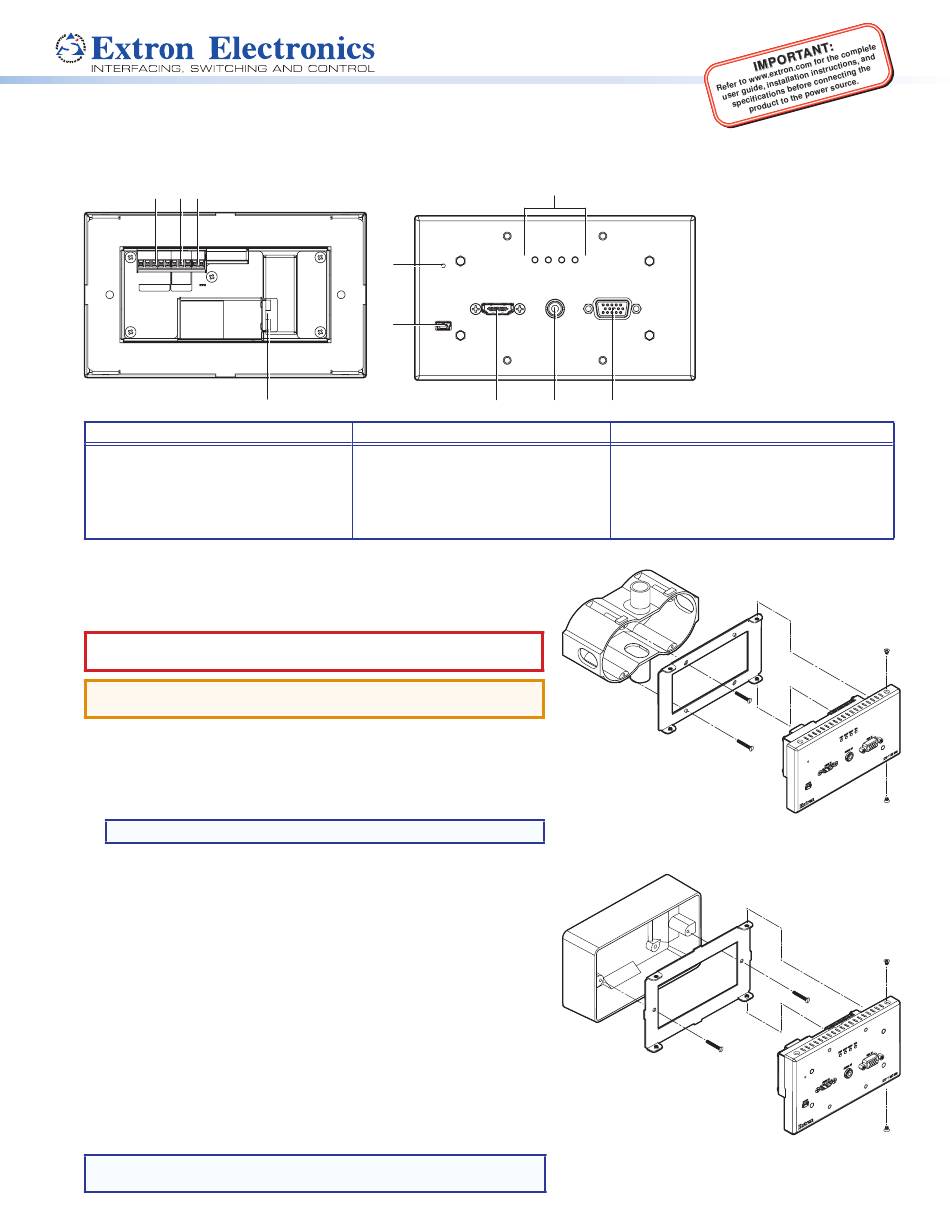

Figure 1. XTP T MK 202 and XTP T EU 202 Rear (Left) and Front (Right) Panel Features (XTP T MK 202 Shown)

Installation

Planning
CAUTION:
Risk of personal injury. Failure to check these items may
result in personal injury.
ATTENTION:
Failure to check the items listed below may result in
property damage.
…
Check that the installation meets the building, electrical, and safety codes.
…
Ensure there is enough space in the junction box or Euro channel for the
XTP transmitter, cables, and rear panel connectors when the XTP transmitter is
completely connected and mounted (see the XTP T EU 202 and XTP T MK 202
User Guide for more details).
NOTE:
The depth of the transmitters is 1.4 inches (35.42 mm).
Mounting and Cabling
For additional mounting details and considerations, see the XTP T EU 202 and
XTP T MK 202 User Guide at www.extron.com).
Step 1 — Install the junction box or Euro channel
Install the appropriate junction box or Euro channel according to the requirements
of the manufacturer (refer to the manufacturer for more details). This may require
creating an opening in the mounting surface. If so, consider the following:
•
For accuracy, use a template or the mounting enclosure to mark cut guidelines.
•
To avoid making an opening too big, cut inside the marked guidelines.
Step 2 — Install the mounting plate
For the XTP T EU 202, use four long mounting screws to attach the mounting plate
to the junction box (see figure 2).
For the XTP T MK 202, use two long mounting screws to attach the mounting plate
to the junction box (see figure 3).
NOTE:
For installation into a Euro channel, refer to the manufacturer of the
Euro channel for any additional installation requirements.
e
CONFIG
d
Extron
Front
a
Power Connection and Reset Button
e
Reset button
f
DC power connector
j
IMPORTANT:
Refer to www.extron.com for the complete
user guide, installation instructions, and
PWR HDCP HDMI VGA
specifications before connecting the
product to the power source.
VGA IN
AUDIO IN
HDMI IN
XTP T MK 202
g h i
Input Connections and LED Indicators
g
HDMI connector
h
Analog audio input connector
i
15-pin HD connector
j
LED indicators
Wall Box
Mounting Plate
Figure 2.
Wall Box
Mounting Plate
Figure 3.
2
Install the
mounting
plate.
4
Extron
Mount the
XTP T EU 202
device.
XTP T EU 202 Installation Diagram
2
Install the
mounting
plate.
4
Extron
Mount the
XTP T MK 202
device.
XTP T MK 202 Installation Diagram
